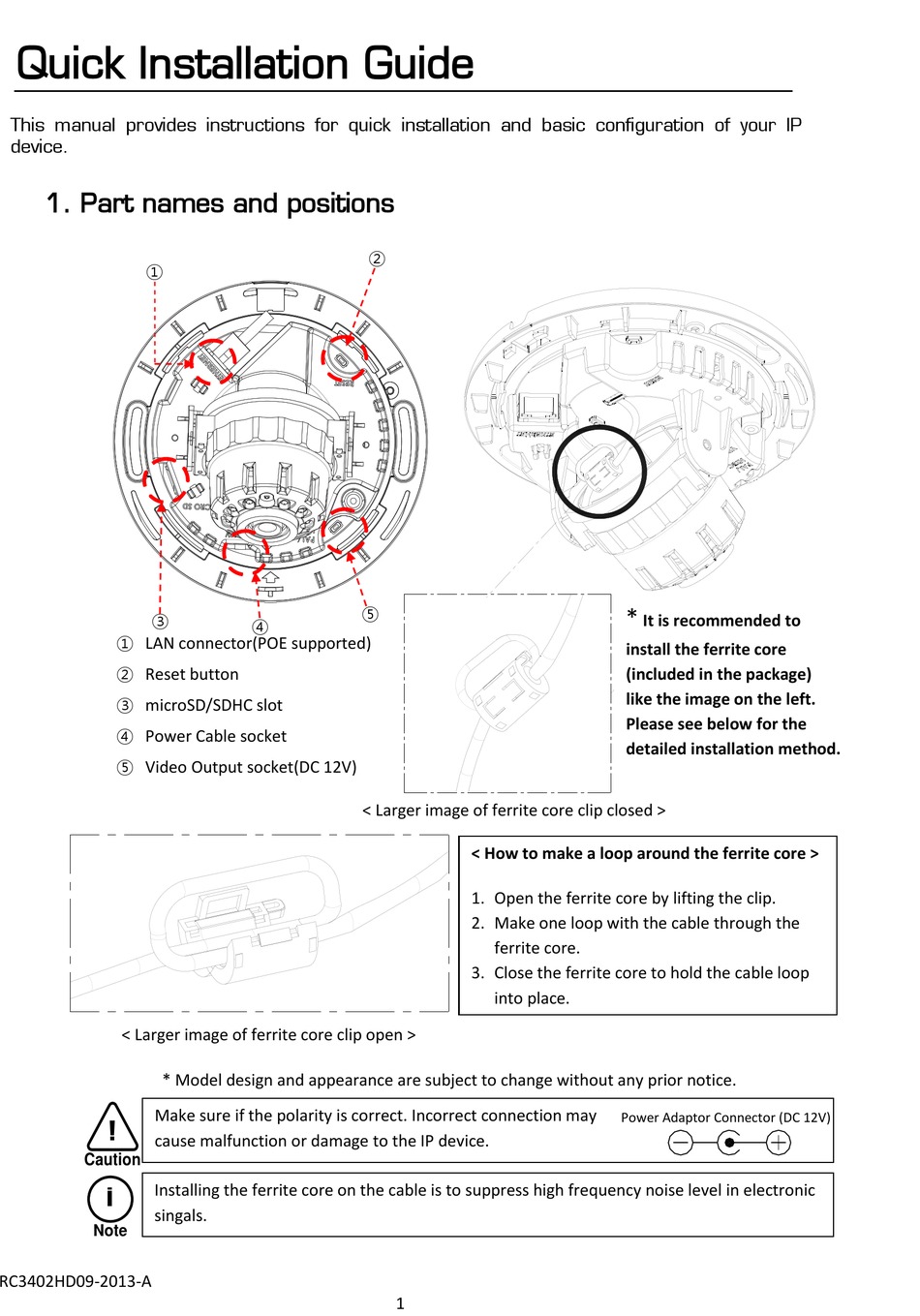

Quick Installation Guide
This manual provides instructions for quick installation and basic configuration of your IP
device.
1. Part names and positions
①
③
① LAN connector(POE supported)
② Reset button
③ microSD/SDHC slot
④ Power Cable socket
⑤ Video Output socket(DC 12V)
< Larger image of ferrite core clip open >
* Model design and appearance are subject to change without any prior notice.
Make sure if the polarity is correct. Incorrect connection may
!
cause malfunction or damage to the IP device.
Caution
i
Installing the ferrite core on the cable is to suppress high frequency noise level in electronic
singals.
Note
RC3402HD09-2013-A
②
⑤
④
< Larger image of ferrite core clip closed >
1
*
It is recommended to
install the ferrite core
(included in the package)
like the image on the left.
Please see below for the
detailed installation method.
< How to make a loop around the ferrite core >
1. Open the ferrite core by lifting the clip.
2. Make one loop with the cable through the
ferrite core.
3. Close the ferrite core to hold the cable loop
into place.
Power Adaptor Connector (DC 12V)
Advertisement
Table of Contents
Related Manuals for Riva RC3402HD-6211R
Summary of Contents for Riva RC3402HD-6211R
-
Page 1: Quick Installation Guide
Quick Installation Guide This manual provides instructions for quick installation and basic configuration of your IP FUNCTION device. 1. Part names and positions ② ① ⑤ ③ ④ It is recommended to ① LAN connector(POE supported) install the ferrite core ②... - Page 2 2. Install IP device 천정형 1) Place the installation template included in the package on the desired installation surface. 2) Drill holes on correct spots based on the template paper, and insert anchor blocks into the holes. 3) Remove the dome cover with the opener included in the package.
- Page 3 Caution More Information To learn more about using other features of your devices, refer to the manuals as “RIVA Web Interface Manual Full HD Series” or “VCAsys Manual Full HD Series”, which is available on www.rivatech.de homepage.
-
Page 4: Set Up Network Environment
4. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. Be sure that the device and PC are on a same area network before running the installation. - Page 5 IPAdminTool IPAdminTool and the manual can download from www.rivatech.de homepage. IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. To modify the device’s default IP address for customized network area;...
-
Page 6: View Video On Web Page
5. View video on web page Once the device’s proper IP address has been identified, type the URL in a web browser to access the camera. At first time access, installation window may pop up. 1. When the browser asks to install the AxUMF software, click Install to proceed. 2. -
Page 7: Factory Default
Please do not hold for more than 2 seconds. Otherwise, the camera may be switched to its Factory Default settings. Caution 8. Factory Default Resetting the device back to the factory default will initialize all parameters including the IP address back to the factory defaults. To reset to the factory default: 1. - Page 8 3. Check if the webpage appears normal. There is another method to update firmware, which is using IPAdminTool. Please refer to ‘IPAdminTool User’s Manual.pdf’ for the detailed Note procedure. If your device is still at safe mode after trying to update firmware, please contact your local agency to get further assistance.
- Page 9 Hexadecimal-Decimal Conversion Table Refer to the following table when you convert the MAC address of your device to IP address. RC3402HD09-2013-A...
- Page 10 RC3402HD09-2013-A...
