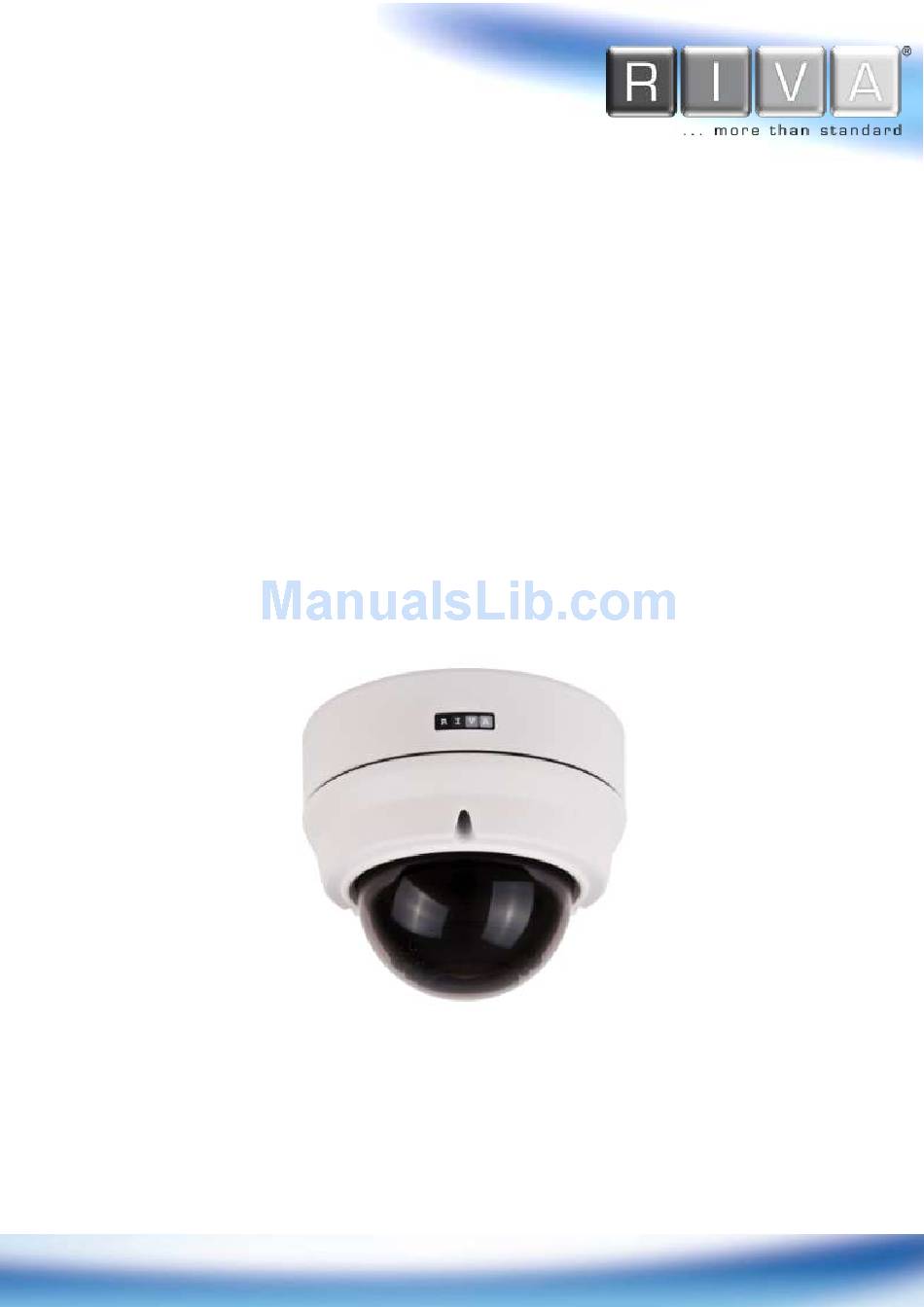

Page 1: Installation Guide
RC3502HD-5311IR Installation Guide www.rivatech.de... -
Page 2: Information To User
INFORMATION TO USER CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). CONTACT QUALIFIED SERVICE PERSONNEL FOR INTERNAL PARTS. This symbol is intended to alert the user the presence of un- insulated “dangerous voltage”... -
Page 3: Table Of Contents
RC Series RC3502HD-5311IR Installation Guide Table of Contents 1. FEATURES ................5 2. PACKAGE CONTENTS ..............7 3. PART NAMES ................8 4. INSTALLATION ............... 10 4.1. Installation Template ..............11 4.3. Setting the Image Attribute ............13 5. CONNECTIONS ..............14 6. - Page 4 RC Series RC3502HD-5311IR Installation Guide APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE ..... 29 REVISION HISTORY ..............30 www.rivatech.de...
-
Page 5: Features

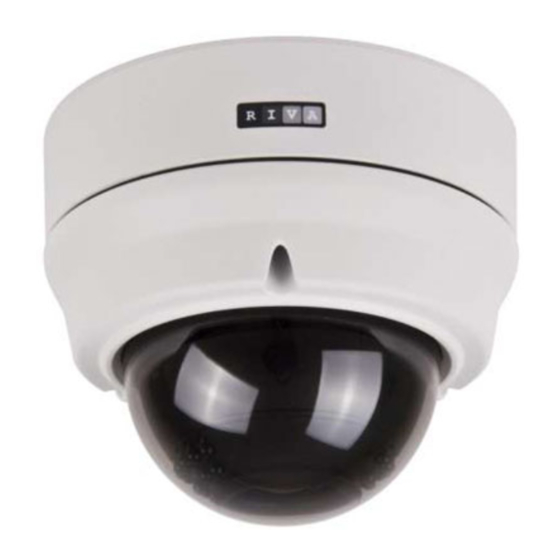

1. FEATURES Camera Full HD outdoor dome IP camera (Vandal proof) High quality compression in real time streaming 1/2.7” High Quality CMOS Image Sensor True Day / Night (ICR) Improvement of color rolling suppression Remote Zoom/Focus Control(One Click AF) ... - Page 6 Additional Features Micro SD card support PoE support (Camera and Fan) Built-in Video Content Analysis Internal fan and heater (heater function only with external power supply) IP66 certified SDK (Software Development Kit) provided * When VCA is activated, frame rate is limit to max15fps@1080p. Limitations are based on V.1.5.0 firmware release and could be changed without notice.
-
Page 7: Package Contents
2. PACKAGE CONTENTS Unpack carefully and handle the equipment with care. The packaging contains: Camera DC power adaptor DC Jack Cable 9-pin and 2-pin terminal block Video out cable Screws and anchors Installation template Hex wrench driver Quick installation guide Silicon waterproof band Clamping core To prevent electromagnetic interference... -
Page 8: Part Names
3. PART NAMES * Models herein and their appearance are subject to change without any prior notice. 1. Fan The fan and heater (underneath the black panel) are implemented for controlling temperature and moisture of the internal device. 2. - Page 9 4. Video output, audio and IO terminal connector A 9-pin terminal block is included in the device package. Connect this terminal block into this connector for cable connection of video output, audio input/output and digital input/output. Video out is used only for installation and works for 3 minutes when PAL/NTSC button is pushed.
-
Page 10: Installation
4. INSTALLATION 1) Place the installation template (paper) that is included in the package on the desired installation surface. 2) Drill three holes in correct positions based on the template paper, and insert anchor blocks into the holes. 3) Place the waterproof silicon band on the bottom plate of the device and make it align with screw holes. -
Page 11: Installation Template
4.1. Installation Template allation template Installation template image’s size scale in this installation guide is not 1:1. The correct-size template design paper can be found inside the Caution package separately. www.rivatech.de... - Page 12 4.2. Setting the Lens Position Instruction below describes how to set the lens positions and manually adjust zoom and focus. 1) Remove the dome cover. 2) Set the lens position by rotating the camera gimbal; to pan, rotate the reinforced lower body of the gimbal;...
-
Page 13: Setting The Image Attribute
4.3. Setting the Image Attribute Through the camera’s webpage, users can configure image settings. The camera image’s brightness, contrast, saturation and sharpness are adjustable through the image settings. (Setup > Video & Audio > Camera). www.rivatech.de... -
Page 14: Connections
5. CONNECTIONS N / A N / A N / A N / A VIDEO AUDIO DC12V ETHERNET MICRO SD N / A N / A 1 Audio input/output The camera has a mono audio input and a mono audio output. Due to low audio output power, an amplified speaker is recommended for enhanced sound (Do not connect a N / A N / A... - Page 15 Do not exceed the maximum input voltage or relay rate. Caution Internal +3.3V Internal Output of Output of Sensor Sensor Relay Type Voltage Type 3 Alarm (DO) connection Only the relay type is supported. Relay Rating: Max 24VDC 50mA Do not exceed the maximum relay rating. Caution Internal Device...
- Page 16 4 Video input/output The camera provides 1 video out Video Black 5 LAN connection This is a RJ45 LAN connector for 10/100 Base-T Ethernet. Connect a LAN cable. Green LED Orange LED When the device is connected, the orange LED stays on while green LED continues to blink.
-
Page 17: Configuration
6. CONFIGURATION 6.1.Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. Be sure that the device and PC are on a same area network before running the installation. -
Page 18: Custom Ip Environment
2. Start the Microsoft® Internet Explorer web browser and enter the address of the device. 3. Web streaming and device configurations are supported through ActiveX program. When the ActiveX installation window appears, authorize and install the ActiveX. 6.1.2. Custom IP Environment IPAdminTool and the manual are provided on USB stick or can download from homepage. - Page 19 To modify the device’s default IP address for customized network area; 1. Find the device from the IPAdminTool’s list and highlight the device’s name. 2. Right-click the mouse and select “IP Address”; IP Setup window appears. Give new unique IP address in PC environment Info last two sets and mirror other information in other boxes...
-
Page 20: View Video On Web Page
6.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. root / pass The default username and password is The browser asks to install the ActiveX. Click Allow. 2. Setup.exe installation link or pop-up window appears, depends on Microsoft® Internet Explorer version. - Page 21 3. Follow the instructions of the dialog boxes and complete the installation. Once the installation is complete, start the web browser again and check if video stream is displayed in the main view frame. This software requires the Microsoft XML Parser V6 or higher. If “...
-
Page 22: View Video Using Ipadmin Tool
6.2.1. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. IPAdminTool is provided on USB stick or can download from homepage. www.rivatech.de 1. From the IPAdminTool’s product list, select the device by highlighting it. 2. -
Page 23: Reset
6.3. Reset 1. Push the Reset button and hold for 1~2 seconds. 2. Wait for the system to reboot. 6.4. Factory Default If you reset your device to the factory default setting, all parameters including the IP address will be initialized. To proceed back to the Factory Default reset: 1. -
Page 24: Summary
APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/2.7” 1080p CMOS Effective 1920x1080 CMOS Pixels Scanning Progressive scanning system Resolution 1920 x 1080 ELECTRIC Min. Color: 0.5 lux, F1.2 Illumination BW: 0 lux (IR LED ON) AGC Control Auto Vari-Focal, Lens Remote Zoom/Focus Control(One Click AF)F1.2... -
Page 25: Electrical Characteristics
Electrical Characteristics Power Source DC 12V / PoE IEEE802.3af (Class 0) 1.0A @ DC12V / 12W (Heater Off / LED On) Power Consumption 1.8A @ DC12V / 21.6W (Heater On / LED On) Video Output 1 Vp-p, 75Ω, Composite Audio Input Linein, 1.43Vp-p(Min 1.35Vp-p, max 1.49 Vp-p), 39 KΩ... -
Page 26: Appendix (B): Power Over Ethernet
APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over- Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables. The IEEE 802.3af-2003 standard allows up to 15.4 W power to device. -
Page 27: Power Classification
Power classification The PoE Power Class supported by the IP device is Class 0. Class Usage Minimum Power Levels Maximum Power Levels Output at the PSE at the Powered Device Default 15.4W 0.44 to 12.95W Unlike the other way, disconnecting PSE or PoE doesn’t reboot the device as long as a power adaptor is connected. -
Page 28: Appendix (C): Dimensions
APPENDIX (C): DIMENSIONS (Unit: mm) www.rivatech.de... - Page 29 APPENDIX (D): HEXADECIMAL- DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. www.rivatech.de...
- Page 30 REVISION HISTORY MAN# DATE(M/D/Y) Comments 01A.01 05/10/2012 First release version 01A.02 06/01/2012 Power consumption, illumination variable update 01A.03 06/12/2012 Video, PAL/NTSC description update 01A.04 06/25/2012 DI/DO specification corrected 01A.05 07/03/2012 Supporting protocol revised. (removed SOCK and SSH) 01A.06 07/04/2012 Reset/Factory reset description updated www.rivatech.de...
