Summary of Contents for Riva RC302SV-5117

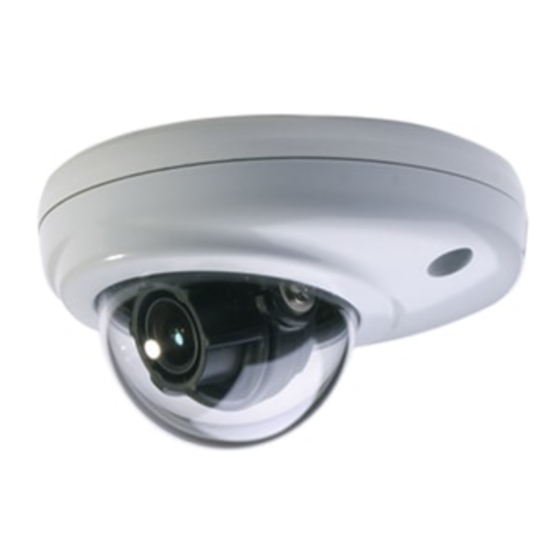

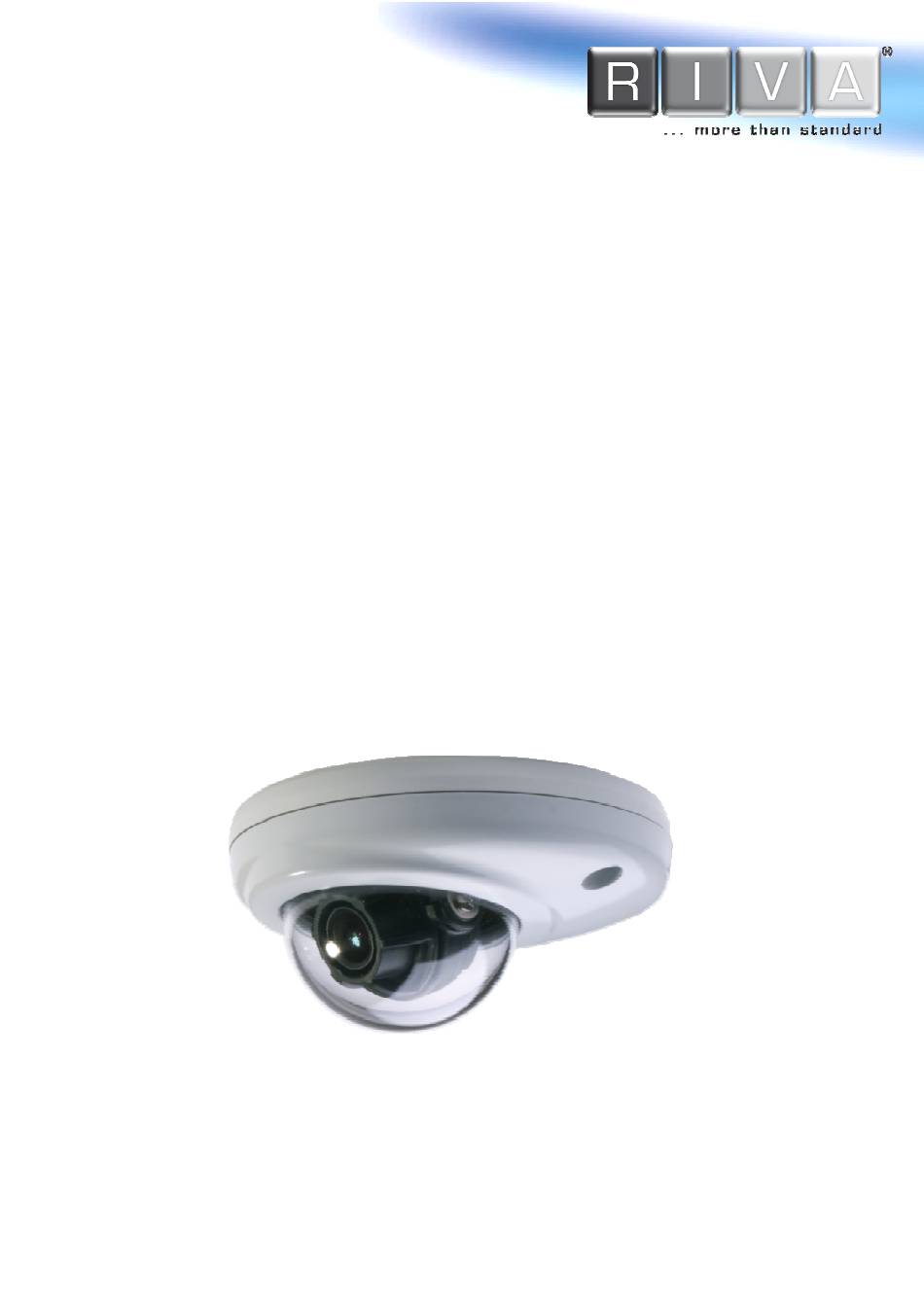

- Page 1 RC302SV-5117 Installation Guide www.blick-store.de...
- Page 2 INFORMATION TO USER CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). CONTACT QUALIFIED SERVICE PERSONNEL FOR INTERNAL PARTS. This symbol is intended to alert the user the presence of un-insulated “dangerous voltage”...
-
Page 3: Table Of Contents
Table of Contents 1. FEATURES ..................4 2. PACKAGE CONTENTS ..............5 3. PART NAMES ................6 4. INSTALLATION ................7 4.1. Installation Template ................8 4.2. Manual adjustment for 3-axis movements ..........9 4.3. Setting the Image Attribute ..............9 5. -
Page 4: Features
1. FEATURES Camera • Full HD Ultra Mini IP Camera • High quality compression in real time streaming • 1/2.7” High Quality CMOS Image Sensor • Digital Day / Night and digital WDR • Vandal Proof (IK09) Streaming • Dual streaming mode •... -
Page 5: Package Contents
2. PACKAGE CONTENTS The package contains main camera, DC power adaptor, DC jack cable, 9-pin and 2-pin terminal blocks, video-out cable, screws, anchors, hex wrench driver, and clamping cores. Unpack carefully and handle the equipment with care. Camera Screws and anchors Quick installation guide T10 Security Torx L-Key x 1 White Plug x 2... -
Page 6: Part Names
3. PART NAMES * Models herein and their appearance are subject to change without any prior notice. 1 LAN connector This is a RJ45 LAN connector for 10/100 Base-T Ethernet. Since the power of the device is provided only over PoE, please notice to use PoE switch or PoE Injector. -
Page 7: Installation
4. INSTALLATION 1) Place the installation template (paper) that is included in the package on the desired installation surface. 2) Drill two holes in correct positions based on the template paper, and insert anchor blocks into the holes. 3) Place the camera body and match two alignment holes with two anchor blocks. -
Page 8: Installation Template
4.1. Installation Template Installation template image’s size scale in this installation guide is not 1:1. The correct-size template design paper can be found inside the Caution package separately. www.blick-store.de... -
Page 9: Manual Adjustment For 3-Axis Movements
4.2. Manual adjustment for 3-axis movements B. Pan the lens with C. Rotate the lens A. Tilt the lens with reinforced lower with upper lens shell horizontal platform body Adjust the lens to the desired position by manually moving its upper lens shell, reinforced body or horizontal platform in the following directions. -
Page 10: Connections
5. CONNECTIONS www.blick-store.de... -
Page 11: Configuration
6. CONFIGURATION 6.1. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. Be sure that the device and PC are on a same area network before running the installation. -
Page 12: Custom Ip Environment
2. Start the Microsoft® Internet Explorer web browser and enter the address of the device. 3. Web streaming and device configurations are supported through ActiveX program. When the ActiveX installation window appears, authorize and install the ActiveX. 6.1.2. Custom IP Environment IPAdminTool and the manual can download from homepage. - Page 13 Give unique address in last two sets Info PC environment 3. In the IP Setup’s window, information under ‘Local Network information’ displays the user/PC’s network area information. Those information need to be incorporated to the IP Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP Address, which are to be the unique numbers for the device.
-
Page 14: View Video On Web Page
6.2. View video on web page Once the device’s proper IP address has been identified, type the URL in a web browser to access the camera. At first time access, installation window may pop up. 1. When the browser asks to install the AxUMF software, click Install to proceed. 2. - Page 15 6.2.1. Access through IP Admin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. IPAdminTool and the manual can download from homepage. www.rivatech.de 1. From the IPAdminTool’s product list, select the device by highlighting it. 2.
-
Page 16: Factory Default
Password: pass More Information To learn more about using other features of your devices, refer to the manuals as “RIVA Web Interface Manual Full HD Series” or “VCAsys Manual Full HD Series”, which is available on homepage. www.rivatech.de www.blick-store.de... -
Page 17: Summary
APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/2.7” 1080p CMOS Effective Pixels 1920x1080 CMOS Scanning Progressive scanning system Resolution 1920 x 1080 Min. Color: 1.0Lux ELECTRICAL Illumination B/W : 0.001 Lux (DSS ON) AGC Control Auto Lens 2.8mm, F2.0 Day &... -
Page 18: Environment Condition
Electrical Characteristics Power Source PoE IEEE802.3af (Class 2) Power Consumption 7W @ PoE Video Output Audio Input Audio Output Environment Condition Operating Range Operating Temperature PoE : 0 ˚C ~ 40 ˚C (32˚F ~ 104˚F) Operating Humidity Up to 85% RH Mechanical Condition Material Aluminum Die-Casting (Vandal Resistance) -
Page 19: Appendix (B): Power Over Ethernet
APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over- Ethernet (PoE) standard. The IEEE 802.3af-2003 standard allows up to 15.4 W power to device. However, 12.95W is the maximum available power, as some power gets lost in the cable. -
Page 20: Appendix (C): Dimensions
APPENDIX (C): DIMENSIONS (Unit: mm) www.blick-store.de... -
Page 21: Appendix (D): Hexadecimal-Decimal Conversion Table
APPENDIX (D): HEXADECIMAL- DECIMAL CONVERSION TABLE Refer to the following table when converting the MAC address of the device to the IP address. www.blick-store.de... -
Page 22: Revision History
REVISION HISTORY MAN# DATE(M/D/Y) Comments 01A.01 07/05/2013 First release version www.blick-store.de...
