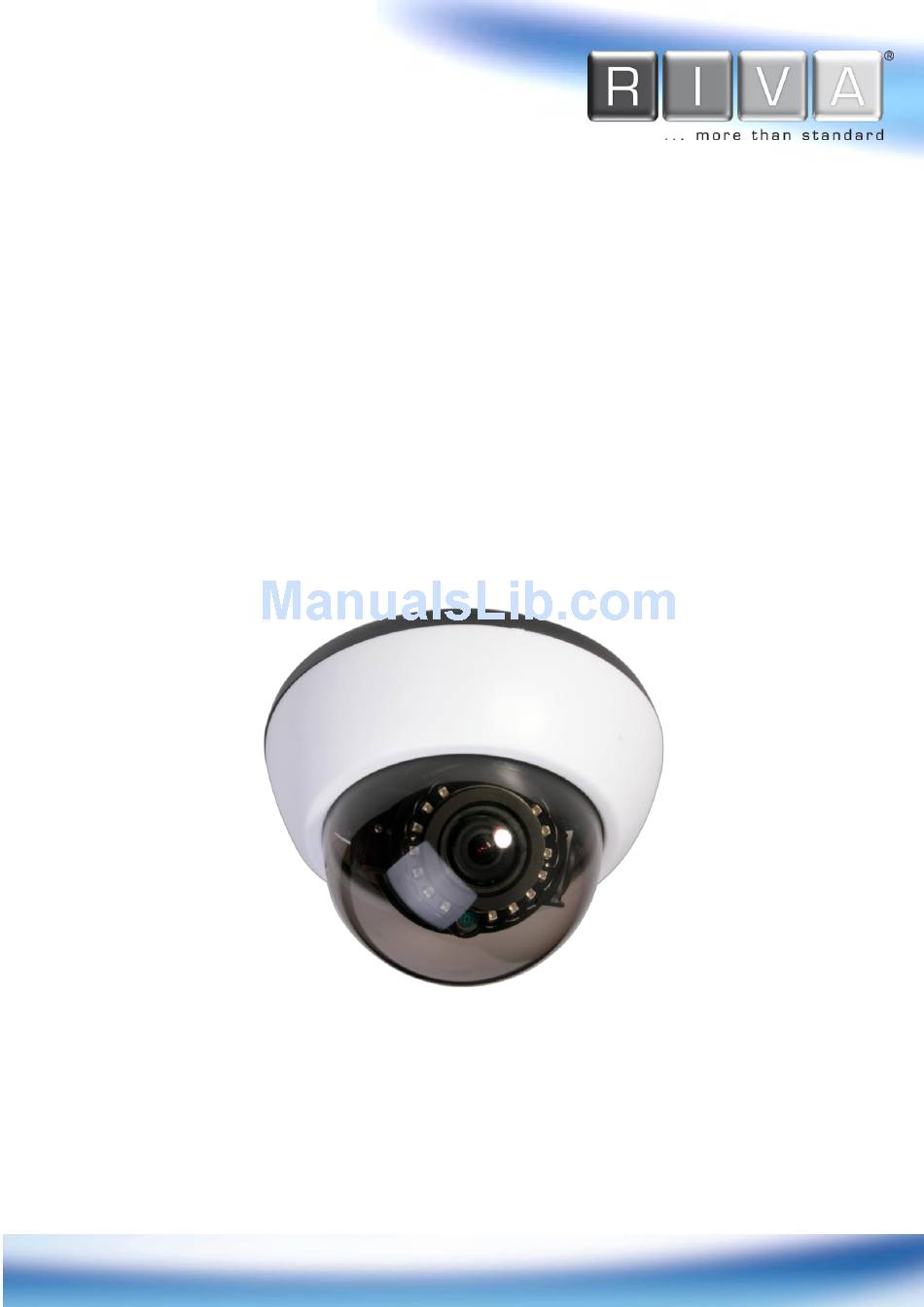

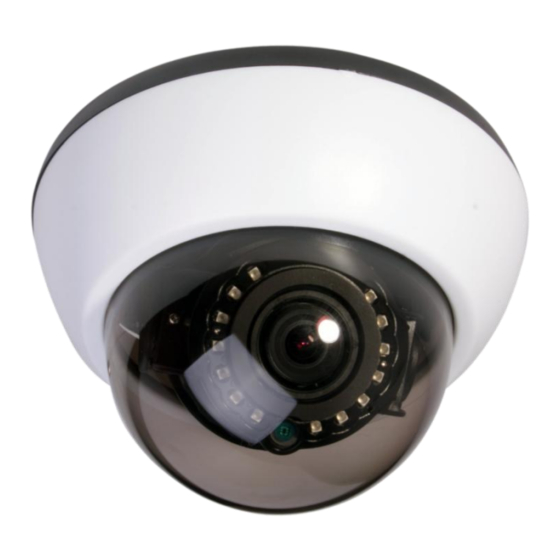

Page 1: Installation Guide
RC3402HD-6311 Installation Guide www.rivatech.de Specification subject to change without notice... -
Page 2: Precaution
Precaution Please read this manual carefully before installing the unit. Never disassemble the camera. Unauthorized disassembly may cause equipment failure or damage to the unit. Please do not install the camera in a place exposed to direct sunlight. ... -
Page 3: Table Of Contents
Table of Contents Precaution ........................ 2 1. FEATURES ......................4 2. PACKAGE CONTENTS..................... 5 3. PART NAMES ......................6 4. INSTALLATION ...................... 7 4.1. Installing the camera ......................7 Installation without bracket ....................7 Wall Mount ......................... 10 Ceiling Mount ........................12 4.2. -
Page 4: Features
HD Series RC3402HD-6311IR Installation Guide 1. FEATURES Camera SONY EXMOR 1/2.9” 1080p CMOS Image Sensor True Day / Night Embedded IR Illuminator with Smart IR Control Video H.264 Baseline, Main, High Profile(MPEG-4 Part 10/AVC), MJPEG(Motion JPEG) ... -
Page 5: Package Contents
HD Series RC3402HD-6311IR Installation Guide 2. PACKAGE CONTENTS Please unpack the package carefully and handle the equipment with care. 구성 The package contains: Camera DC Power Adaptor 구성 Universal Plugs Screws and anchor blocks Quick Installation Guide Camera Opener 구성 Ferrite Core DC Power Jack Cable ZCAT1518-0730... -
Page 6: Part Names
HD Series RC3402HD-6311IR Installation Guide 3. PART NAMES ⑤ ③ ⑥ ③ ② ④ * Models herein and their appearance are subject to change without any prior notice. ① Reset button Use the button to restart the device or to reset it to factory default. Refer to 6.3. -
Page 7: Installation
HD Series RC3402HD-6311IR Installation Guide 4. INSTALLATION 4.1. Installing the camera Installation without bracket Installation Template (Unit: mm) Installation template’s image size scale in this installation guide is not 1:1. The correct-size template design paper can be found inside the package Caution separately. - Page 8 HD Series RC3402HD-6311IR Installation Guide 1) Place the installation template included in the package on the desired installation surface. 2) Drill holes in correct positions based on the template paper, and insert the anchor blocks into the holes. Drill and additional hole on the surface based on the installation template for cabling work.
- Page 9 HD Series RC3402HD-6311IR Installation Guide How to close the dome cover When closing the dome cover, look for the carved trapezoid mark on both dome cover and main body. Both trapezoids should be aligned together like the image below. Caution <...
-
Page 10: Wall Mount
HD Series RC3402HD-6311IR Installation Guide Wall Mount Model Name WMB-3400 Contents M2.5 x 4L Bolt (2EA) Plastic Anchor (2EA) Installation Template * pre-installed on the bracket. Wall Mount Bracket Tapping Screw (2EA) M4 x 7L Bolt (2EA) Installation Mounting the bracket 1) Drill two small holes for the plastic anchors and one hole for cabling work on the wall based on the installation template included in the package. - Page 11 HD Series RC3402HD-6311IR Installation Guide Fixing the camera 1) Remove the dome cover with the opener included in the package. Ensure that the necessary cables including a LAN cable and a power cable are properly connected to the camera. * Refer to page 9 for the note about how to open the dome cover. * It is recommended to install the ferrite core provided in the package on the cable to minimize high frequency noise level likewise in Installation without bracket on page 9.
-
Page 12: Ceiling Mount
HD Series RC3402HD-6311IR Installation Guide Ceiling Mount Model Name CMB-3400 Contents M2.5 X 4L Bolt (2EA) M4 X 7L Bolt (2EA) Installation Template * pre-installed on the bracket. Tapping Screw (3EA) Plastic Anchor (3EA) Ceiling Mount Bracket Installation Mounting the bracket 1) Drill three small holes for plastic anchors and one hole for cabling work on the ceiling based on the installation template included in the package. - Page 13 HD Series RC3402HD-6311IR Installation Guide Fixing the camera 1) Remove the dome cover with the opener included in the package. Ensure that the necessary cables including a LAN cable and a power cable are properly connected to the camera. *Refer to page 9 for the note about how to open the dome cover.
-
Page 14: Adjusting Angle Of The Camera
HD Series RC3402HD-6311IR Installation Guide 4.2. Adjusting angle of the camera Checking the angle on an analogue video test monitor 1) Insert the DC power jack cable(included in the package) to the camera’s power cable socket, and connect the power adaptor(included in the package) to the DC power jack cable, and then plug in the power adaptor to the power outlet. -
Page 15: Adjusting Zoom And Focus
HD Series RC3402HD-6311IR Installation Guide 4.3. Adjusting zoom and focus On the camera’s webpage, go to Setup> Video & Audio> Zoom/Focus. Then, the features shown on the image below will appear. 1) Manual Focus: Adjust zoom and focus by clicking arrow buttons: the buttons move the lens more extensively than the buttons 2) Auto-Focus: Click One Click Focus to automatically set the lens. -
Page 16: Setting The Image Attribute
HD Series RC3402HD-6311IR Installation Guide 4.4. Setting the Image Attribute Through the camera’s webpage, users can configure image settings. The menu of image attribute is available under Video Appearance menu in Setup > Video & Audio > Camera. The following features can be adjusted: Brightness, Contrast, Saturation, Sharpness and Orientation For more detailed information, refer to the provided webpage user’s manual. -
Page 17: Connections
HD Series RC3402HD-6311IR Installation Guide 5. CONNECTIONS ① ③ ② ① LAN Connection This is a RJ45 LAN connector for 10/100 Base-T Ethernet. Use the Ethernet cable (RJ45) to connect the device to a hub or a router in the network. When the LAN cable is connected, the orange LED light will become solid and green LED will blink every 250 millisecond. - Page 18 HD Series RC3402HD-6311IR Installation Guide ② Power Connection The camera can be powered from either 12VDC or PoE. If the camera is powered via PoE, refer to Appendix (B). Power over Ethernet for more details. To operate your camera using 12VDC, make sure the polarity is correct before connecting the power cable.
-
Page 19: Configuration
HD Series RC3402HD-6311IR Installation Guide 6. CONFIGURATION 6.1. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. -
Page 20: Custom Ip Environment
HD Series RC3402HD-6311IR Installation Guide 6.1.2. Custom IP Environment IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. To modify the device’s default IP address for customized network area; 1. -
Page 21: View Video On Web Page
HD Series RC3402HD-6311IR Installation Guide 6.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. The default username and password is root / pass. 6.2.1. ActiveX Installation When the browser asks to install the AxUMF software, click Install to proceed. When Setup installation pop-up window appears, click Install to proceed with rest of installations. -
Page 22: View Video Using Ipadmin Tool
2. Right-click the mouse and select Web View. More Information To learn more about using other features of your devices, refer to the manuals as “RIVA Web Interface Manual Full HD Series” or “VCAsys Manual ”, which is available on www.rivatech.de... -
Page 23: Reboot
HD Series RC3402HD-6311IR Installation Guide 6.3. Reboot Perform the following procedures to reset your device: Press the Reset button, and hold it for 2 seconds while the device is in use. Wait for the system to reboot. Please do not hold for more than 2 seconds. Otherwise, the camera may be switched to its Factory Default settings. - Page 24 HD Series RC3402HD-6311IR Installation Guide How to recover your system from Safe Mode Browse The messages above will appear on the webpage when your device has been rebooted in ‘safe mode’. Then, you should follow the instructions on the webpage according to the steps in a row.
-
Page 25: Appendix (A): Specifications
HD Series RC3402HD-6311IR Installation Guide APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor SONY EXMOR 1/2.9” 1080p CMOS CMOS Effective Pixels 1920x1080 Scanning system Progressive scanning Resolution 1920 x 1080 Min. Color: 1.0 lux ELECTRICAL Illumination BW: 0 lux (IR LED ON) AGC Control Auto Lens... -
Page 26: Electrical Characteristics
HD Series RC3402HD-6311IR Installation Guide Electrical Characteristics Power Source DC 12V / PoE Power Consumption Max. 7W @ DC 12V Video Output Audio Input Audio Output Environment Condition Operating Range Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Operating Humidity Up to 85% RH Mechanical Condition Material... -
Page 27: Appendix (B): Power Over Ethernet
HD Series RC3402HD-6311IR Installation Guide APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. IEEE 802.3af allows two power options for Category 5 cables. The IEEE 802.3af-2003 standard allows up to 15.4 W power to device. -
Page 28: Appendix (C): Dimensions
HD Series RC3402HD-6311IR Installation Guide APPENDIX (C): DIMENSIONS (Unit: mm) 04-2014-A www.rivatech.de... -
Page 29: Appendix (D): Hexadecimal-Decimal Conversion Table
HD Series RC3402HD-6311IR Installation Guide APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when converting the MAC address of the device to the IP address. Hex Dec 04-2014-A www.rivatech.de... -
Page 30: Revision History
HD Series RC3402HD-6311IR Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 12-2013-A 12/09/2013 First release version 01-2014-A 01/15/2014 Added safe mode section 02-2014-A 02/12/2014 Minor update on specification 03-2014-A 03/10/2014 Updated safe mode section Added an additional ferrite core for LAN cable: 03-2014-B 03/20/2014 affected pages(6,9,10)
