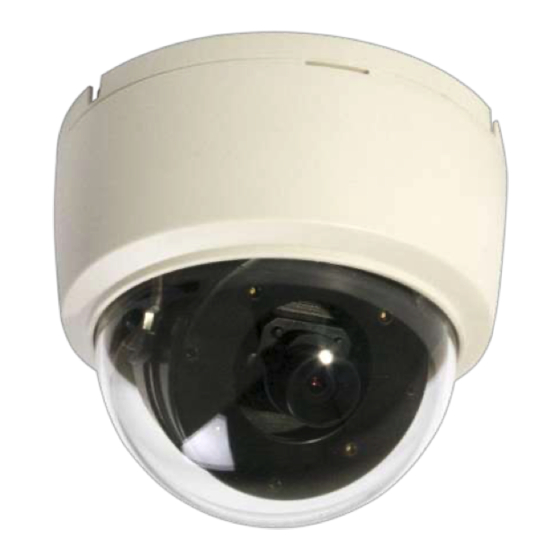

Installation Manual
Quick Installation Guide
This manual provides instructions for quick installation and basic configuration of your IP device.

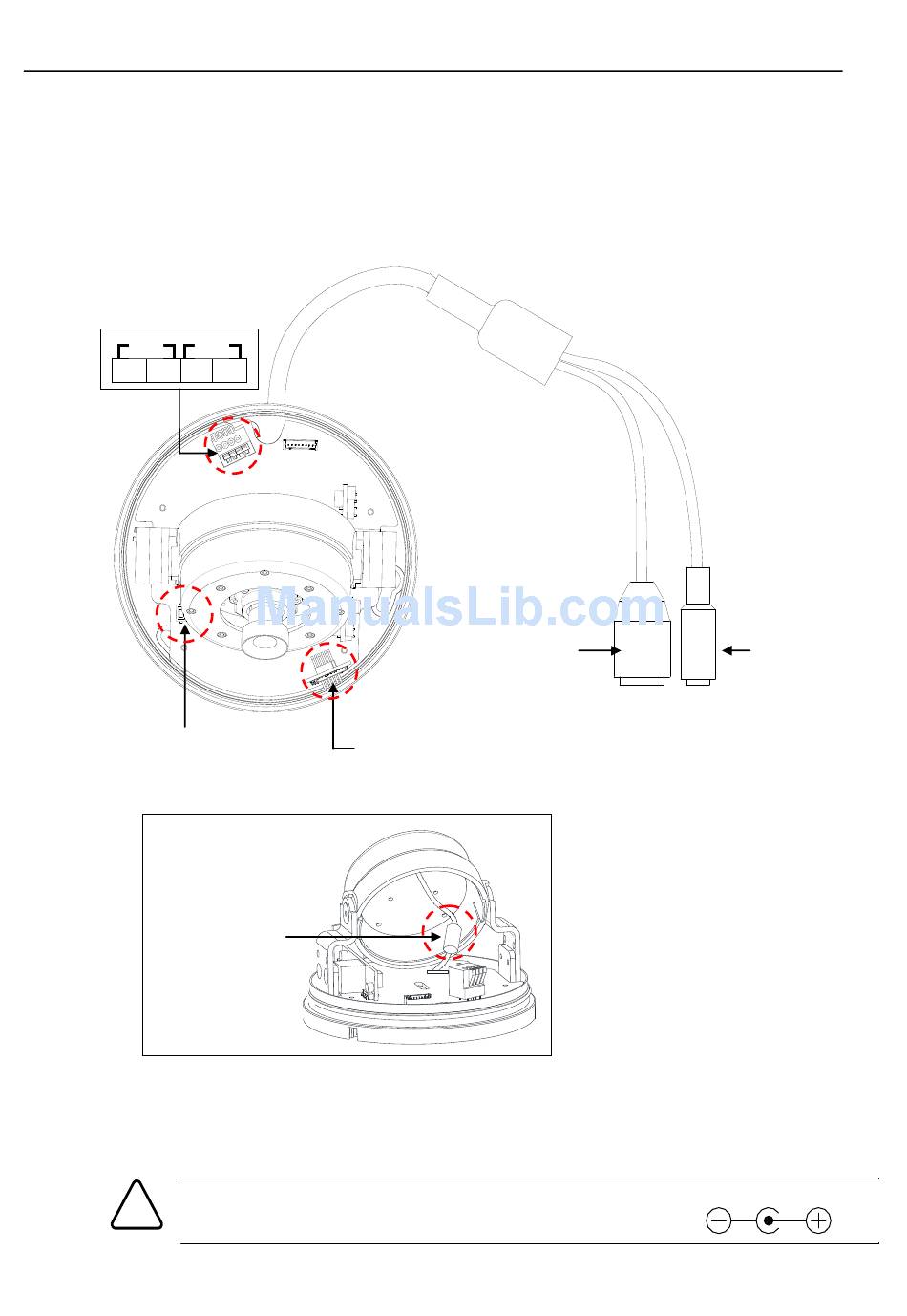

1. Part names and positions
Please check names and positions of each part with the following image. *
Terminal connector for
Digital Input / Output
DI
In Com Out Com
Reset button
Ferrite Core
* Model design and appearance are subject to change without any prior notice.
!
Caution
NC320209-2013-A
DO
microSD/SDHC slot
Make sure the polarity is correct. Incorrect connection may
cause malfunction or damage the IP device.
LAN connector
# Please install the ferrite core
included in the package.
1
Power Adaptor
connector
Power Adaptor Connector (DC 12V)
Advertisement
Table of Contents
Related Manuals for Riva RC3202HD-6111
Summary of Contents for Riva RC3202HD-6111
-
Page 1: Quick Installation Guide
Quick Installation Guide This manual provides instructions for quick installation and basic configuration of your IP device. 1. Part names and positions Please check names and positions of each part with the following image. * Terminal connector for Digital Input / Output In Com Out Com LAN connector Power Adaptor... - Page 2 2. Install IP device 1) Place the installation template (outline shown on the next page) included in the package on the desired installation surface. 2) Drill holes in correct positions based on the template paper, and insert anchor blocks into the holes. 3) Make sure the necessary cables including a LAN cable and a power cable are properly connected to the...
- Page 3 3. Set the lens position 1) Remove the dome cover with the opener included in the package. Opener 2) Adjust the lens to the desired position by manually moving its upper lens shell, reinforced body or horizontal platform in the following directions. A.
- Page 4 To learn more about using other features of your devices, refer to the manuals as “RIVA Web Interface Manual Full HD Series” or “VCAsys Manual Full HD Series”, which is available on www.rivatech.de homepage. NC320209-2013-A...
-
Page 5: Set Up Network Environment
4. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. Be sure that the device and PC are on a same area network before running the installation. -
Page 6: Custom Ip Environment
Custom IP Environment IPAdminTool and the manual can download from www.rivatech.de homepage. IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. To modify the device’s default IP address for customized network area;... - Page 7 NC320209-2013-A...
-
Page 8: Setup Page
5. View video on web page Once the device’s proper IP address has been identified, type the URL in a web browser to access the camera. At first time access, installation window may pop up. 1. When the browser asks to install the AxUMF software, click Install to proceed. 2. -
Page 9: Factory Default
8. Factory Default Resetting the device back to the factory default will initialize all parameters including the IP address back to the factory defaults. To reset back to the factory default: 1. Press the reset button and hold it while the device is in use. 2. -
Page 10: Hexadecimal-Decimal Conversion Table
There is another method to update firmware, which is using IPAdminTool. Please refer to ‘IPAdminTool User’s Manual.pdf’ for the detailed Note procedure. If your device is still at safe mode after trying to update firmware, please contact your local agency to get further assistance. Note Hexadecimal-Decimal Conversion... - Page 11 NC320209-2013-A...
