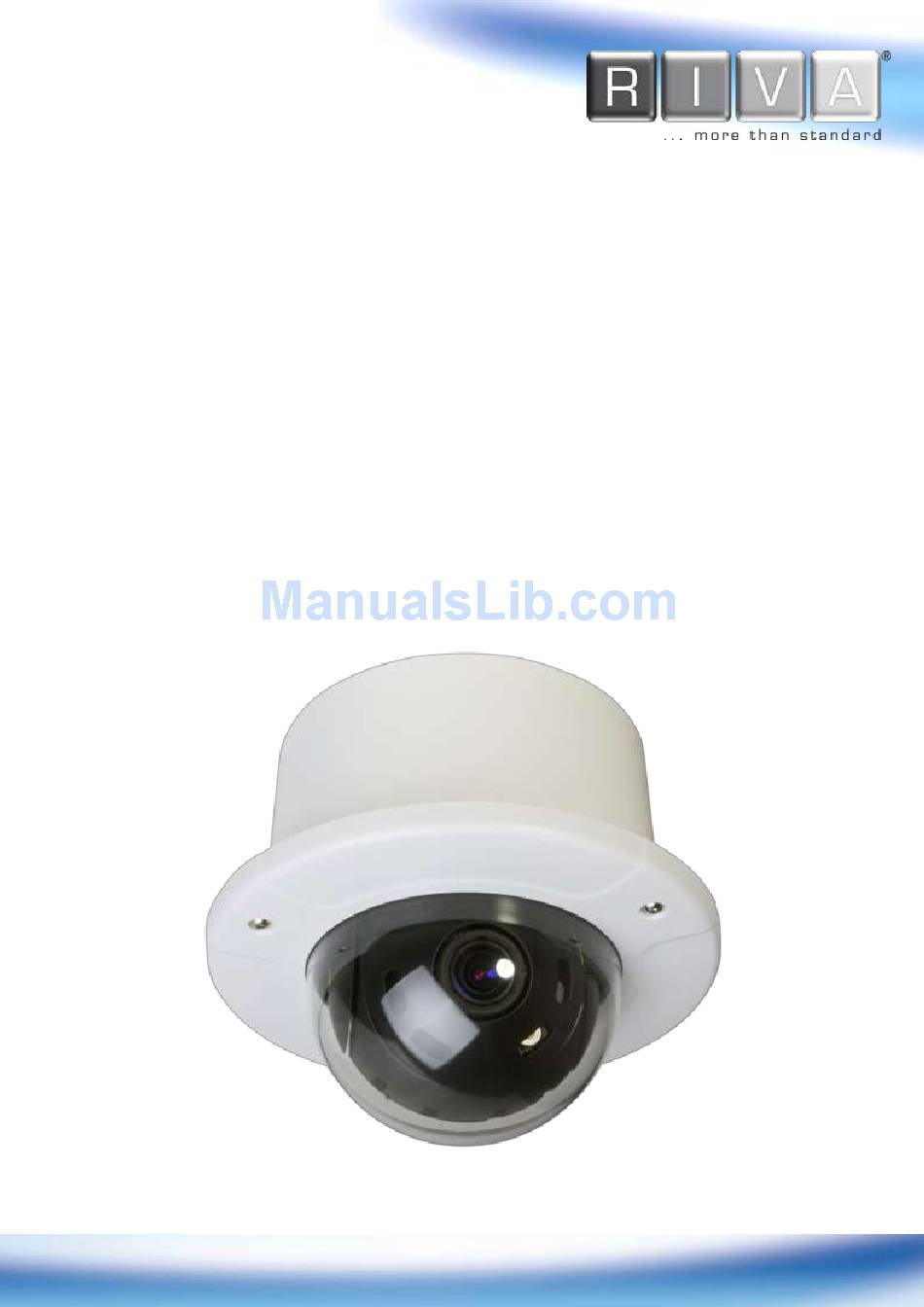

Page 1: Installation Guide
RC3302HD-5344 Installation Guide www.rivatech.de... -
Page 2: Information To User
INFORMATION TO USER CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). CONTACT QUALIFIED SERVICE PERSONNEL FOR INTERNAL PARTS. This symbol is intended to alert the user the presence of un- insulated “dangerous voltage”... -
Page 3: Table Of Contents
Table of Contents 1. FEATURES ................5 2. PACKAGE CONTENTS ..............6 3. PART NAMES ................7 4. INSTALLATION ................9 4.1. Installation Template ..............10 4.2. Setting the Lens Position .............. 11 4.3. Setting the Image Attribute ............12 5. - Page 4 APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE ..... 27 REVISION HISTORY ............... 28 www.rivatech.de...
-
Page 5: Features

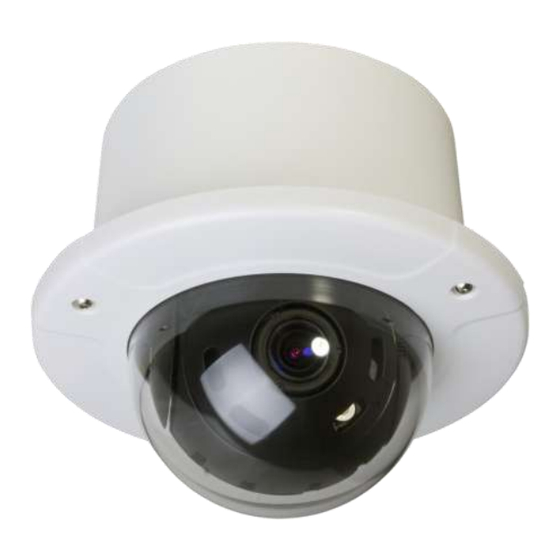

1.FEATURES Camera Full HD indoor remote controllable pan and tilt repositioning IP dome camera High quality compression in real time streaming 1/2.7” High Quality CMOS Image Sensor True Day / Night (ICR) Remote Zoom/Focus Control(One Click AF) Streaming ... -
Page 6: Package Contents
2. PACKAGE CONTENTS Unpack carefully and handle the equipment with care. The packaging contains: Camera DC power adaptor DC Jack Cable 8-pin and 2-pin terminal block S-Video jack to 3.5mm plug Screws and anchors Installation template Hex wrench driver Quick installation guide USB cable The above contents are subject to change without prior notice. -
Page 7: Part Names
3. PART NAMES Bottom View Top View ④ ⑤ ⑥ ⑦ ⑨ ⑪ ② ⑧ ① ⑩ ③ * Models and their appearance are subject to change without any prior notice. 1. Rest button The reset button can be used for restarting the device or resetting it to Factory Default. - Page 8 4. Pan buttons Use the buttons to control rotation of the lens in a horizontal plane. 5. Tilt buttons Use the buttons to control rotation of the lens in a vertical plane. 6. Video stereo jack connector Connector for 3.5mm video jack plug. 7.
-
Page 9: Installation
4.INSTALLATION 1) Place the installation template (paper) that is included in the package on the desired installation surface. 2) Drill three holes in correct positions based on the template paper, and insert anchor blocks into the holes. Insert camera body installation surface match... -
Page 10: Installation Template
4.1. Installation Template Installation template 33 V1.0 Installation template image’s size scale in this installation guide is not 1:1. The correct-size template design paper can be found inside the Caution package separately. www.rivatech.de... -
Page 11: Setting The Lens Position
4.2. Setting the Lens Position 1) Remove the dome cover. 2) Set the lens position by rotating the camera gimbal; to pan, rotate the reinforced lower body of the gimbal; to tilt, vertically adjust the camera gimbal. Rotation Screw A. Rotate the lens B. -
Page 12: Setting The Image Attribute
Reset Reset 4.3. Setting the Image Attribute Through the camera’s webpage, users can configure image settings. The camera image’s brightness, contrast, saturation and sharpness are adjustable through the image settings. (Setup > Video & Audio > Camera). 5. CONNECTIONS N / A N / A N / A N / A... - Page 13 N / A N / A N / A N / A VIDEO AUDIO DC12V ETHERNET MICRO SD Amp Speaker 2. Sensor (DI) connection The camera provides 1 channel D/I. It can be connected to either a voltage type sensor or a relay type sensor as the following figures. Settings can be done through the camera’s webpage Input voltage range: 0VDC minimum to 5VDC maximum, Max 50mA Input voltage threshold: 1.5V...
- Page 14 3. Alarm (DO) connection Only the relay type is supported. Relay Rating: Max 24VDC 50mA Do not exceed the maximum relay rating. Caution Internal Device Relay Type Must connect GND port which is located between systems. Caution 4. LAN connection This is a RJ45 LAN connector for 10/100 Base-T Ethernet.
- Page 15 Green LED Orange LED When the device is connected, the orange LED stays on while green LED continues to blink. 5. 12V DC Power A 12V DC power connector is required for this device. Black www.rivatech.de...
-
Page 16: Configuration
6. CONFIGURATION 6.1.Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. Be sure that the device and PC are on a same area network before running the installation. -
Page 17: Custom Ip Environment
3. Web streaming and device configurations are supported through ActiveX program. When the ActiveX installation window appears, authorize and install the ActiveX. 6.1.2. Custom IP Environment IPAdminTool and the manual are provided on USB stick or can download from homepage. www.rivatech.de IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network... - Page 18 Give new unique IP address in PC environment Info last two sets and mirror other information in other boxes 3. In the IP Setup’s window, information under ‘Local Network information’ displays the user/PC’s network area information. Those information need to be incorporated to the IP Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP Address, which are to be the unique numbers for the device.
-
Page 19: View Video On Web Page
6.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. root / pass The default username and password is The browser asks to install the ActiveX. Click Allow. 2. Setup.exe installation link or pop-up window appears, depends on Microsoft® Internet Explorer version. - Page 20 3. Follow the instructions of the dialog boxes and complete the installation. Once the installation is complete, start the web browser again and check if video stream is displayed in the main view frame. This software requires the Microsoft XML Parser V6 or higher. If “...
-
Page 21: View Video Using Ipadmin Tool
6.2.1. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. IPAdminTool is provided on USB stick or can download from homepage. www.rivatech.de 1. From the IPAdminTool’s product list, select the device by highlighting it. 2. -
Page 22: Reset
6.3. Reset 1. Push the Reset button and hold for 1~2 seconds. 2. Wait for the system to reboot. 6.4. Factory Default If you reset your device to the factory default setting, all parameters including the IP address will be initialized. For the Factory Default reset: 1. -
Page 23: Appendix (A): Specifications
APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/2.7” 1080p CMOS Effective 1920x1080 CMOS Pixels Scanning Progressive scanning system Resolution 1920 x 1080 ELECTRIC Min. Color: 1.0 lux, F1.2 Illumination BW: 0.001 Lux (B/W, Sens-up 32X) AGC Control Auto Focal Length 3.0 ~ 9.0mm Aperture F/1.2 ~ 360... -
Page 24: Electrical Characteristics
SNTP, mDNS, UPnP, SMTP, IGMP, DHCP, DDNS, SSL v2/v3, IEEE 802.1X, SNMP v2/v3 Supported (MicroSD) SD Slot ※ Micro SD Card not included * When VCA is activated, only one camera stream will be available and frame rate is limited to 15fps@1080p. Limitations are based on V.1.3.0 firmware release and could be changed without notice. -
Page 25: Appendix (B): Power Over Ethernet
APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over- Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables. The IEEE 802.3af-2003 standard allows up to 15.4 W power to device. -
Page 26: Appendix (C): Dimensions
APPENDIX (C): DIMENSIONS (Unit: mm) www.rivatech.de... - Page 27 APPENDIX (D): HEXADECIMAL- DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. www.rivatech.de...
-
Page 28: Revision History
REVISION HISTORY MAN# DATE(M/D/Y) Comments 01A.01 05/11/2012 First release version 01A.02 07/03/2012 Power source revise Supporting protocol revised. (removed SOCK and SSH) www.rivatech.de...
