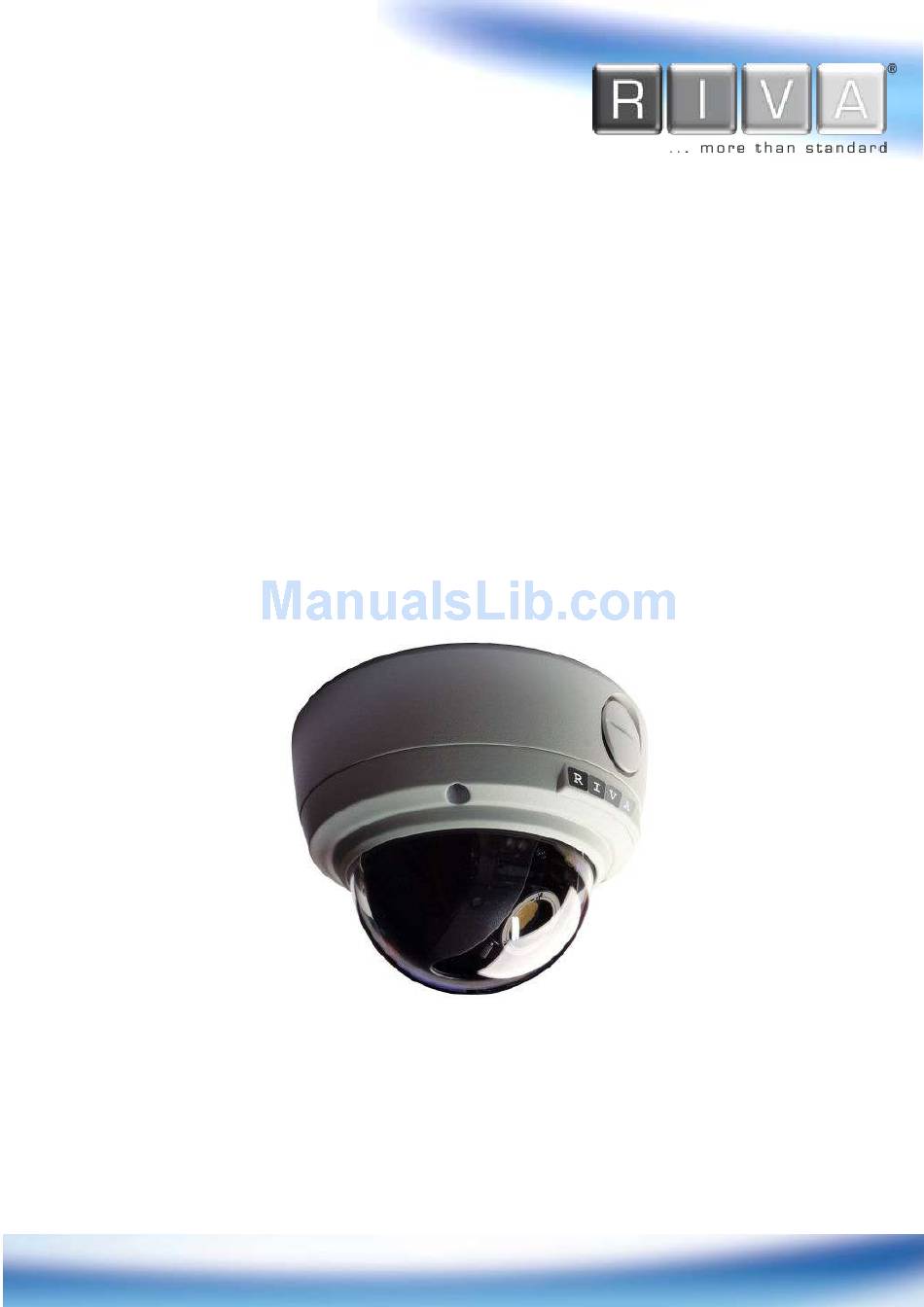

Page 1: Installation Guide
RC3500M Installation Guide www.rivatech.de... -
Page 2: Information To User
INFORMATION TO USER CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SEERIVCE PERSONEL. This symbol is intended to alert the user to the presence of un- insulated “dangerous voltage”... -
Page 3: Table Of Contents
Table of Contents 1. FEATURES ................5 2. PACKAGE CONTENTS ..............6 3. PART NAMES ................7 3.1.Internal View ................. 7 4. INSTALLATION ................9 4.1. Installation Template ..............10 4.2. Manual adjustment for 3-axis movements ........11 4.3. Setting the Image Attribute ............11 5. - Page 4 APPENDIX (C): DIMENSIONS ............21 APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE ..... 22 REVISION HISTORY ............... 23 www.rivatech.de...
-
Page 5: Features

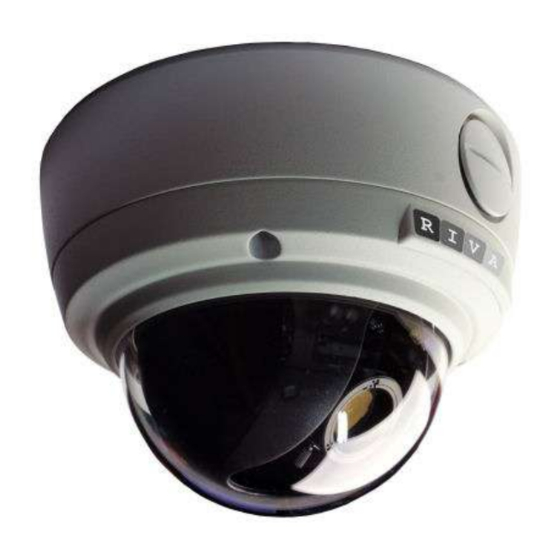

1.FEATURES Camera Indoor/Outdoor Fixed Dome IP Camera (Vandal Proof) High Quality Compression in real time streaming Aptina (Micron) 1/3.2” (4:3) CMOS 2M Digital Day & Night Improvement of color rolling suppression Streaming Dual streaming mode (such as different codec/resolution/bit rate and so on.) ... -
Page 6: Package Contents
2.PACKAGE CONTENTS Unpack carefully and handle the equipment with care. The packaging contains: Camera DC power adaptor Power extension cable 11 Pin terminal block Hex wrench driver Screws and Anchor blocks Installation Template Surface Cushion (for protection against dust) Quick Installation Guide The above contents are subject to change without prior notice. -
Page 7: Part Names
3.PART NAMES 3.1.Internal View ④ ③ ⑥ ⑤ ② ① * Models herein and their appearance are subject to change without any prior notice. 1 11 pin terminal block for D/I, D/O, audio, and serial communication 11 pin terminal block for D/I, D/O, Audio in /Out and serial communication. Refer to the section “5.1.Connectors”... - Page 8 5 LAN Connector (Ethernet) This is a RJ45 LAN connector for 10/100 Base-T Ethernet. This socket can also be used to power the camera via PoE (Optional). LED1 LED2 This LED lights up as orange and turns green when the encoder is powered on. LED operation setting: For the factory default setting, LED 2 blinks for the heartbeat and LED 1 turns 4.5.11.
-
Page 9: Installation
4.INSTALLATION Place the installation template that is provided in the package on the desired position of installation. Attach the surface cushion on the bottom plate of the device. Drill three holes template and insert anchor blocks into the holes. Fasten the camera with screws. -
Page 10: Installation Template
The camera may fall off the ceiling even after the proper installation and mounting. To prevent any accident, make sure the ceiling is firm and stable enough to support the camera. If any reinforcement Caution is needed, consult with your safety personnel and proceed with the installation. -
Page 11: Manual Adjustment For 3-Axis Movements
4.2. Manual adjustment for 3-axis movements After installation, make a manual adjustment on the lens body. Perform 3-axis movements manually by turning the lens body to different directions as above, and check if it moves properly. If a camera with a high zoom lens is subjected to an environment with temperature variation (approximately 10 ˚C, but dependable on the zoom level), there may be a focus shift causing a blurry image. -
Page 12: Connections
5.CONNECTIONS 5.1.Connectors 1 Audio In / Out The camera has a mono audio input and a mono audio output. As the output power for the audio is low, amplifier speaker is needed (Do not use a headphone or earphone directly to the camera). Aout Amp Speaker 2 Sensor (DI) connection... - Page 13 Do not exceed the maximum input voltage or relay rate. Caution Internal Internal Output of Output of Sensor Sensor Relay Type Voltage Type 3 Alarm (DO) connection Only the relay type is supported. Relay Rating: Max 24VAC 500mA or 12VDC 1A Do not exceed the maximum relay rating.
- Page 14 485 Device RS-485 Connection www.rivatech.de...
-
Page 15: Configuration
6.CONFIGURATION 6.1.Set up network environment The default IP address of your IP device is 192.168.XXX.XXX. You can find the available IP address from the MAC address of your device. Please make sure the device and your PC are on the same network segment before running the installation. - Page 16 To use the IPAdminTool and view the live video on a web page: 1. Start IPAdminTool. Names and info of currently activated devices appear as a list. 2. Right-click on the desired device and select Web view. 3. Click pop-up blocked and install the ActiveX setup.exe by clicking the Run or Save button.
-
Page 17: View Video Using Ip Address
6.2.2.View video using IP address View the live video on a web page using your IP device and its IP address. To have the correct IP address ready and use it on a web page: 1. Convert a MAC address to an IP address or check the IP address on the Appendix (D) : Hexadecimal-Decimal Conversion Table IPAdminTool. -
Page 18: Appendix (A): Specifications
APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor Aptina (Micron) 1/3.2" (4:3) CMOS 2M Effective 1600 x 1200 (UXGA, 2M) CMOS Pixels Scanning Progressive system Resolution 750 TV Lines Min. 0.5 Lux(50IRE), 0.1 Lux(DSS x5 ON) Illumination 71dB ELECTRIC Color ON/Auto AGC Control Auto... -
Page 19: Environment Condition
Annotation on, fps could be 15 fps@XGA (1024 x 768), D1 (720 decreased) x 480) MJPEG 15 fps@UXGA (1600 x 1200) MPEG-4 15fps@D1&720x480) Motion Detection Supported Burnt-in Text (Digital) Supported (DSP) Output Not supported Audio Input/output 1/1 channel Compression Format G.711 Function Digital Input/output... -
Page 20: Appendix (B): Power Over Ethernet
APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power- over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables. The PoE module signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. -
Page 21: Appendix (C): Dimensions
APPENDIX (C): DIMENSIONS (Unit: mm) www.rivatech.de... -
Page 22: Appendix (D): Hexadecimal-Decimal Conversion Table
APPENDIX (D): HEXADECIMAL- DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec 00 0 94 148 25 37 4A 74 6F 111... -
Page 23: Revision History
REVISION HISTORY MAN# DATE(M/D/Y) Comments D1A.00 09/10/2010 Preliminary version for DP sample D1A.01 10/26/2010 Preliminary version for DP sample Added missing specification data D1A.02 11/15/2010 Preliminary version for DP sample Added a notice about the temperature change and focus shift 01A.00 12/02/2010 Initial release version 02A.00...
