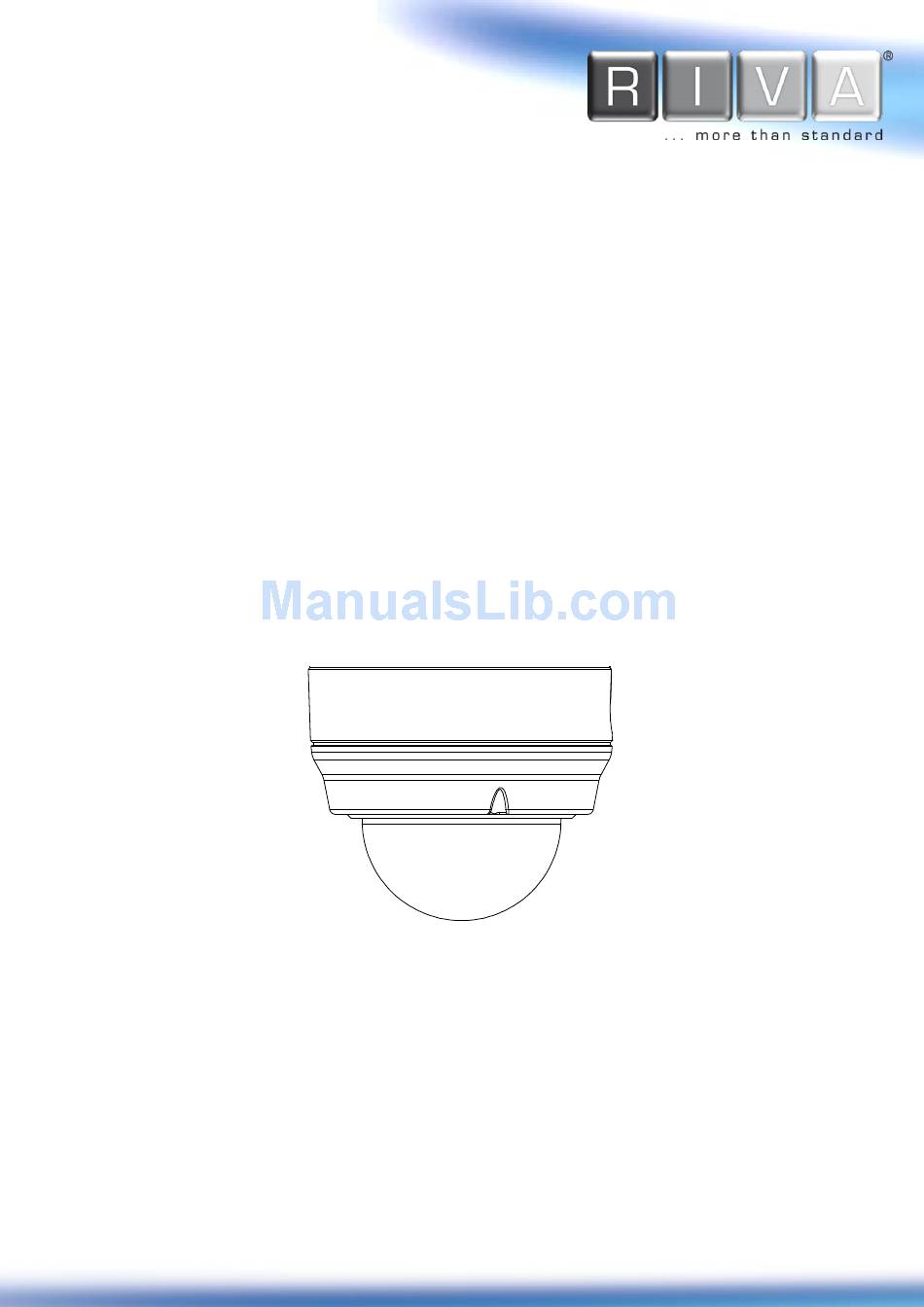

Page 1: Installation Guide
RC3512HD-63111IR Installation Guide www.rivatech.de Specification subject to change without notice... -
Page 2: Precautions & Notes
RC Series RC3512HD-6311IR Installation Guide Precautions & Notes Please read this manual carefully before installing the unit. Never disassemble the camera. Unauthorized disassembly may cause equipment failure or damage to the unit. Please do not install the camera in a place exposed to direct sunlight. -
Page 3: Table Of Contents
RC Series RC3512HD-6311IR Installation Guide Table of Contents Precautions & Notes ....................2 1. FEATURES ......................4 2. PACKAGE CONTENTS..................... 5 3. PART NAMES ......................6 4. INSTALLATION ...................... 7 4.1. Installing the camera ......................7 4.1.1. Installation without bracket ..................7 4.1.2. -
Page 4: Features
RC Series RC3512HD-6311IR Installation Guide 1. FEATURES Camera 1/2.9” 1080p CMOS Image Sensor True Day / Night DC Auto Iris Lens Embedded IR Illuminator Remote Zoom/Focus Control(One Click AF) Weather proof (IP66) ... -
Page 5: Package Contents
ETHERNET RC Series RC3512HD-6311IR Installation Guide WIRE 2. PACKAGE CONTENTS Please unpack the package carefully and handle the equipment with care. ETHERNET DC12V The packaging contains: ETHERNET WIRE Camera DC Power Adaptor & Plugs RESET ETHERNET DC Power Jack Cable... -
Page 6: Part Names
RC Series RC3512HD-6311IR Installation Guide 3. PART NAMES ③ RESET RESET ② ETHERNET ETHERNET MICRO ④ MICRO ① DC12V DC12V * Models herein and their appearance are subject to change without any prior notice. ① Terminal connector Connector for cable connection of digital input/output and DC12V power Refer to 5.CONNECTIONS for more details. -
Page 7: Installation
RC Series RC3512HD-6311IR Installation Guide 4. INSTALLATION 4.1. Installing the camera 4.1.1. Installation without bracket Installation Template tallation template (Unit: mm) Installation template’s image size scale in this installation guide is not 1:1. The correct-size template design paper can be found inside the package separat ely. - Page 8 RC Series RC3512HD-6311IR Installation Guide 1) Place the installation template included in the package on the desired installation surface. 2) Drill the three holes in the correct positions based on the template paper, and insert the plastic anchors into the holes (In case you need to connect the cables...
-
Page 9: Compatible Accessories
RC Series RC3512HD-6311IR Installation Guide The internal heater does not work when the device is powered via PoE. Caution The camera may fall off the ceiling even after the proper installation and mounting. To prevent any accident, make sure the ceiling is firm and stable enough to support the camera. -
Page 10: Adjusting Angle Of The Camera
MICRO ETHERNET MICRO RC Series RC3512HD-6311IR Installation Guide RESET ETHERNET 4.2. Adjusting angle of the camera MICRO DC12V Adjust the angle of the camera by manually moving the corresponding parts following the directions below. Gimbal Bracket 1. Perform the panning adjustment by turning the gimbal bracket horizontally either clockwise or counter- clockwise. -
Page 11: Adjusting Zoom And Focus
RC Series RC3512HD-6311IR Installation Guide 4.3. Adjusting zoom and focus *To be able to adjust zoom and focus, it is necessary to connect the device to a network. Please refer to 6.CONFIGURATION for the detailed method of network connection. Once the device is on the network and the webpage is open, go to Setup> Video >... -
Page 12: Connections
RC Series RC3512HD-6311IR Installation Guide 5. CONNECTIONS RESET ETHERNET DC12V MICRO DC12V ① Alarm (DO) connection Only the relay type is supported. Relay Rating: Max 24VDC 50mA Do not exceed the maximum relay rating. Caution Internal... - Page 13 RC Series RC3512HD-6311IR Installation Guide Internal +3.3V Internal Output of Output of Sensor Sensor Relay Type Voltage Type ③ Power Connection The camera can be powered from either 12VDC or PoE. The connection via the terminal connector is for DC12V power. To operate your camera using 12VDC, make sure that the polarity is correct before connecting the power cable.
-
Page 14: Configuration
RC Series RC3512HD-6311IR Installation Guide 6. CONFIGURATION 6.1. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. -
Page 15: Custom Ip Environment
RC Series RC3512HD-6311IR Installation Guide Custom IP Environment Please access our website and download necessary IPAdminTool first: http://www.rivatech.de/en/downloads/software IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. -
Page 16: View Video On Web Page
RC Series RC3512HD-6311IR Installation Guide 6.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. The default username and password is root / pass. 6.2.1. ActiveX Installation When the browser asks to install the AxUMF software, click Install to proceed. -
Page 17: View Video Using Ipadmin Tool
RC Series RC3512HD-6311IR Installation Guide 6.2.2. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. 1. From the IPAdminTool’s product list, select the device by highlighting it. -
Page 18: Reboot
RC Series RC3512HD-6311IR Installation Guide 6.3. Reboot Perform the following procedures to reset your device. On the camera Press the reset button for 2 seconds when the device is powered on. Wait for the system to reboot. Do not press the reset button for more than 2 seconds. Otherwise, the camera may be switched to its factory default settings. -
Page 19: Safe Mode
RC Series RC3512HD-6311IR Installation Guide 6.5. Safe Mode There may be certain occasions that your camera repeatedly fails to boot. Then, your camera may enter safe mode to be recovered from the occasions. What may have caused Safe Mode? Here below are the main typical causes. -
Page 20: Appendix (A): Specifications
RC Series RC3512HD-6311IR Installation Guide APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/2.9” 1080p CMOS CMOS Effective Pixels 1920x1080 Scanning system Progressive scanning Resolution 1920 x 1080 Min. Color: 0.5 lux, F1.4 ELECTRICAL Illumination BW: 0 lux, F1.4 (IR LED ON) -
Page 21: Electrical Characteristics
RC Series RC3512HD-6311IR Installation Guide ※ card not included (Class 4 and higher recommended for HD recordings) Electrical Characteristics Power Source DC 12V / PoE IEEE802.3af (Class 0) Power Consumption 10W @ DC 12V (Heater On, IR-LED On) Max 50mA@5VDC, TTL level 1.5V threshold Max 50mA@24VDC On-state resistance: 50 Ω... -
Page 22: Appendix (B): Power Over Ethernet
RC Series RC3512HD-6311IR Installation Guide APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables. -
Page 23: Appendix (C): Dimensions
RC Series RC3512HD-6311IR Installation Guide APPENDIX (C): DIMENSIONS (Unit: mm) 04-2017-A www.rivatech.de... -
Page 24: Appendix (D): Hexadecimal-Decimal Conversion Table
RC Series RC3512HD-6311IR Installation Guide APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. 04-2017-A www.rivatech.de... -
Page 25: Revision History
RC Series RC3512HD-6311IR Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 09-2015-A 09/14/2015 First release version 11-2015-A 11/25/2015 Minor errors in images and snapshots corrected 12-2015-A 12/16/2015 Updated the value of power consumption in APPENDIX (A) 04-2017-A 04/03/2017 Added some network protocols to the specification table 04-2017-A www.rivatech.de...
