Summary of Contents for Riva RC3202HD-6111

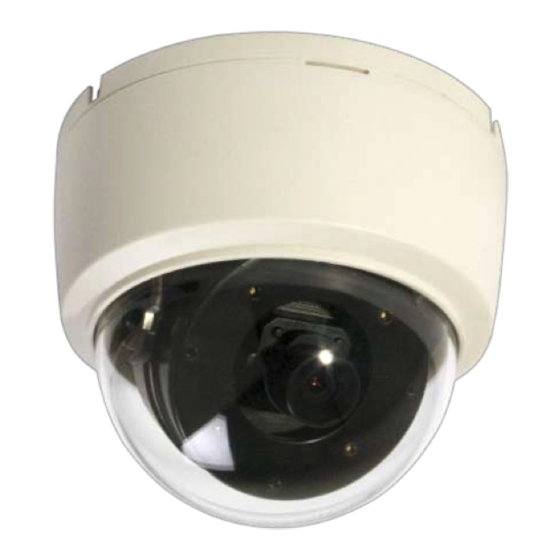

- Page 1 RC3202HD-6111 Installation Guide www.rivatech.de...
-
Page 2: Information To User
INFORMATION TO USER CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). CONTACT QUALIFIED SERVICE PERSONNEL FOR INTERNAL PARTS. This symbol is intended to alert the user the presence of un-insulated “dangerous voltage”... -
Page 3: Table Of Contents
Table of Contents 1. FEATURES ................4 2. PACKAGE CONTENTS ............... 5 3. PART NAMES ................. 6 4. INSTALLATION ................ 7 4.1. Installation Template ..............8 4.2. Manual adjustment for 3-axis movements .......... 9 4.3. Lens Focus Adjustment ..............9 4.4. -
Page 4: Features
1. FEATURES Camera Full HD indoor dome IP camera High quality compression in real time streaming 1/2.9” High Quality CMOS Image Sensor Digital Day / Night and digital WDR ONVIF Support Streaming Dual streaming mode ... -
Page 5: Package Contents
2. PACKAGE CONTENTS The package contains main camera, DC power adaptor, Universal plugs, screws, anchors, quick installation guide, camera opener, and clamping core. Unpack carefully and handle the equipment with care. Camera DC power adaptor Universal plugs Screws and anchors Quick installation guide Camera opener Clamping core... -
Page 6: Part Names
3. PART NAMES * Models herein and their appearance are subject to change without any prior notice. 1 Reset button The reset button can be used for restarting the device or resetting it to Factory 6.3. -
Page 7: Installation
4. INSTALLATION 1) Place the installation template (paper) that is included in the package on the desired installation surface. Drill three holes correct positions based template paper, and insert anchor blocks into the holes. 3) Place the camera body and match three alignment holes with three anchor blocks. -
Page 8: Installation Template
ation template 4.1. Installation Template (Unit: mm) Installation template image’s size scale in this installation guide is not 1:1. The correct-size template design paper can be found inside the Caution package separately. www.rivatech.de... -
Page 9: Manual Adjustment For 3-Axis Movements
4.2. Manual adjustment for 3-axis movements A. Rotate the lens B. Pan the lens with C. Tilt the lens with with upper lens reinforced lower body horizontal platform shell Adjust the lens to the desired position by manually moving its upper lens shell, reinforced body or horizontal platform in the following directions. -
Page 10: Setting The Image Attribute
4.4. Setting the Image Attribute Through the camera’s webpage, users can configure image settings. The camera image’s brightness, contrast, saturation and sharpness are adjustable through the image settings. (Setup > Video & Audio > Camera). www.rivatech.de... -
Page 11: Connections
5. CONNECTIONS In Com Out Com DC 12V www.rivatech.de... - Page 12 1 Sensor (DI) connection The camera provides 1 channel D/I. It can be connected to either a voltage type sensor or a relay type sensor as the following figures. Settings can be done through the camera’s webpage. Input voltage range: 0VDC minimum to 5VDC maximum, Max 50mA Input voltage: VIL=0.8V(max), VIH=2.0V(min) Do not exceed the maximum input voltage or relay rate.
-
Page 13: Configuration
6. CONFIGURATION 6.1. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. Be sure that the device and PC are on a same area network before running the installation. -
Page 14: Custom Ip Environment
2. Start the Microsoft® Internet Explorer web browser and enter the address of the device. 3. Web streaming and device configurations are supported through ActiveX program. When the ActiveX installation window appears, authorize and install the ActiveX. 6.1.2. Custom IP Environment IPAdminTool and the manual can download from homepage. -
Page 15: View Video On Web Page
3. In the IP Setup’s window, information under ‘Local Network information’ displays the user/PC’s network area information. Those information need to be incorporated to the IP Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP Address, which are to be the unique numbers for the device. Refer to the image above for the setting 4. -
Page 16: Access Through Ipadmin Tool
6.2.1. Access through IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. IPAdminTool and the manual can download from homepage. www.rivatech.de 1. From the IPAdminTool’s product list, select the device by highlighting it. 2. -
Page 17: Factory Default
Password: pass More Information To learn more about using other features of your devices, refer to the manuals as “RIVA Web Interface Manual Full HD Series” or “VCAsys Manual Full HD Series”, which is available on homepage. www.rivatech.de www.rivatech.de... -
Page 18: Appendix (A): Specifications
APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/2.9” 1080p CMOS Effective Pixels 1920x1080 CMOS Scanning Progressive scanning system Resolution 1920 x 1080 ELECTRICA Min. Color: 1.0 lux, BW: 0.001 lux (DSS ON) Illumination AGC Control Auto Lens 4.0mm F2.0 Day &... -
Page 19: Electrical Characteristics
Electrical Characteristics Power Source DC 12V / PoE Power Consumption 3.6W @ DC 12V Video Output Audio Input Audio Output Max 50mA@5VDC, TTL level, VIL=0.8V(max), VIH=2.0V(min) Max 100mA@24VDC On-state resistance: 50 Ω (max continuous) Environment Condition Operating Range Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Operating Humidity Up to 85% RH... -
Page 20: Appendix (B): Power Over Ethernet
APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over- Ethernet (PoE) standard. The IEEE 802.3af-2003 standard allows up to 15.4 W power to device. However, 12.95W is the maximum available power, as some power gets lost in the cable. -
Page 21: Appendix (C): Dimensions
APPENDIX (C): DIMENSIONS (Unit: mm) www.rivatech.de... -
Page 22: Appendix (D): Hexadecimal-Decimal Conversion Table
APPENDIX (D): HEXADECIMAL- DECIMAL CONVERSION TABLE Refer to the following table when converting the MAC address of the device to the IP address. www.rivatech.de... -
Page 23: Revision History
REVISION HISTORY MAN# DATE(M/D/Y) Comments 01A.03 07/05/2013 First release version www.rivatech.de...
