Page 1: Installation Guide

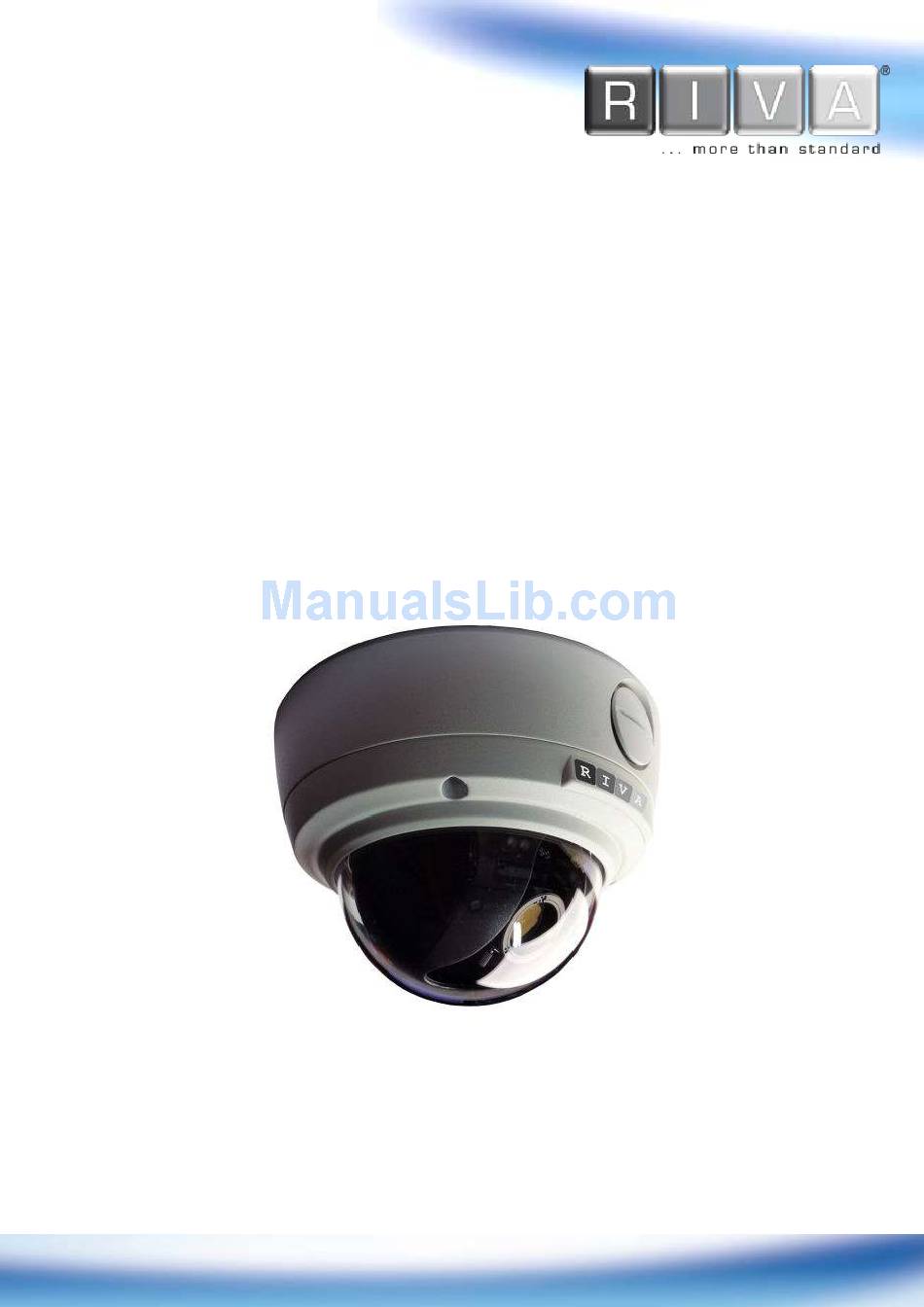

RC3500 Installation Guide www.rivatech.de... -
Page 2: Information To User
INFORMATION TO USER CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SEERIVCE PERSONEL. This symbol is intended to alert the user to the presence of un- insulated “dangerous voltage”... -
Page 3: Table Of Contents
Table of Contents 1. FEATURES ................5 2. PACKAGE CONTENTS ..............6 3. PART NAMES ................7 3.1.Internal View ................. 7 4. INSTALLATION ................9 4.1. Installation Template ..............10 4.2. Manual adjustment for 3-axis movements ........10 4.3. Setting the Image Attribute ............11 4.4. - Page 4 APPENDIX (C): DIMENSIONS ............22 APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE ..... 23 REVISION HISTORY ............... 24 www.rivatech.de...
-
Page 5: Features
1.FEATURES Camera Indoor/Outdoor Fixed Dome IP Camera (Vandal Proof) High Quality Compression in real time streaming Sony 1/3” Super HAD CCD & High Quality SS-HQ1 Full Kit Chip Set Sony 1/3" Vertical Double Density Color CCD (Optional) ... -
Page 6: Package Contents
2.PACKAGE CONTENTS Unpack carefully and handle the equipment with care. The packaging contains: Camera DC power adaptor Extension cable 11 Pin terminal block (for LAN and power connector) Hex wrench driver Screws and Anchor blocks Installation Template Video BNC Cable Quick Installation Guide Surface Cushion (for protection against dust) -
Page 7: Part Names
3.PART NAMES 3.1.Internal View ④ ③ ② ① * Models herein and their appearance are subject to change ⑤ ⑥ without any prior notice. 1. 11 pin terminal block for D/I, D/O, audio, and serial communication 11 pin terminal block for D/I, D/O, Audio in /Out and serial communication. Refer to the section “5.1.Connectors”... - Page 8 4. Extension cable Socket It is a socket for LAN and power connector. 5. LAN Connector (Ethernet) This is a RJ45 LAN connector for 10/100 Base-T Ethernet. This socket can also be used to power the camera via PoE (Optional). 6.
-
Page 9: Installation
7. 4.INSTALLATION Connect the LAN cable, power supply cable, and the video loop out cable with the camera. Place the installation template on the ceiling. Drill three holes template and insert anchor blocks into the holes. Fasten the camera with screws. Put the dome cover on the main body of the camera. -
Page 10: Installation Template
4.1. Installation Template 4.2. Manual adjustment for 3-axis movements After installation, make a manual adjustment on the inner liner. Perform 3-axis movements manually by turning the inner liner to different directions as above, and check if it moves properly. www.rivatech.de... -
Page 11: Setting The Image Attribute
4.3. Setting the Image Attribute You can set the image attribute of camera through the webpage. The menu of image attribute can be seen under Setup > Video & Audio > Video-in > Attribute Setting. Brightness, contrast, hue, saturation and sharpness can be adjusted. - Page 12 2 Sensor (DI) connection The camera provides 1 channel D/I. It can be connected to either a voltage type sensor or a relay type sensor as the following figures. It can be selected by software. Input voltage range: 0 VDC minimum to 24 VDC maximum Input voltage threshold: 1 V Do not exceed the maximum input voltage or relay rate.
- Page 13 4 Video Out The camera provides 1 video loop out. Video Black White 5 RS-485 The RS-485 serial port consists of TRX+(RX+) and TRX-(RX-) as following the following image. 485 Device RS-485 Connection www.rivatech.de...
-
Page 14: Configuration
6.CONFIGURATION 6.1.Set up network environment The default IP address of your IP device is 192.168.XXX.XXX. You can find the available IP address from the MAC address of your device. Please make sure the device and your PC are on the same network segment before running the installation. If the network segment between your PC and the device is different, change your PC’s settings as below. -
Page 15: View Video On Web Page
6.2. View video on web page View the live video on a web page using your IP device and its IP address. You can use the IPAdminTool or enter the IP address on the web page. 6.2.1. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. -
Page 16: View Video Using Ip Address
setup.exe If the ActiveX file fails to be installed successfully, close all of the Internet Explorer windows and go to Program Files > Uninstall.exe AxInstall folder on your computer. Then, run and try to Note perform the steps 1 to 4 above again. 6.2.2.View video using IP address View the live video on a web page using your IP device and its IP address. -
Page 17: Factory Default
6.4. Factory Default 1. Disconnect the power supply from the device. 2. Connect the power to the device with the Reset button pressed and held. 3. Release the Reset button after 5 seconds. 4. Wait for the system to reboot. The factory default settings can be inferred as follows: IP address: 192.168.xx.yy... -
Page 18: Appendix (A): Specifications
APPENDIX (A): SPECIFICATIONS Summary Camera Module Sony 1/3” Super Sony 1/3" Vertical Double Image Sensor HAD CCD, 410K Pixel Density Color CCD Effective NTSC: 768(H) x 494(V) Pixels PAL: 752(H) x 582(V) Size 1/3 inch interline transfer CCD Scanning 2:1 Interlace system NTSC: 15.734 KHz (H) 59.94 Hz(V) Sync... -
Page 19: Environment Condition
(S/W Day & Night or Removal IR Cut Filter) Electrical Characteristics Video Output 1Vp-p, 75Ω Linein, 1.43Vp-p(Min 1.35Vp-p, max 1.49 Vp-p), 39 Audio Input KΩ Audio Output Lineout, 46mW Power, 16 Ω Sensor(D/I) TTL level 4.5V threshold, Max 50mA Alarm(D/O) Max 500mA@24VAC or 1A@12VDC Power Source DC 12V / PoE IEEE802.3af (Class 0) -
Page 20: Mechanical Condition
Operating Temperature -10 ˚C ~ 50 ˚C (14˚F ~ 122 ˚F) Operating Humidity Up to 85% RH Mechanical Condition Material Aluminum Die Casting Color White Housing: 150.8 (ø) x 113(H) mm, Dimension Dome: 100 (ø) mm Weight (Approx) 1,100g www.rivatech.de... -
Page 21: Appendix (B): Power Over Ethernet
APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over- Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables. The PoE module signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. -
Page 22: Appendix (C): Dimensions
APPENDIX (C): DIMENSIONS (Unit: mm) www.rivatech.de... -
Page 23: Appendix (D): Hexadecimal-Decimal Conversion Table
APPENDIX (D): HEXADECIMAL- DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec 00 0 94 148 25 37 4A 74 6F 111... -
Page 24: Revision History
REVISION HISTORY MAN# DATE(M/D/Y) Comments 01A.01 01/27/2009 Created. 01A.02 06/23/2009 Modified 01A.03 06/25/2009 Added Trouble Shooting 01A.04 06/25/2009 Added Model specification 02A.00 07/24/2009 FW 1.00.07 official release version 02A.01 08/06/2009 PoE is supported by default. Added images to package contents 02A.02 08/24/2009 Added the requirement of VCA : MSXML4.0...
