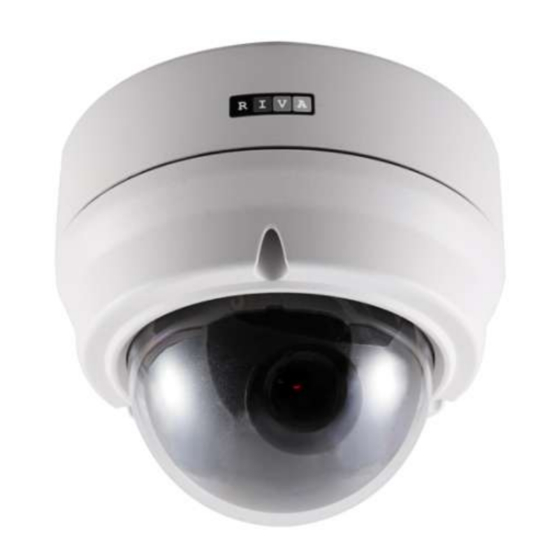

Page 1: Quick Installation Guide
Quick Installation Guide This manual provides instructions for quick installation and basic configuration of your IP device. www.rivatech.de... - Page 2 Step1. Connect cables to IP device Connect required cables to the device including the power cable, LAN cable, and other optional cables. To see the correct positions of all connectors, refer to the following image below. PAL, NTSC button Pressing button cycles through PAL, NTSC, and no video...
- Page 3 Step2. Install IP device Place the installation template that is provided in the package on the desired position of installation. Attach the waterproof protection pad on the bottom plate of the device. Drill three holes on the template and insert anchor blocks into the holes.
- Page 4 Step3. Set the lens position 1) Remove the dome cover. 2) Adjust the lens to the desired position by manually moving its body in the following directions. After adjustment, fasten the screw of the rotation axis. B. Pan the lens bottom C.
-
Page 5: Step4. Set Up Network Environment
Step4. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. Be sure that the device and PC are on a same area network before running the installation. -
Page 6: Custom Ip Environment
Custom IP Environment IPAdminTool and the manual are provided on USB stick or can download from www.rivatech.de homepage. IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. - Page 7 Give new unique IP address in last two sets and mirror other PC environment Info information in other boxes 3. In the IP Setup’s window, information under ‘Local Network information’ displays the user/PC’s network area information. Those information need to be incorporated to the IP Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP Address, which are to be the unique numbers for the device.
- Page 8 Once the device has the proper IP address, users can view the live streaming images through a web browser. root / pass The default username and password is When the device’s web address is accessed, the browser asks to install the ActiveX. Click Allow.
- Page 9 3. Follow the instructions of the dialog boxes and complete the installation. Once the installation is complete, start the web browser again and check if video stream is displayed in the main view frame. This software requires the Microsoft XML Parser V6 or higher. If “...
-
Page 10: Resetting To The Factory Default Settings
Rebooting Perform the following procedures to reset your device: 1. While the device is on, press the reset button for 1~2 seconds. 2. Wait for the system to reboot. Resetting to the Factory Default Settings When reset the device to the factory default setting, all parameters including the IP address will be initialized. - Page 11 Hexadecimal-Decimal Conversion Table Refer to the following table when you convert the MAC address of your device to IP address. Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec 25 37 4A 74 6F 111 94 148 B9 185 DE 222...
