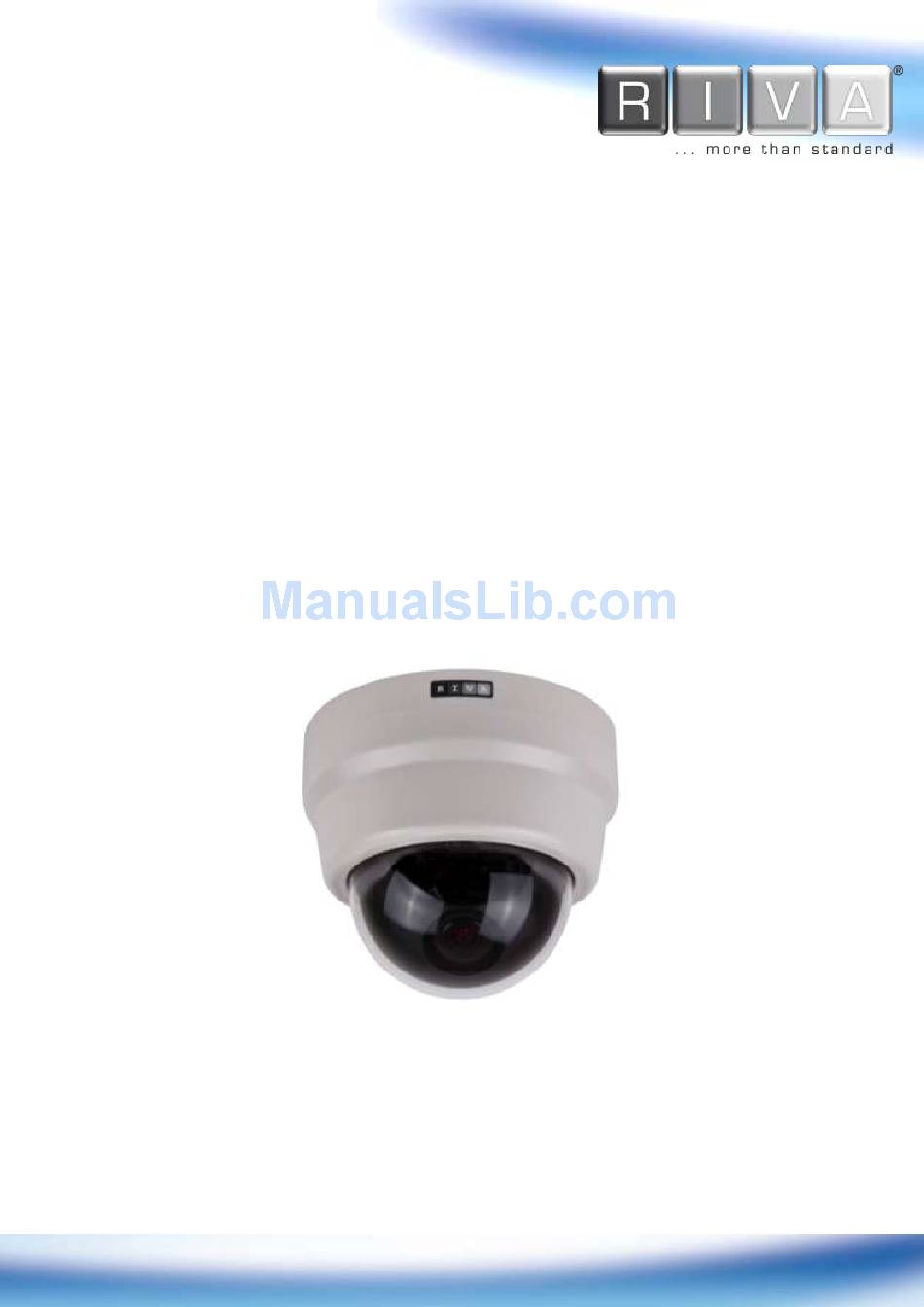

Page 1: Installation Guide
RC3102HD-5211 Installation Guide www.rivatech.de... -
Page 2: Information To User
01A.06 INFORMATION TO USER CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). CONTACT QUALIFIED SERVICE PERSONNEL FOR INTERNAL PARTS. This symbol is intended to alert the user the presence of un- insulated “dangerous voltage”... -
Page 3: Table Of Contents
01A.06 Table of Contents 1. FEATURES ................4 2. PACKAGE CONTENTS ..............5 3. PART NAMES ................6 4. INSTALLATION ................8 4.1. Installation Template ......Fehler! Textmarke nicht definiert. 4.2. Setting the Lens Position .............. 10 4.3. Setting the Image Attribute ............11 5. -
Page 4: Features

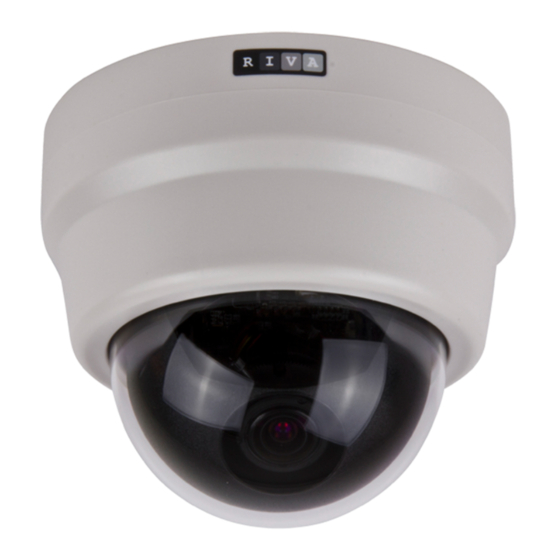

1.FEATURES Camera Full HD indoor dome IP camera (Vandal proof) High quality compression in real time streaming 1/2.7” High Quality CMOS Image Sensor True Day / Night (ICR) Improved color rolling suppression Streaming Dual streaming mode (such as different codec/resolution/bit rate and so on.) ... -
Page 5: Package Contents
2. PACKAGE CONTENTS The package contains main camera, DC power adaptor, DC jack cable, 9-pin and 2-pin terminal blocks, video-out cable, screws, anchors, hex wrench driver, and clamping cores. Unpack carefully and handle the equipment with care. Camera DC power adaptor DC Jack Cable 9-pin and 2-pin terminal block Video out cable... -
Page 6: Part Names
3. PART NAMES *This button is located under PCB. * Models herein and their appearance are subject to change without any prior notice. 1. PAL/NTSC button The initial factory version setting is free from PAL or NTSC. Push the button once to set as PAL format. - Page 7 3. Video output, audio and IO terminal connector A 9-pin terminal block is included in the device package. Connect this terminal block into this connector for cable connection of video output, audio input/output and digital 5. Connections input/output. Refer to section for more details.
-
Page 8: Installation
4.INSTALLATION Place the installation template (paper) that included package on the desired installation surface. Drill three holes correct positions based on the template paper, and insert anchor blocks into the holes. Place the camera body and match three alignment holes with three anchor blocks. -
Page 9: Installation Template
Installation Template Installation template image’s size scale in this installation guide is not 1:1. The correct-size template design paper can be found inside the Caution package separately. www.rivatech.de... -
Page 10: Setting The Lens Position
4.2. Setting the Lens Position Instruction below describes how to set the lens positions and manually adjust zoom and focus. 1) Remove the dome cover. 2) Adjust the lens to the desired position by manually moving its reinforced body, upper lens shell, or horizontal platform in the following directions. A. -
Page 11: Setting The Image Attribute
4.3. Setting the Image Attribute Reset Through the camera’s webpage, users can configure image settings. The camera image’s brightness, contrast, saturation and sharpness are adjustable through the image settings. (Setup > Video & Audio > Camera). 5.CONNECTIONS N / A N / A N / A N / A... - Page 12 2. Sensor (DI) connection The camera provides 1 channel D/I. It can be connected to either a voltage type sensor or a relay type sensor as the following figures. Settings can be done through the camera’s webpage. Input voltage range: 0VDC minimum to 5VDC maximum, Max 50mA Input voltage threshold: 1.5V Do not exceed the maximum input voltage or relay rate.
- Page 13 3. Alarm (DO) connection Only the relay type is supported. Relay Rating: Max 24VDC 50mA Do not exceed the maximum relay rating. Caution Internal Device Relay Type 4. Video output The camera provides 1 video out. Please note that the analog video signal is only 3 minutes present after pushing the PAL/NTSC button and go back automatically to none video output mode (only installation process).
- Page 14 5. LAN connection This is a RJ45 LAN connector for 10/100 Base-T Ethernet. Connect a LAN cable. Green Orange When the device is powered-on, both LEDs blink for a second. Then the orange LED turns on initially for a while, and eventually green LED turns on when the device is ready.
-
Page 15: Configuration
6.CONFIGURATION 6.1.Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. Be sure that the device and PC are on a same area network before running the installation. -
Page 16: Custom Ip Environment
6.1.2. Custom IP Environment IPAdminTool and the manual are provided on USB stick or can download from homepage. www.rivatech.de IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. -
Page 17: View Video On Web Page
3. In the IP Setup’s window, information under ‘Local Network information’ displays the user/PC’s network area information. Those information need to be incorporated to the IP Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP Address, which are to be the unique numbers for the device. Refer to the image above for the setting 4. - Page 18 3. Follow the instructions of the dialog boxes and complete the installation. Once the installation is complete, start the web browser again and check if video stream is displayed in the main view frame. This software requires the Microsoft XML Parser V6 or higher. If “...
-
Page 19: View Video Using Ipadmin Tool
6.2.1. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. IPAdminTool is provided on USB stick or can download from homepage. www.rivatech.de 1. From the IPAdminTool’s product list, select the device by highlighting it. 2. -
Page 20: Reset
6.3. Reset 1. Push the Reset button and hold for 1~2 seconds. 2. Wait for the system to reboot. 6.4. Factory Default If you reset your device to the factory default setting, all parameters including the IP address will be initialized. To proceed back to the Factory Default reset: 1. -
Page 21: Appendix (A): Specifications
APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/2.7” 1080p CMOS Effective 1920x1080 CMOS Pixels Scanning Progressive scanning system Resolution 1920 x 1080 ELECTRIC Min. Color: 0.5 lux, F1.2 Illumination BW: 0.001 lux, F1.2 AGC Control Auto Lens 3.0~9.0mm Vari-Focal F1.2 Day &... -
Page 22: Electrical Characteristics
Electrical Characteristics Power Source DC 12V / PoE IEEE802.3af (Class 0) Power Consumption 460mA Video Output 1 Vp-p, 75Ω, Composite (for installation only) Audio Input Linein, 1.43Vp-p(Min 1.35Vp-p, max 1.49 Vp-p), 39 KΩ Audio Output Lineout, 46mW Power, 16 Ω Max 50mA@5VDC, TTL level 1.5V threshold Max 50mA@24VDC On-state resistance: 50 Ω... -
Page 23: Appendix (B): Power Over Ethernet
APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over- Ethernet (PoE) standard. The IEEE 802.3af-2003 standard allows up to 15.4 W power to device. However, 12.95W is the maximum available power, as some power gets lost in the cable. -
Page 24: Appendix (C): Dimensions
APPENDIX (C): DIMENSIONS (Unit: mm) www.rivatech.de... -
Page 25: Appendix (D): Hexadecimal-Decimal Conversion Table
APPENDIX (D): HEXADECIMAL- DECIMAL CONVERSION TABLE Refer to the following table when converting the MAC address of the device to the IP address. Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec 94 148 25 37 4A 74 6F 111 B9 185... -
Page 26: Revision History
REVISION HISTORY MAN# DATE(M/D/Y) Comments 01A.01 05/02/2012 First release version 01A.02 06/01/2012 Power consumption, illumination variable update 01A.03 06/12/2012 Video, PAL/NTSC description update 01A.04 06/22/2012 PCB description add 01A.05 06/25/2012 DI/DO specification correction 01A.06 07/03/2012 Supporting protocol revised. (removed SOCK and SSH) www.rivatech.de...
