Quick Installation Guide

This manual provides instructions for quick installation and basic configuration of your IP device.
www.rivatech.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC3302HD-5344 and is the answer not in the manual?

Questions and answers

Related Manuals for Riva RC3302HD-5344

Summary of Contents for Riva RC3302HD-5344

  • Page 1: Quick Installation Guide

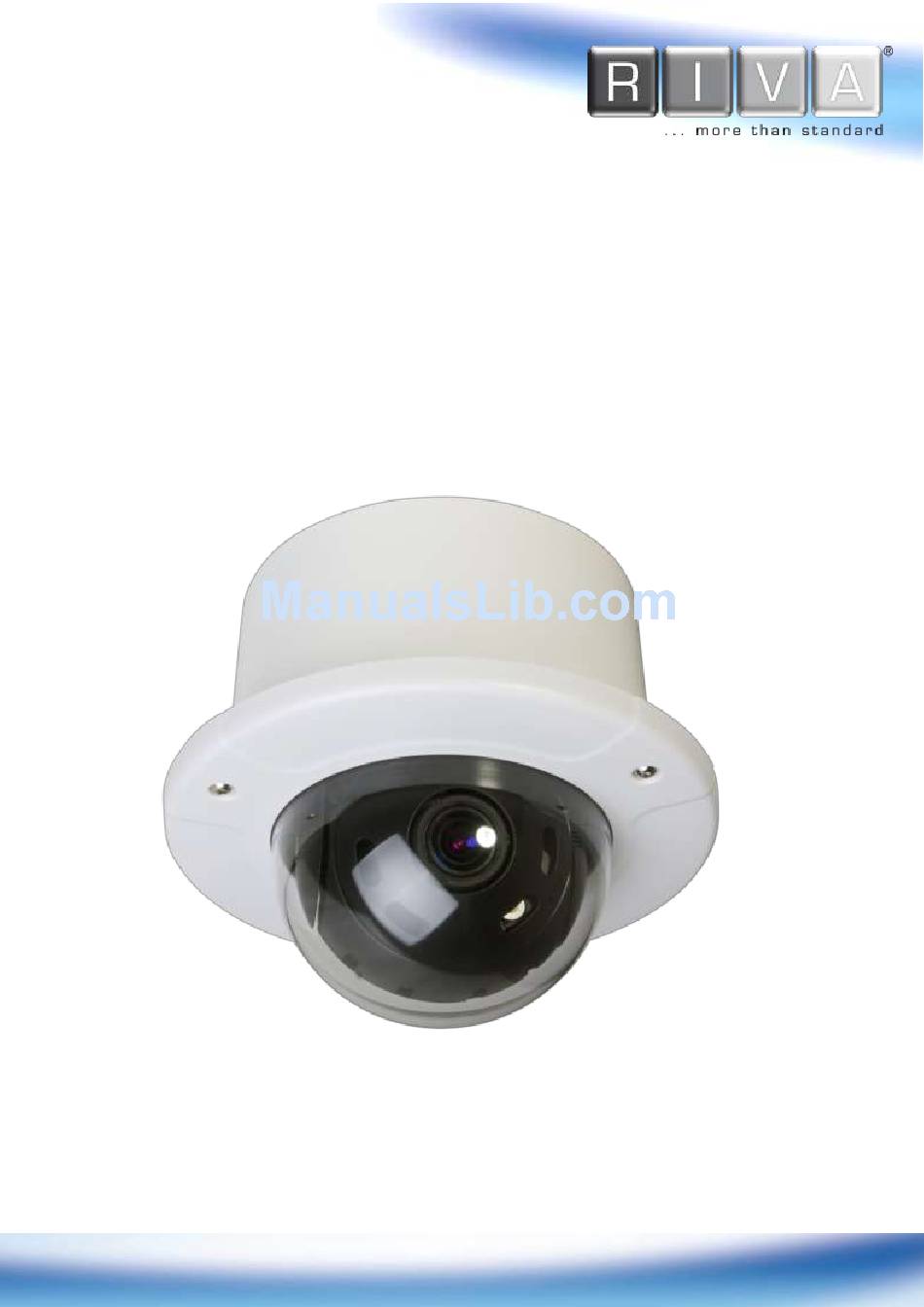

    Quick Installation Guide This manual provides instructions for quick installation and basic configuration of your IP device. www.rivatech.de...
  • Page 2 Step1. Connect cables to IP device Connect required cables to the device including the power cable, LAN cable, and other optional cables. To see the correct positions of all connectors, refer to the following image below. Pan/Tilt and Lens control buttons PAL, NTSC Reset Button button...
  • Page 3 Step2. Install IP device 1) Place the installation template that is provided in the package on the desired position of installation. 2) Drill four holes on the template and insert anchor blocks into the holes. Fasten camera with screws. 3) Insert the camera body to the installation surface and match three alignment holes with three anchor blocks.
  • Page 4 Step3. Set the lens position 1) Remove the dome cover. 2) Pan and tilt the lens to the desired position by pressing buttons on the body in the following directions. Rotate the lens by moving after loose screw behind the lens as marked below and fasten the screw after finish the rotation.

  • Page 5: Step4. Set Up Network Environment

    Step4. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. Be sure that the device and PC are on a same area network before running the installation.
  • Page 6 IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. To modify the device’s default IP address for customized network area; 1.

  • Page 7: Step5. View Video On Web Page

    3. In the IP Setup’s window, information under ‘Local Network information’ displays the user/PC’s network area information. Those information need to be incorporated to the IP Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP Address, which are to be the unique numbers for the device.
  • Page 8 2. Setup.exe installation link or pop-up window appears, depends on Microsoft® Internet Explorer version. Proceed with rest of setup installation. 3. Follow the instructions of the dialog boxes and complete the installation. Once the installation is complete, start the web browser again and check if video stream is displayed in the main view frame.

  • Page 9: Resetting To The Factory Default Settings

    Rebooting Perform the following procedures to reset your device: 1. While the device is on, press the reset button for 1~2 seconds. 2. Wait for the system to reboot. Resetting to the Factory Default Settings When reset the device to the factory default setting, all parameters including the IP address will be initialized.

  • Page 10: Hexadecimal-Decimal Conversion Table

    Hexadecimal-Decimal Conversion Table Refer to the following table when you convert the MAC address of your device to IP address. Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec 25 37 4A 74 6F 111 94 148 B9 185 DE 222...
