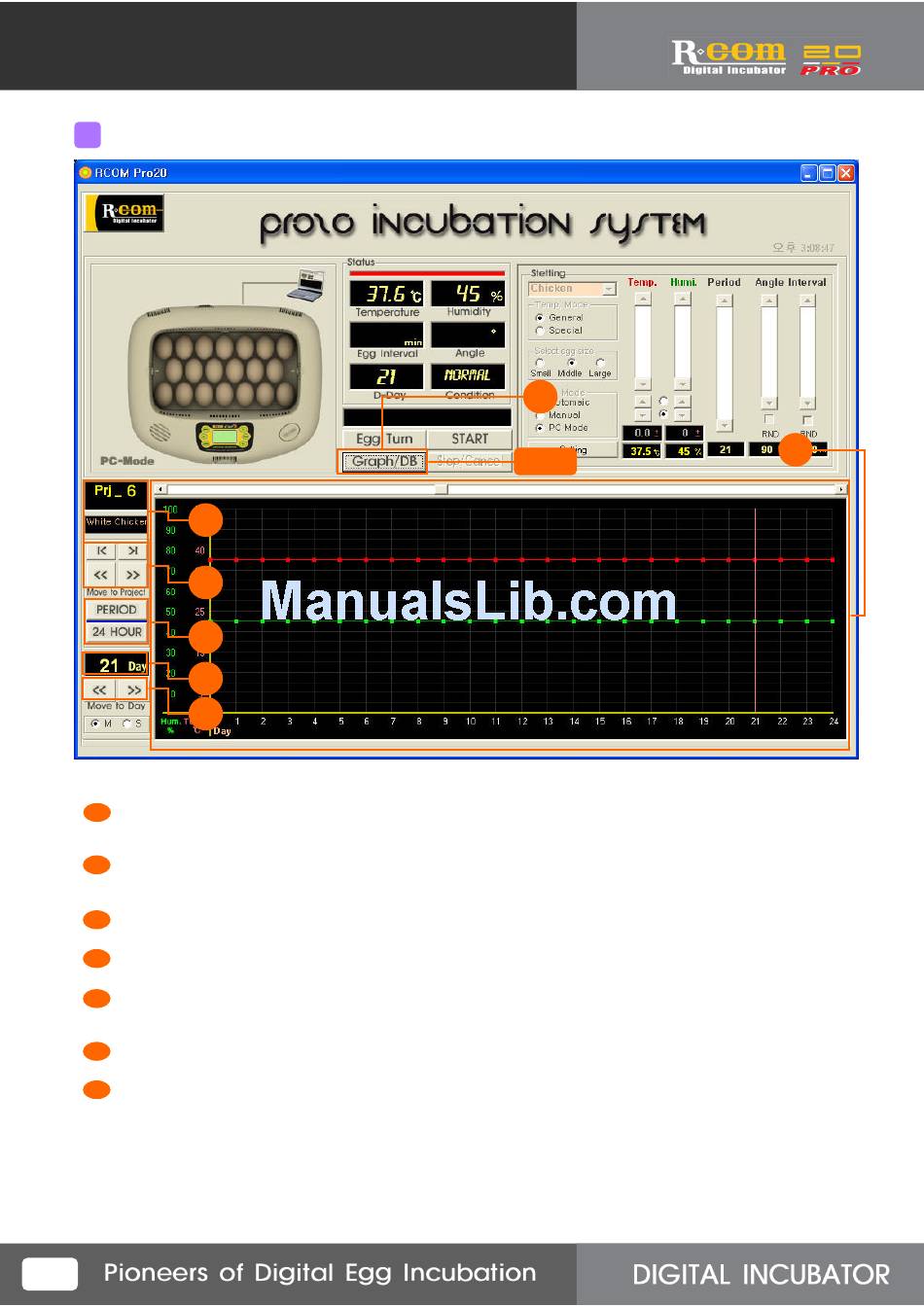

Name of each parts on the Graphic screen
3
4
5
6
7
"Graph" button functions convert Graph screen and DB screen. If you click, it makes a graph of setting Temp.
1
&humidity as above, and also makes a graph of real-time incubator Temp. &humidity at 10min. intervals.
2 Indicating temp. &humidity graph setting value.
Indicating incubator real-time temperature & humidity at 10min. intervals.
3
Selected graph's project No. and name.
Button for move and select project.
4
If you click "PERIOD" button, it shows only indicated days,
5
and if you click "24 HOUR" button, it shows a day's record.
6 Indicating selected incubation date among all incubation period.
Button for move and select incubation date.
7
