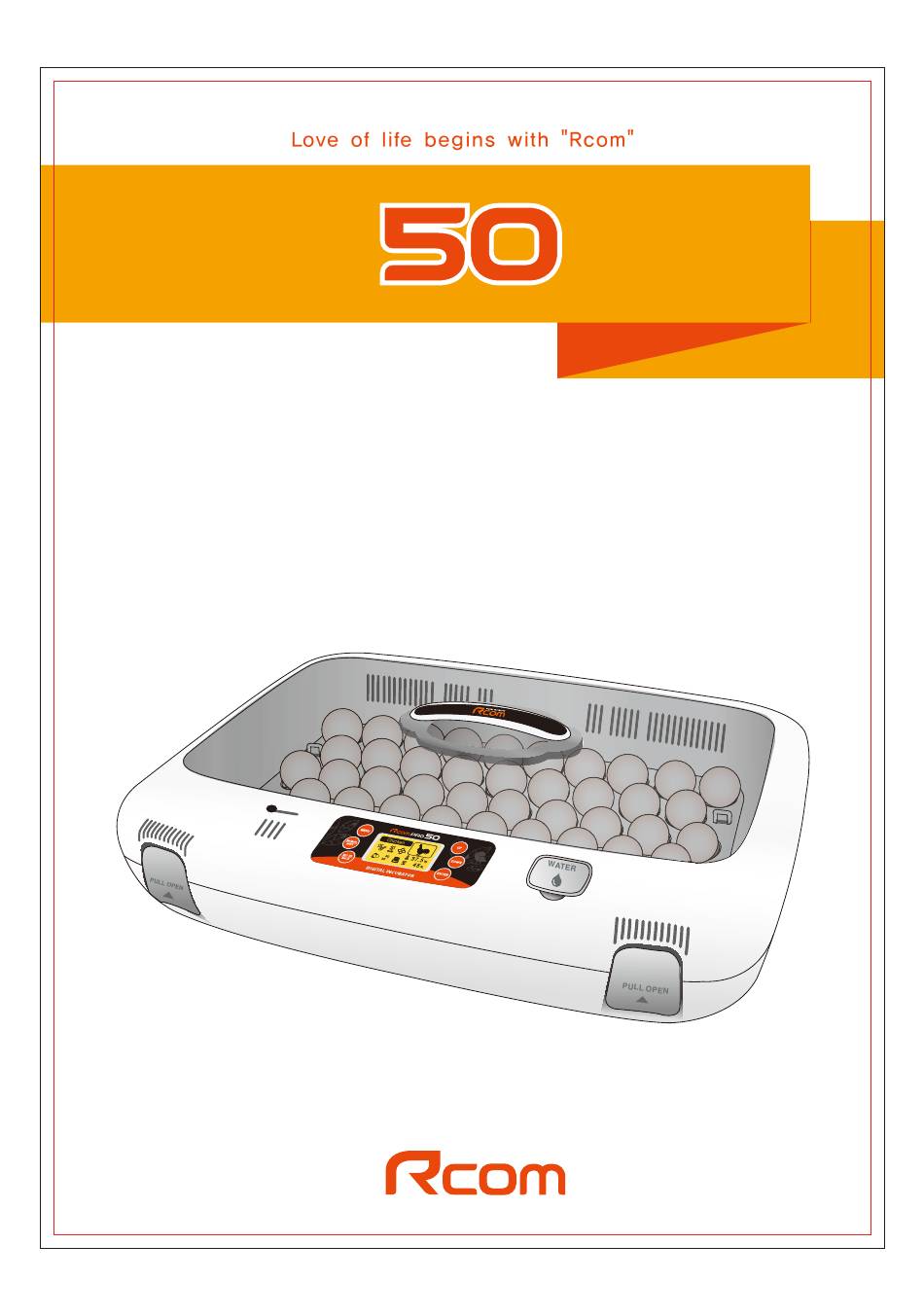

- Page 1 USA & Canada Official Sales & Service https://www.R-Com-Hatcher.com REV. 3.0 DIGITAL EGG INCUBATOR USER'S MANUAL USB 50 / PRO 50 Egg Incubator Hatcher Rcom USB and Pro 50 User Manual...
- Page 2 USA & Canada Official Sales & Service https://www.R-Com-Hatcher.com Contents How to use Rcom USB 50 / Rcom PRO 50 1. Introduction (1) Rcom 50 Introduction (3) Identification of Parts Introduction (4) Basic Components (5) Function of Digital Control & How to Operate (6) SET UP(Other Functions) / Easy Function Operation 2.
- Page 3 References or useful suggestions in using Rcom product Warning of actions which may be dangerous or cause damage to the incubator. For Rcom USB 50 MODEL PC connecting, refer to the PC-SOFTWARE manual. Egg Incubator Hatcher Rcom USB and Pro 50 User Manual...
- Page 4 Rcom 50 Thank you for choosing the Rcom incubator. The Rcom 50 incubator is the first incubator with creditability to have a superior design and function which help in controlling optimum incubation conditions. It has two sensors, one for detecting surrounding environments and the another for internal incubator conditions.
- Page 5 ▶ If you don't clean the inside of incubator for a long time, dust can cause some trouble or a fire. Egg Incubator Hatcher Rcom USB and Pro 50 User Manual...
- Page 6 USB Cable Connecting Socket Connecting the USB cable. (EX:RCM0950278) You can set and store Power Connecting Socket incubation conditions with your Computer. Connecting the electric cord < USB MODEL Only > Egg Incubator Hatcher Rcom USB and Pro 50 User Manual...
- Page 7 < USB MODEL > Large Egg Tray PC SOFTWARE CD Universal Tray Divider(10EA) USB Cable Universal Tray SET Rolling Divider SET USB MODEL - You can download updated information at www.RcomCo.com Egg Incubator Hatcher Rcom USB and Pro 50 User Manual...
- Page 8 Current Humidity Display Humidification Operation Humidification function OFF Display Water Supplement Egg Turning Interval Indication Humidity Abnormal Egg Turning Angle Indication PC Connecting Power Failure Notification Alarm < USB MODEL > Egg Incubator Hatcher Rcom USB and Pro 50 User Manual...
- Page 9 (Factory Setting) How to change How to turn off Humidification Function Screen "OFF" In case of low humidity on Incubation UNDER 30% incubation Setting Value Egg Turning Test Check 5 Sec. Egg Incubator Hatcher Rcom USB and Pro 50 User Manual...
- Page 10 ▶ If you do not assemble egg turning place correctly, it can cuase incubator failure. Main Body-2 ▶ Gear connecting part of egg turning plate must be on the top side. Egg Incubator Hatcher Rcom USB and Pro 50 User Manual...
- Page 11 (When using this function, the alarm for sensing water drop will go out.) [See the description of humidification function OFF on Page 18] ※ How to turn off Humidification Function : Set humidity level at RH 30%. Egg Incubator Hatcher Rcom USB and Pro 50 User Manual...
- Page 12 Be careful to close the view window completely; if not, the temperature and humidity will fail to go up. The egg to incubate must be a fertilized egg. (Refer to the guidebook.) Egg Incubator Hatcher Rcom USB and Pro 50 User Manual...
- Page 13 (1) Incubation Modes / 3. Function Setting Incubation start with Automatic Mode Rcom Pro 50 incubator has two modes as automatic and manual mode, Incubation Modes and Rcom USB 50 incubator has three modes as automatic, manual, and PC connecting mode.
- Page 14 Temperature and humidity is optimized when Rcom products are released. We do no recommend customers to recalibrate by their own. If you need to recalibrate, please visit our Because of low price thermometers and hygrometers are not accurate, e recommend you to use special calibrated thermo-hydrometer.
- Page 15 ※ Incubation date setting cannot be changed during incubation. [ Setting Finish and Incubation Start ] ▶ After setting incubation date, press ENTER button to start incubation with melody. [Incubation Start Notification] [During Incubation] Egg Incubator Hatcher Rcom USB and Pro 50 User Manual...
- Page 16 [Egg Turning Angle Setting] This function is used if you want to continue incubation without termination with same setting. [Egg Turning Interval, [Incubation Start Notification] [During Incubation] Incubation Date Setting] Egg Incubator Hatcher Rcom USB and Pro 50 User Manual...
- Page 17 If you press ENTER button once again, LCD display SET UP goes off with message & alarm. Incubator returns to BACK factory setting after about 15 sec. WARNING Display goes off Initialization after about 15sec. Egg Incubator Hatcher Rcom USB and Pro 50 User Manual...
- Page 18 ▶ Press MANUAL button 4 times and then press DOWN button continuously until OFF indication is showing. Then, press ENTER button to turn humidification off. If you want to humidification turn ON, set humidity over 30% 4Times 5Times [Humidification ON] [Humidification OFF] Egg Incubator Hatcher Rcom USB and Pro 50 User Manual...
- Page 19 ▶ When you first switch on the power, or in case of power failure during incubation, display shows this icon and incubator and incubator alarm sounds for about 10sec. Press ENTER to remove. Egg Incubator Hatcher Rcom USB and Pro 50 User Manual...
- Page 20 (Please move all the eggs 1~3 days before hatching into Hatcher or Brooder.) Hatcher : The machine for egg-hatching. Operate it 1~3 days before egg-hatching. (Rcom MARU H&B) Brooder : The machine makes baby chickens or birds warm up against cold or cool environment. You can set up proper temperature and humidity.
- Page 21 We kindly recommend you to use distilled water In order to reduce a foreign substance on the humidifying heater device. Egg Incubator Hatcher Rcom USB and Pro 50 User Manual...
- Page 22 [Refer to How to assemble on Page 10.] Don't clean the product with organic solvents such as benzene, thinner, etc. which may cause deformation or decoloration. Egg Incubator Hatcher Rcom USB and Pro 50 User Manual...
- Page 23 Frequently Asked Questions (FAQ) Servicing All our Rcom digital incubators of Autoelex Co., Ltd. are made by precision systems under strict quality control. But occasionally some defective products are found on the way of their distribution. If any problem occurs, then please contact Rcom service center or distributorsin your country.
- Page 24 Place incubator under a level surface. the machine. surface. Check if it is Dew condensation Be sure that the incubator works without any problem before placing eggs in the incubator. Egg Incubator Hatcher Rcom USB and Pro 50 User Manual...
- Page 25 USA & Canada Official Sales & Service https://www.R-Com-Hatcher.com 7. Product Information (3) Specification 1-1 Name : Rcom USB 50 / Rcom PRO 50 Specification Specification 1-2 Model : UX-50 / PX-50 1-3 Supporting Soft : Rcom USB 50 INCUBATION SYSTEM (WINDOWS)
- Page 26 USA & Canada Official Sales & Service https://www.R-Com-Hatcher.com Rcom USB 50, PRO 50, MAX 50 PART LIST Names of goods Names of goods Image P a rt N o Image P a rt N o (*.Compatible) (*.Compatible) H50 SMPS H50-A641-10...
- Page 27 USA & Canada Official Sales & Service https://www.R-Com-Hatcher.com Rcom USB 50, PRO 50, MAX 50 PART LIST Names of goods Names of goods Image P a rt N o Image P a rt N o (*.Compatible) (*.Compatible) H50-H621-10 H50 Small Tray...
- Page 28 USA & Canada Official Sales & Service https://www.R-Com-Hatcher.com www.RcomCo.com North America Sales & Service MANUFACTURER www.RcomCo.com Egg Incubator Hatcher Rcom USB and Pro 50 User Manual...
