5.4.1

Settings and Troubleshooting

Setting
Head Resistance
Print Left of Form
Image Darkness
Print Top of Form
June 2014
Description
Printhead resistance is set
to an incorrect value.
Adjusts the vertical
position of the printed
image on the card; so it
appears centered.
Adjusts the overall
darkness of the printed
image by increasing or
decreasing the amount of
heat used by the
printhead when printing.
Adjusts the length-wise or
horizontal position of the
printed image on the card
(so it appears to be
centered)
ToolBox
Troubleshooting
Locate the actual resistance value on the
printhead, for example, R=XXX.
Reserved

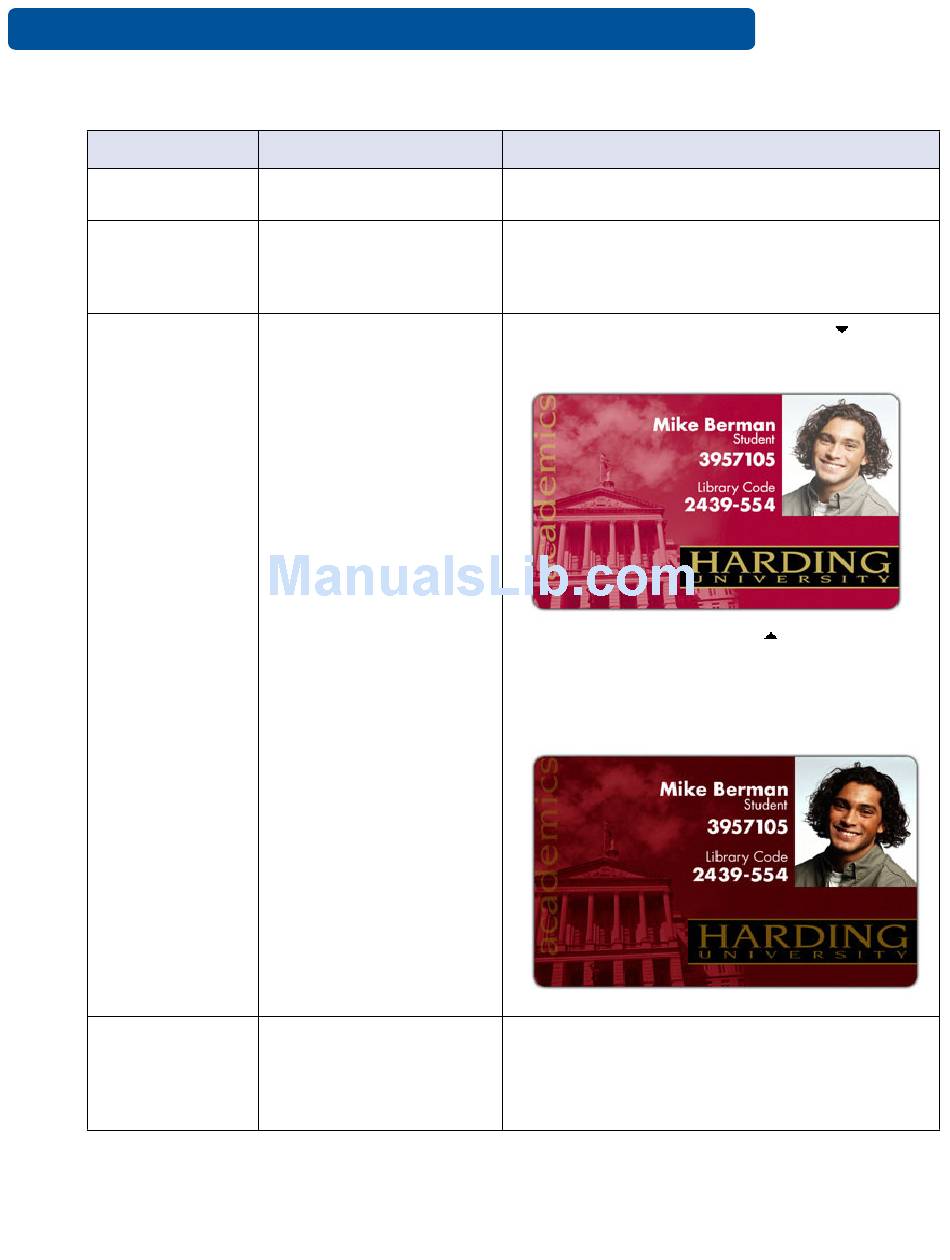

Lighten the printed image by clicking
the exact negative value decreasing the
printhead heat.
Darken the image by clicking
positive value increasing the amount of
printhead heat.
IMPORTANT: If this setting is set too high, the
ribbon may jam or break.
Reserved
or enter
or entering a
