Exerpeutic 1220.2 Owner's Manual

Exerpeutic 1220.2 Owner's Manual

Indoor training bike
Hide thumbs
Table of Contents

Advertisement

Quick Links

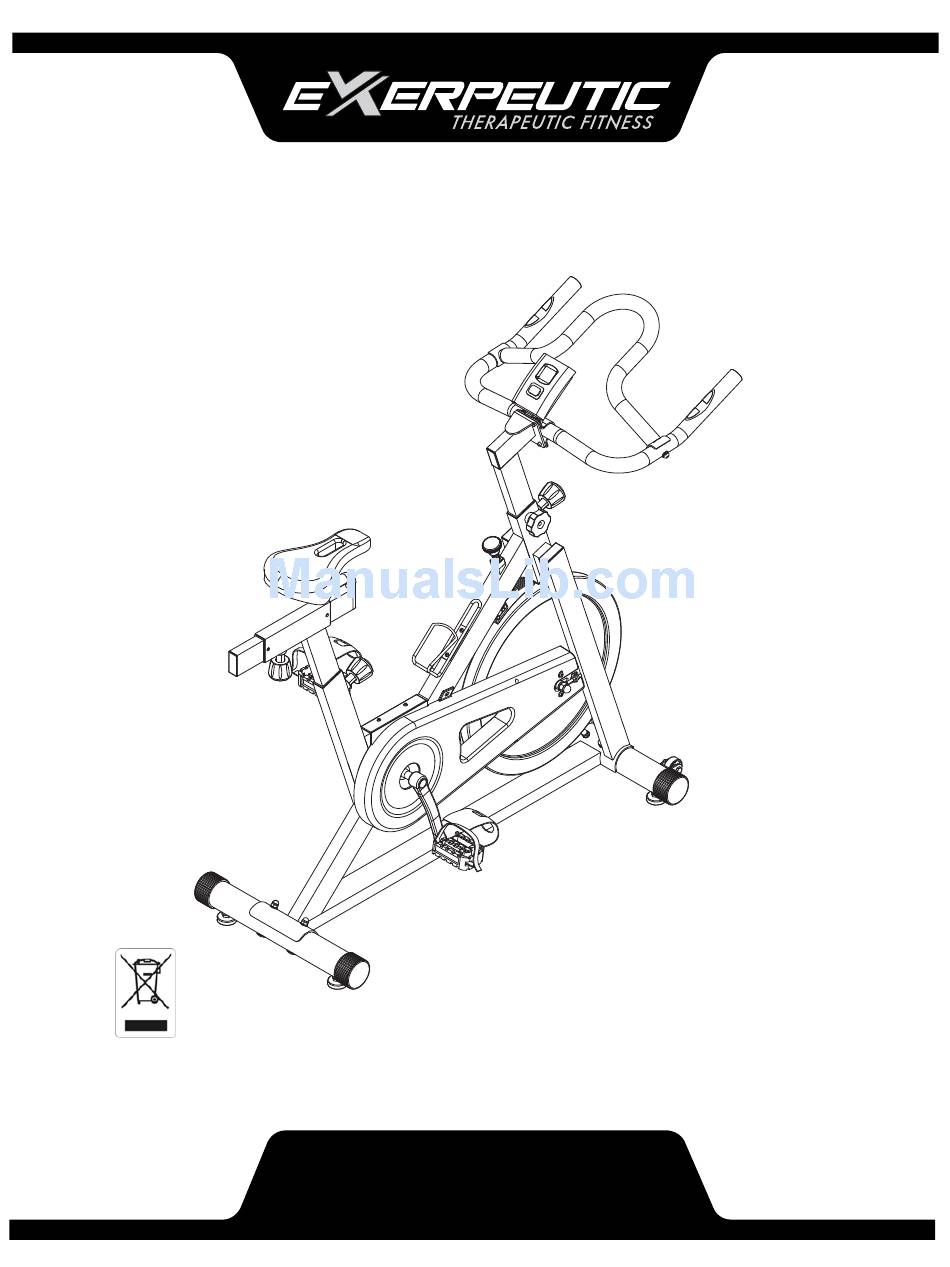

INDOOR TRAINING BIKE
IMPORTANT: Read all instructions carefully before using this product. Retain
this owner's manual for future reference.
The specifications of this product may vary from this photo, subject to change
without notice.
OWNER'S MANUAL
1220.2‐050916

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1220.2 and is the answer not in the manual?

Questions and answers

Related Manuals for Exerpeutic 1220.2

Summary of Contents for Exerpeutic 1220.2

  • Page 1 INDOOR TRAINING BIKE  IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo, subject to change without notice. OWNER’S MANUAL  1220.2‐050916 ...
  • Page 2  ...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS  SERVICE ------------------------------------------------------------------------ 2 LABEL PLACEMENT --------------------------------------------------------- 3 PRODUCT SAFETY ---------------------------------------------------------- 4 OVERVIEW DRAWING ------------------------------------------------------ 5 PARTS LIST --------------------------------------------------------------------- 6 HARDWARE & TOOLS PACK---------------------------------------------- 7 ASSEMBLY --------------------------------------------------------------------- 8 COMPUTER --------------------------------------------------------------------- 15 ADJUSTMENTS ---------------------------------------------------------------- 16 EMERGENCY STOP ---------------------------------------------------------- 18 MOVING THE BIKE ----------------------------------------------------------- 19 TROUBLE SHOOTING &...

  • Page 4: Service

      SERVICE IMPORTANT: FOR NORTH AMERICA ONLY For damaged or defective product, questions, replacement parts or any other service support, please contact our customer service department (8:00 AM - 5:00 PM Pacific Standard Time, Daily) by the below methods: For Best Service, please Email: Service@paradigmhw.com Response Time: 1-2 Business Days Website:...

  • Page 5: Label Placement

      LABEL PLACEMENT...

  • Page 6: Product Safety

      PRODUCT SAFETY Basic precautions should always be followed when using this equipment. Read all instructions before using this equipment which include the following safety instructions: Read all the instructions in this manual and do warm up exercises before using this equipment. Before exercising, and in order to avoid injuring your muscles, it is recommended that you perform warm-up exercises for every muscle group.

  • Page 7: Overview Drawing

      OVERVIEW DRAWING...

  • Page 8: Parts List

      PARTS LIST Description Main Frame Front Stabilizer Rear Stabilizer Seat Post Seat Slide Tube Handlebar Post Hand Pulse Handlebar Handlebar 14 Right Pedal 15 Left Pedal 19 Adjustable leveler M12*30 20 Carriage Bolt M8*75 21 Curved Washer φ8*φ16*1.5 22 Cap Nut M8 37 Round Knob M16*1.5*18 41 Seat DD-6619 66 Lock Knob M16*1.5*20...

  • Page 9: Hardware & Tools Pack

    HARDWARE & TOOLS PACK  Step 6 (84) Hex Bolt M8x45 2PCS (90) Big Curve Washer φ8xφ20x2 2PCS (77) Spring Washer φ8 2PCS Step 7 (20) Carriage Bolt M8x75 4PCS (76) Hex Bolt M8x20 2PCS (21) Curve Washer φ8xφ16x1.5 4PCS (78) Flat Washer φ8xφ16x1.5 2PCS (77) Spring Washer φ8 4PCS...

  • Page 10: Assembly

      ASSEMBLY Tool: 13, 15mm Double Open Ended Wrench 2PCS 20 20 Attach four Adjustable Levelers (19) onto the Front and Rear Stabilizer (2/3) as shown in Fig. AA-1. Front and Rear Stabilizer Installation Remove the Metal Protective Tube and all hardware. This will not be used in installation and should be discarded.
  • Page 11   ASSEMBLY Tool: The Cranks, Pedal Straps, Pedal Shafts, and Foot Pedals are marked “R” for Right and “L” for Left. 13, 15mm Double Open Ended Wrench Important: Screw the Right Foot Pedal (14) into the right crank clockwise! Screw the Left Foot Pedal (15) into the Left crank 2.
  • Page 12   ASSEMBLY 3. Seat Post Installation Turn the Round Knob (37) on the Main Frame (1) in a counterclockwise direction until it can be pulled out. Pull out the Round Knob (37) and slide the Seat Post (4) into the slot on the back of the Mainframe (1). Lock the Seat Post (4) in place by releasing the Round Knob (37) and sliding the Seat Post (4) up or down slightly until the Round Knob (37) "pops"...
  • Page 13   ASSEMBLY Tool: 13, 15mm Double Open Ended Wrench 5. Handlebar Post Installation a. Insert the Handlebar Post (6) into the tube of the Main Frame (1). Attach the Round Knob (10) onto the tube of the Main Frame (1) by turning it in a clockwise direction. b.
  • Page 14   ASSEMBLY Tool: 6mm Allen Wrench 6. Handlebar Installation Attach the Handlebar (8) onto the Hand Pulse Handlebar (7) using two Big Curve Washers (90), two Spring Washers (77), and two Hex Bolts (84). Tighten bolts with the 6mm Allen Wrench provided. Hardware: No.
  • Page 15   ASSEMBLY 78 78 77 Tool: 6mm Allen Wrench 13, 15mm Double Open Ended Wrench 7. Hand Pulse Handlebar and Computer Bracket Installation Attach the Computer Bracket (7) and Hand Pulse Handlebar (7) onto the Handlebar Post (2) using four Hex Bolts (76), four Spring Washers (78), four Flat Washers (77) and two Lock Nuts (89).
  • Page 16   ASSEMBLY 8. Connecting the Wires a. Attach the Console (75) onto the Console Bracket (79). b. Connect the Sensor Wire (87) to the wire that comes from the Console (75) as shown in Fig. AA-3. Plug the Hand Pulse Sensor Wire (88) into the receptacle located on the back of the Console (8).

  • Page 17: Computer

      COMPUTER USING YOUR COMPUTER The computer can be activated by pressing the “MODE” button or by pedaling. If you leave the computer idle for 4 minutes, the power will shut off automatically. BUTTON FUNCTIONS: MODE: Press the MODE button to navigate through each function of the computer. Press and hold the MODE button for 4 seconds to reset all data values to zero.

  • Page 18: Adjustments

      ADJUSTMENTS HOW TO INSTALL THE BATTERIES: Remove the battery cover on the back of the computer. Place two "SIZE-AA" batteries into the battery housing. Ensure that the batteries are correctly positioned and that the battery springs are in proper contact with the batteries. Re-install the battery cover.
  • Page 19   ADJUSTMENTS Round Knob Lock Knob Adjusting the Handlebar Height Loosen the Lock Knob and then loosen the Round Knob by turning in a counter-clockwise direction until it can be pulled out. Pull out the Round Knob and then slide the Handlebar Post up or down to a suitable position. Lock the Handlebar Post in place by releasing the Round Knob and sliding the Handlebar Post up or down slightly until the Round Knob "pops"...

  • Page 20: Emergency Stop

    EMERGENCY STOP   Round Knob Adjusting the Seat Forward or Back Loosen the Round Knob by turning it in a counter-clockwise direction. Slide the Seat Sliding Tube in a forward or backwards to a suitable position. Lock the Seat Sliding Tube in place by turning it in a clockwise direction. EMERGENCY STOP To emergency stop, press firmly down onto the BRAKE KNOB.

  • Page 21: Moving The Bike

    MOVING THE BIKE   Carefully push down on the handlebar until the rear end of the bike lifts in the air, and the wheels are touching the floor. Carefully push the bike to the desired location.

  • Page 22: Trouble Shooting & Maintenance

    TROUBLE SHOOTING & MAINTENANCE  TROUBLE SHOOTING PROBLEM: The training bike wobbles when in use. SOLUTION: Turn the adjustable leveler on the front and rear stabilizers as needed to level the training bike. PROBLEM: There is no display on the computer console. SOLUTION: Verify that the wire that comes from the console is properly connected to the sensor wire.

  • Page 23: Warranty

      WARRANTY MANUFACTURER’S LIMITED WARRANTY Paradigm Health & Wellness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with Paradigm’s Owner’s Manual.

  • Page 24: Part Request Form

      PART REQUEST FORM Paradigm Health & Wellness, Inc. EMAIL THIS FORM WITH YOUR RECIEPT OF PURCHASE TO Service@paradigmhw.com NAME: _______________________________________________________ ADDRESS: ____________________________________________________ CITY ______________ STATE ______________ ZIP ___________________ TELEPHONE: (Day) _____________________________________________ (Night) ____________________________________________ SERIAL#: _____________________________________________________ MODEL#: _____________________________________________________ PURCHASE DATE: ______________________________________________ PLACE OF PURCHASE: _________________________________________ PART # DESCRIPTION “YOUR ORDER WILL BE PROCESSED WITHIN 3 BUSINESS DAYS”...
