The Blade Assembly - Morgana DigiCreaser Operator's Manual

Adjusting the blade pressure (no paper required)
1. (i) Switch the power 'on' by turning the Emergency stop button clockwise to release the
safety latch. The display is now switched on and will show the start up menu as
shown below.
(ii) Move the selection switch to the left to select
(iii) Move the selection switch down to select
(iv) Press the system switch down.
(v) Move the selection switch to the right, the machine will activate and the blade will
move to top dead center. The display will now read Blade is moving to TOP DEAD
CENTER and then change to read
Operators Manual.
2. Raise the exit guard
3. Using a 6mm allen key, unlock the shoulder bolts (labelled with scale transfer)
positioned at each end of the creasing blade.
4. Turn the adjustment cam to adjust the blade pressure. Increasing the gradient on the
scale will increase the blade pressure.
5. Ensure that the shoulder bolts are locked after setting.

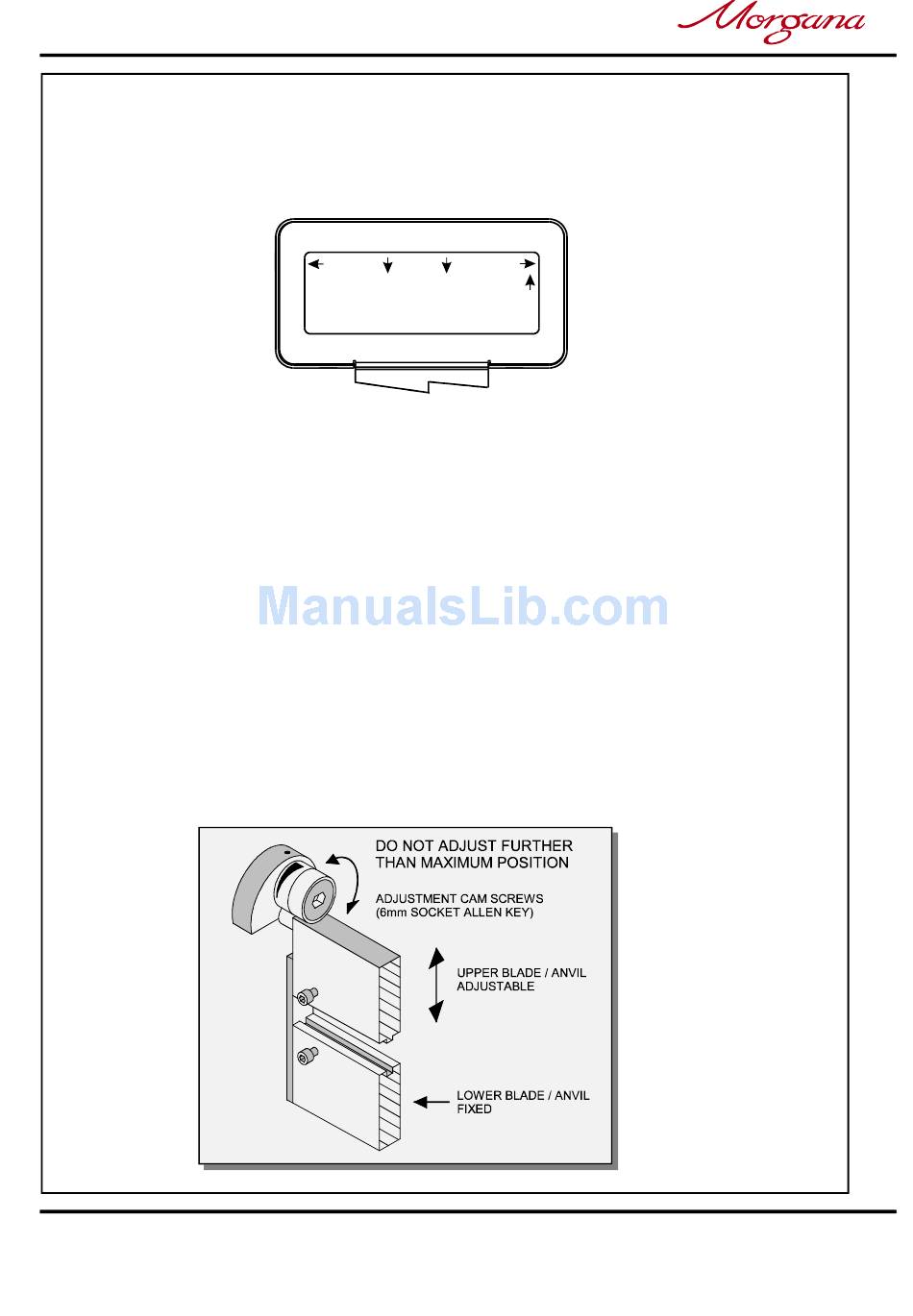

The diagram below demonstrates the adjustment of the blade pressure
Page 18

The Blade Assembly

Tools
2 Creases
Feed Setup
Zero
Total 20
Program 3
Tools .
Set Blade Pressure
Blade Pressure May Now Be Adjusted See
.
HAND FED CREASING
