Morgana DigiCreaser Operator's Manual page 17

DigiCreaser
11. Mount the other anvil ensuring that they have matched on the drive hub. Secure the
anvil to the hub ensuring not to over tighten grub screw as shown in fig 16.2.
12. Slide the drive hub towards the perforating drive wheel until there is a clearance
of 0.5mm.
13. To prevent damage to the blades or the anvils, do not force the drive wheel against
the hub.
14. Fix the perforator stripper adjacent to the drive wheel and blade as shown.
15. Operate the machine and test the perforations for form.
It is important that the drive hubs are arranged evenly across the width of the paper
in order to reduce the risk of jamming.
For multiple perforations repeat the above procedure.
5

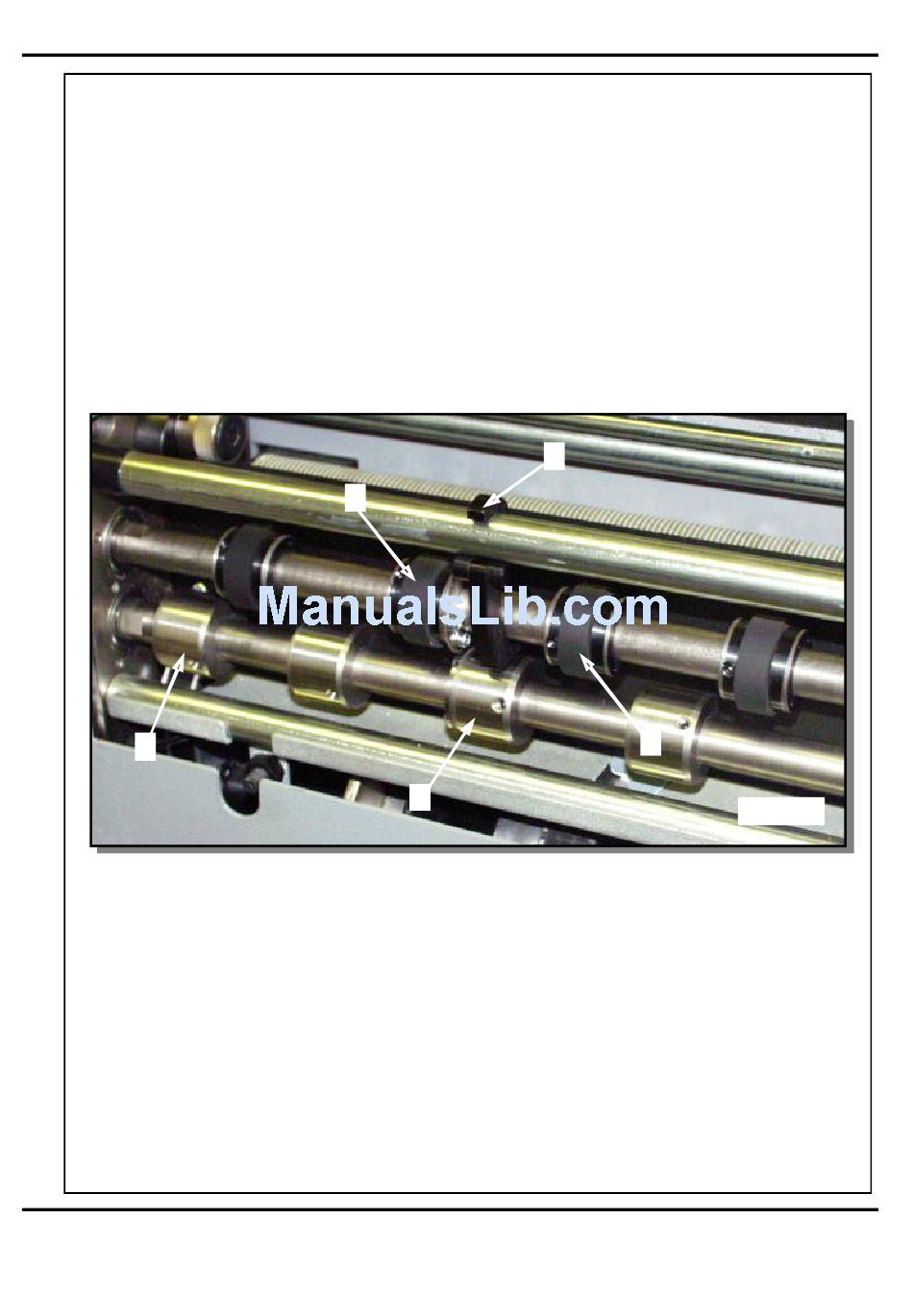

Fig 17.1 demonstrates a typical set-up for perforating sheets.
1 Perforating drive wheel with mounted blades
2 Perforator stripper
3 Standard drive wheel
Always remove blades and anvils once the perforating operation has been
completed to avoid marking on digital or delicate media.
SYSTEM
Perforating
1
4
2
3
4 Drive hub with mounted anvils
5 Standard drive hub
FIG 17.1
Page 17
