Extra dry contact input practical applications:
The extra dry contact inputs can be used to monitor many types of equipment, for example, you
can run the connection from warning lights on alarm panels to the dry contact inputs, so that
when the warning light on the alarm panel is activated, the dry contact is triggered in the units
web interface, thus allowing you to send notifications via emails or SNMP traps.

2) Installation

1. Assigning an IP address

These units are plug and play devices that will easily connect to your existing network
setup. Every unit ships with a default IP address. This is 192.168.0.100. The first steps
you will need to undertake to install your unit will be to assign it an IP address to match
your current network configuration. Before starting this, ensure you have the following
items:-
1. RJ45 CAT5 crossover cable with RJ45 male connection
2. A PC with Ethernet card or LAN socket.
3. Power socket for the unit to connect to
a) Connect the unit via the CAT5 crossover cable to the Ethernet / LAN port on your
computer.

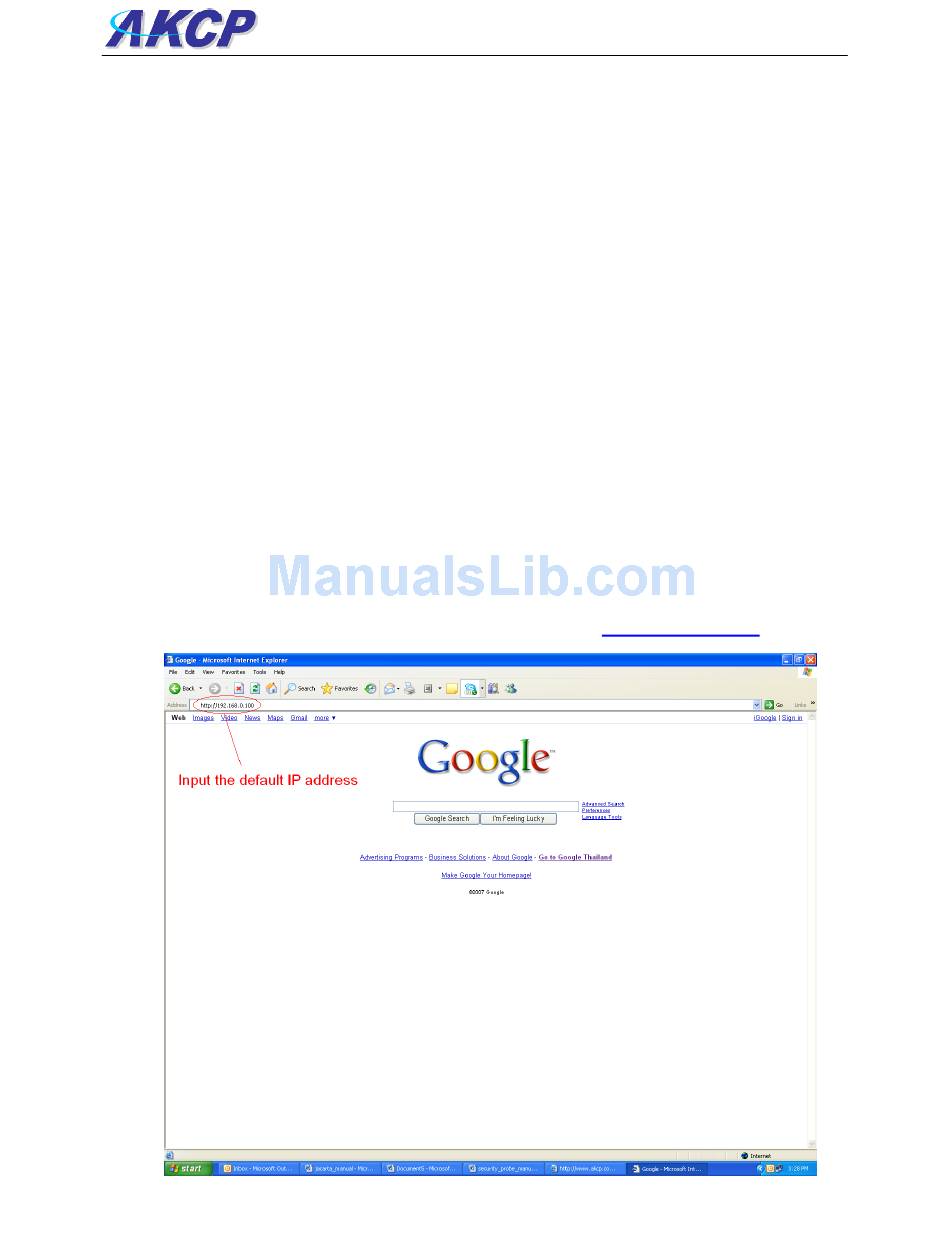

b) Open your web browser and go to the default IP address
Updated until firmware 413
http://192.168.0.100
