DripMaster

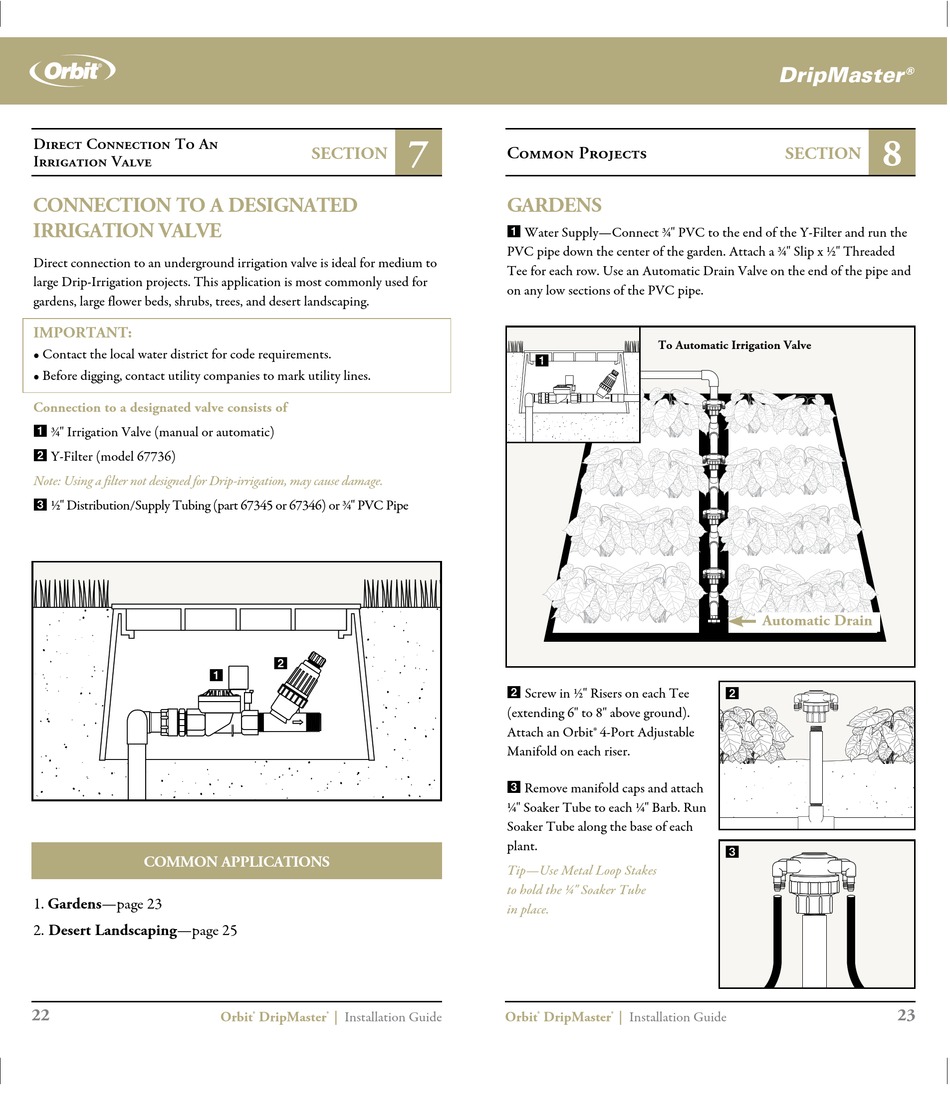

Direct Connection To An
Irrigation Valve
CONNECTION TO A DESIGNATED
IRRIGATION VALVE
Direct connection to an underground irrigation valve is ideal for medium to
large Drip-Irrigation projects. This application is most commonly used for
gardens, large flower beds, shrubs, trees, and desert landscaping.
IMPORTANT:
• Contact the local water district for code requirements.
• Before digging, contact utility companies to mark utility lines.
Connection to a designated valve consists of
1 ¾" Irrigation Valve (manual or automatic)
2 Y-Filter (model 67736)
Note: Using a filter not designed for Drip-irrigation, may cause damage.
3 ½" Distribution/Supply Tubing (part 67345 or 67346) or ¾" PVC Pipe
1
.
.
.
.
.
.
. . . .
.
COMMON APPLICATIONS
1. Gardens—page 23
2. Desert Landscaping—page 25
22
SECTION
2
.
.
.
.
. .
.
.
.
. .
.
.
Orbit DripMaster | Installation Guide
® ®
7

Common Projects

GARDENS

1 Water Supply—Connect ¾" PVC to the end of the Y-Filter and run the
PVC pipe down the center of the garden. Attach a ¾" Slip x ½" Threaded
Tee for each row. Use an Automatic Drain Valve on the end of the pipe and
on any low sections of the PVC pipe.
1
. .
.
.
.
.
.
.
. . . .
. .
2 Screw in ½" Risers on each Tee
(extending 6" to 8" above ground).
Attach an Orbit® 4-Port Adjustable
Manifold on each riser.
.
.
.
.
.
.
.
3 Remove manifold caps and attach
.
¼" Soaker Tube to each ¼" Barb. Run
Soaker Tube along the base of each
. . .
plant.
.
.
Tip—Use Metal Loop Stakes
to hold the ¼" Soaker Tube
in place.
Orbit DripMaster
®
To Automatic Irrigation Valve
.
.
.
.
.
.
.
. .
.
.
.
.
.
.
. . .
. . .
. .
Automatic Drain
2
3
| Installation Guide
®
DripMaster
®
8
SECTION
23
