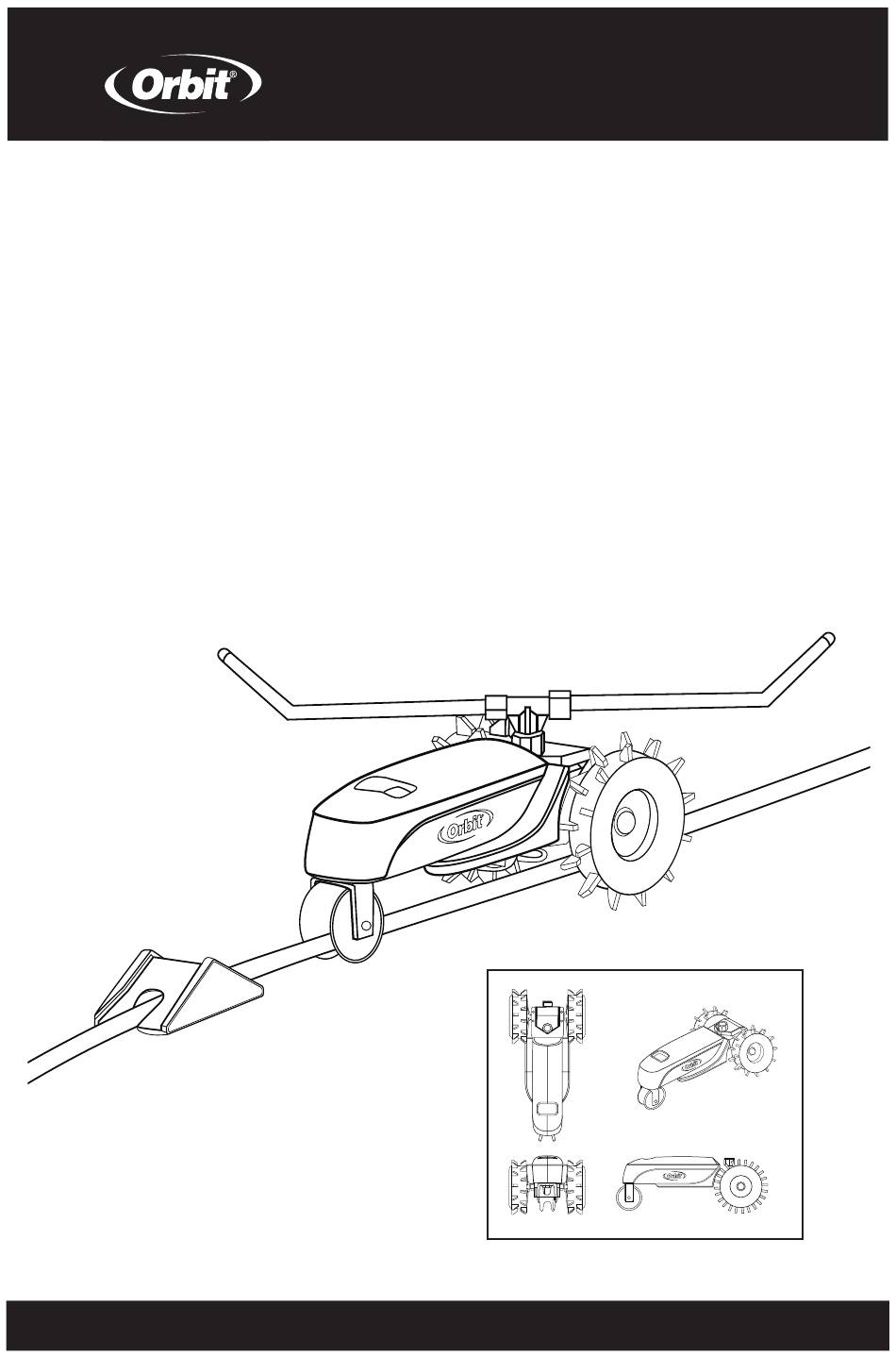

- Page 1 Assembly And operAting instructions for your orbit HeAvy-duty ® trAveling sprinkler Model 58322...
- Page 2 1. Sprinkler assembly Begin by inserting the black plastic T into the top of the sprinkler. Twist the long silver spray arms Correct–sprinkler will move forward into the T, tightening the black rings until the spray arms are held securely in place. Wrong–sprinkler will move backwards 2.
- Page 3 4. Positioning the shut-off ramp For narrow spray coverage, move the arms so they are pointing slightly downward. The shut-off ramp may be used at any point along the hose pattern to stop the sprinkler. Place the automatic shut-off ramp over the hose where you want the sprinkler to stop, ensuring a minimum of 5 feet of straight hose on either end of the ramp.
- Page 4 (e.g., color, text 10. Cleaning up and image placement, etc.) To keep the Orbit Heavy-Duty Traveling ® Sprinkler operating within peak parameters, be sure that the filter washer at the hose coupling and the spray arms remain clean and unblocked.
