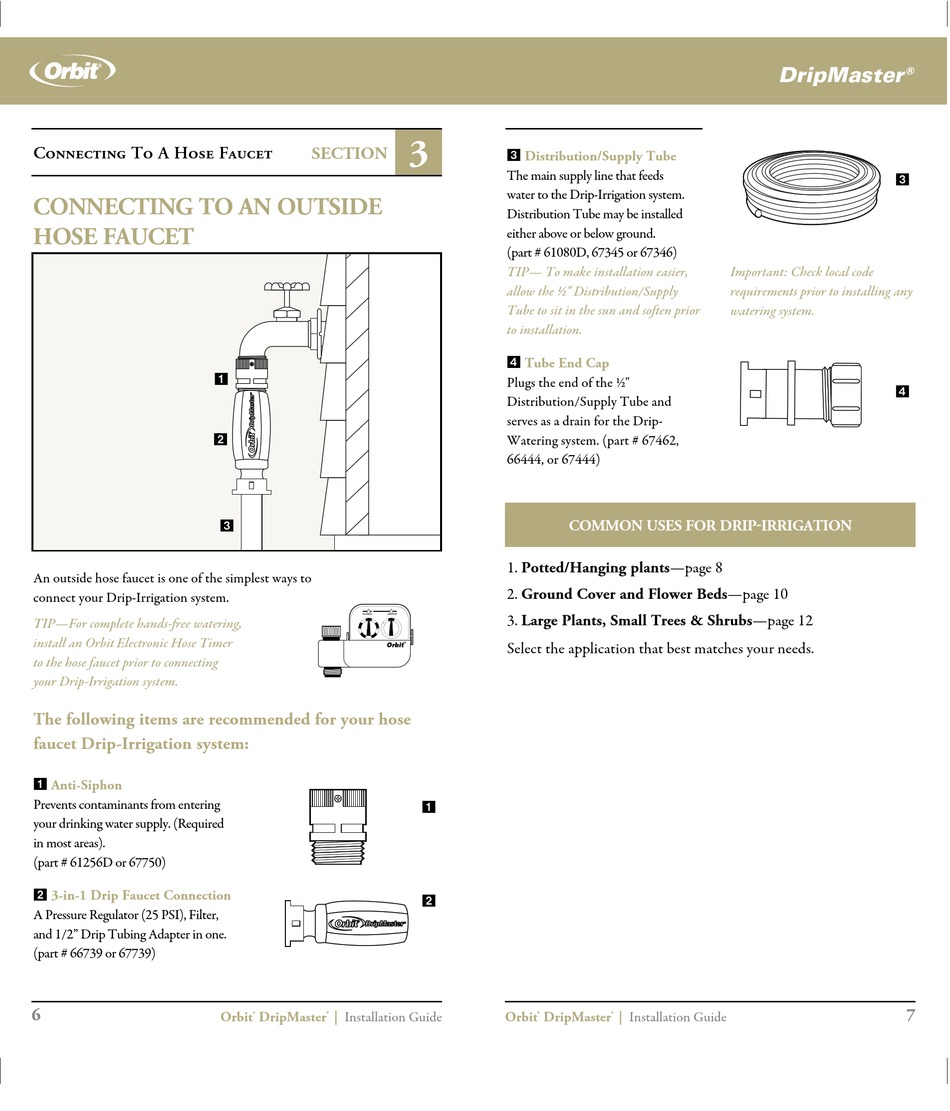

Connecting To A Hose Faucet

CONNECTING TO AN OUTSIDE
HOSE FAUCET
An outside hose faucet is one of the simplest ways to
connect your Drip-Irrigation system.
TIP—For complete hands-free watering,
install an Orbit Electronic Hose Timer
to the hose faucet prior to connecting
your Drip-Irrigation system.
The following items are recommended for your hose
faucet Drip-Irrigation system:
Anti-Siphon
1
Prevents contaminants from entering
your drinking water supply. (Required
in most areas).
(part # 61256D or 67750)
3-in-1 Drip Faucet Connection
2
A Pressure Regulator (25 PSI), Filter,
and 1/2" Drip Tubing Adapter in one.
(part # 66739 or 67739)
6
SECTION
1
2
3
Orbit
Orbit DripMaster | Installation Guide
® ®
3
Distribution/Supply Tube
3
The main supply line that feeds
water to the Drip-Irrigation system.
Distribution Tube may be installed
either above or below ground.
(part # 61080D, 67345 or 67346)
TIP— To make installation easier,
allow the ½" Distribution/Supply
Tube to sit in the sun and soften prior
to installation.
Tube End Cap
4
Plugs the end of the ½"
Distribution/Supply Tube and
serves as a drain for the Drip-
Watering system. (part # 67462,
66444, or 67444)
COMMON USES FOR DRIP-IRRIGATION
1. Potted/Hanging plants—page 8
2. Ground Cover and Flower Beds—page 10
3. Large Plants, Small Trees & Shrubs—page 12
Select the application that best matches your needs.
®
1
2
Orbit DripMaster
®
DripMaster
Important: Check local code
requirements prior to installing any
watering system.
| Installation Guide
®
®
3
4
