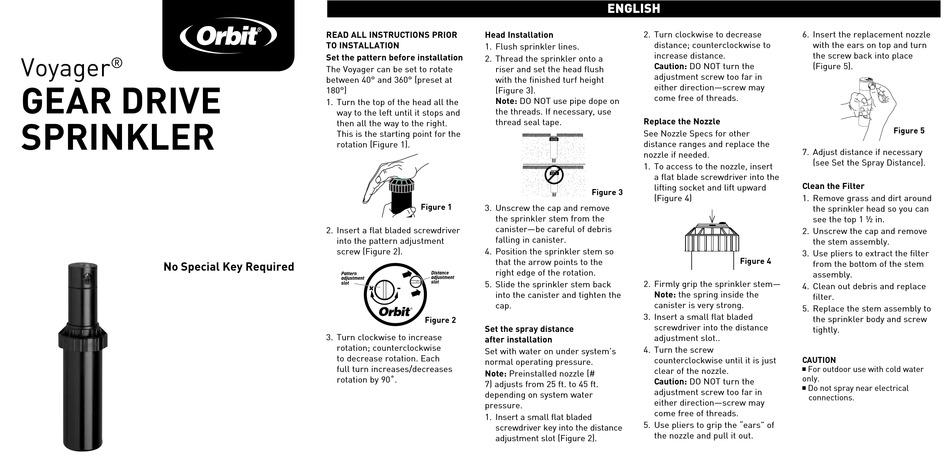

Orbit Voyager Quick Start Manual

Voyager
®
GEAR DRIvE
SPRINkLER
No Special key Required
READ ALL INSTRUCTIONS PRIOR Head Installation
TO INSTALLATION
1. Flush sprinkler lines.
Set the pattern before installation
2. Thread the sprinkler onto a
The Voyager can be set to rotate riser and set the head flush
between 40° and 360° (preset at with the finished turf height
180°) (Figure 3).
Note: DO NOT use pipe dope on
1. Turn the top of the head all the
the threads. If necessary, use
way to the left until it stops and
thread seal tape.
then all the way to the right.
This is the starting point for the
rotation (Figure 1).
Figure 1
3. Unscrew the cap and remove
the sprinkler stem from the
canister—be careful of debris
2. Insert a flat bladed screwdriver
falling in canister.
into the pattern adjustment
screw (Figure 2). 4. Position the sprinkler stem so
that the arrow points to the
right edge of the rotation.
Distance
Pattern
adjustment
adjustment
slot slot 5. Slide the sprinkler stem back
into the canister and tighten the
cap.
Orbit
®
Figure 2
Set the spray distance
3. Turn clockwise to increase
after installation
rotation; counterclockwise
Set with water on under system's
to decrease rotation. Each
normal operating pressure.
full turn increases/decreases
Note: Preinstalled nozzle (#
rotation by 90˚.
7) adjusts from 25 ft. to 45 ft.
depending on system water
pressure.
1. Insert a small flat bladed
screwdriver key into the distance
adjustment slot (Figure 2).
ENGLISH
2. Turn clockwise to decrease
distance; counterclockwise to
increase distance.
Caution: DO NOT turn the
adjustment screw too far in
either direction—screw may
come free of threads.
Replace the Nozzle
See Nozzle Specs for other
distance ranges and replace the
nozzle if needed.
1. To access to the nozzle, insert
a flat blade screwdriver into the
lifting socket and lift upward
Figure 3
(Figure 4)
Figure 4
2. Firmly grip the sprinkler stem—
Note: the spring inside the
canister is very strong.
3. Insert a small flat bladed
screwdriver into the distance
adjustment slot..
4. Turn the screw
counterclockwise until it is just
clear of the nozzle.
Caution: DO NOT turn the
adjustment screw too far in
either direction—screw may
come free of threads.
5. Use pliers to grip the "ears" of
the nozzle and pull it out.
6. Insert the replacement nozzle
with the ears on top and turn
the screw back into place
(Figure 5).
Figure 5
7. Adjust distance if necessary
(see Set the Spray Distance).
Clean the Filter
1. Remove grass and dirt around
the sprinkler head so you can
see the top 1 ½ in.
2. Unscrew the cap and remove
the stem assembly.
3. Use pliers to extract the filter
from the bottom of the stem
assembly.
4. Clean out debris and replace
filter.
5. Replace the stem assembly to
the sprinkler body and screw
tightly.
CAUTION
For outdoor use with cold water
n
only.
Do not spray near electrical
n
connections.
