Ground Cover & Flower Beds - Orbit dripmaster Installation Manual

DripMaster
Common Hose Faucet Projects

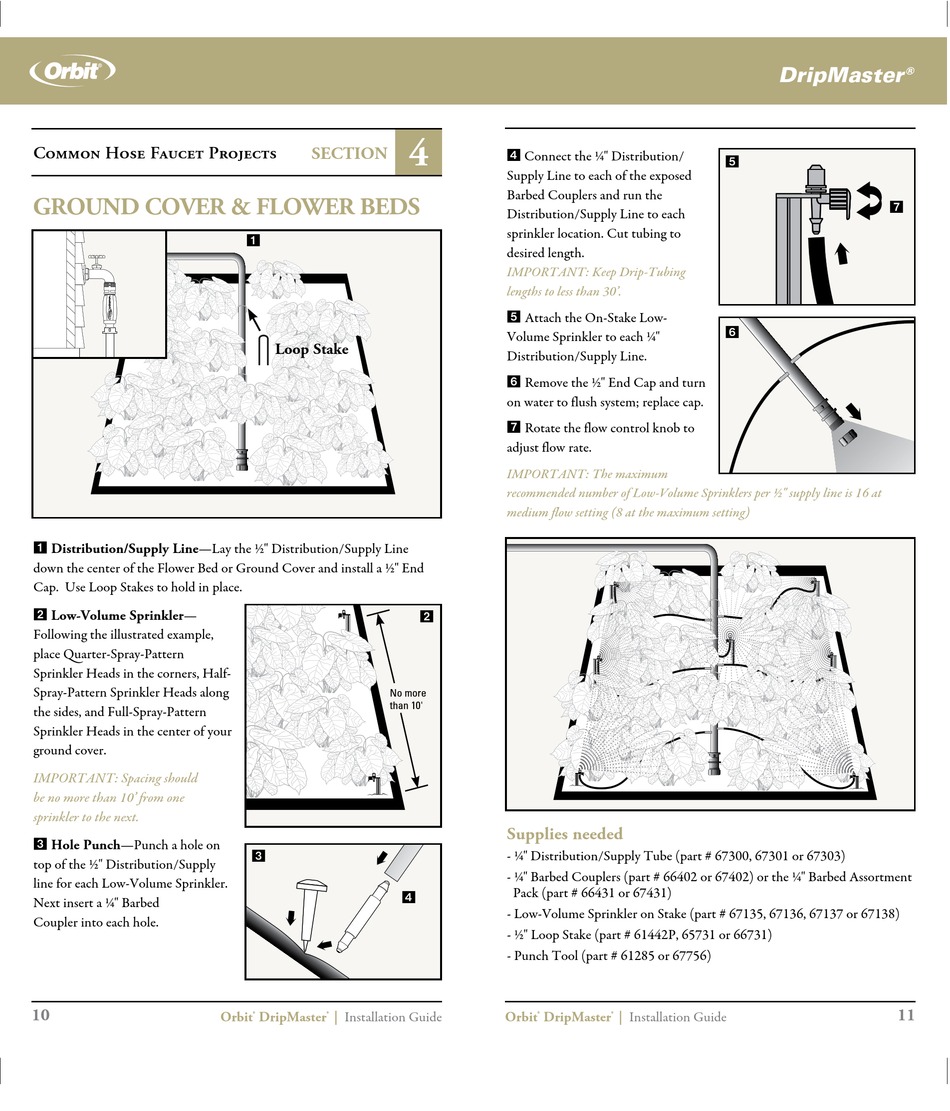

GROUND COVER & FLOWER BEDS
1 Distribution/Supply Line—Lay the ½" Distribution/Supply Line
down the center of the Flower Bed or Ground Cover and install a ½" End
Cap. Use Loop Stakes to hold in place.
2 Low-Volume Sprinkler—
Following the illustrated example,
place Quarter-Spray-Pattern
Sprinkler Heads in the corners, Half-
Spray-Pattern Sprinkler Heads along
the sides, and Full-Spray-Pattern
Sprinkler Heads in the center of your
ground cover.
IMPORTANT: Spacing should
be no more than 10' from one
sprinkler to the next.
3 Hole Punch—Punch a hole on
top of the ½" Distribution/Supply
line for each Low-Volume Sprinkler.
Next insert a ¼" Barbed
Coupler into each hole.
10
SECTION
1
Loop Stake
No more
than 10'
3
Orbit DripMaster | Installation Guide
® ®
4
4 Connect the ¼" Distribution/
Supply Line to each of the exposed
Barbed Couplers and run the
Distribution/Supply Line to each
sprinkler location. Cut tubing to
desired length.
IMPORTANT: Keep Drip-Tubing
lengths to less than 30'.
5 Attach the On-Stake Low-
Volume Sprinkler to each ¼"
Distribution/Supply Line.
6 Remove the ½" End Cap and turn
on water to flush system; replace cap.
7 Rotate the flow control knob to
adjust flow rate.
IMPORTANT: The maximum
recommended number of Low-Volume Sprinklers per ½" supply line is 16 at
medium flow setting (8 at the maximum setting)
2
Supplies needed
- ¼" Distribution/Supply Tube (part # 67300, 67301 or 67303)
- ¼" Barbed Couplers (part # 66402 or 67402) or the ¼" Barbed Assortment
Pack (part # 66431 or 67431)
4
- Low-Volume Sprinkler on Stake (part # 67135, 67136, 67137 or 67138)
- ½" Loop Stake (part # 61442P, 65731 or 66731)
- Punch Tool (part # 61285 or 67756)
Orbit DripMaster
®
DripMaster
5
6
| Installation Guide
®
®
7
11
