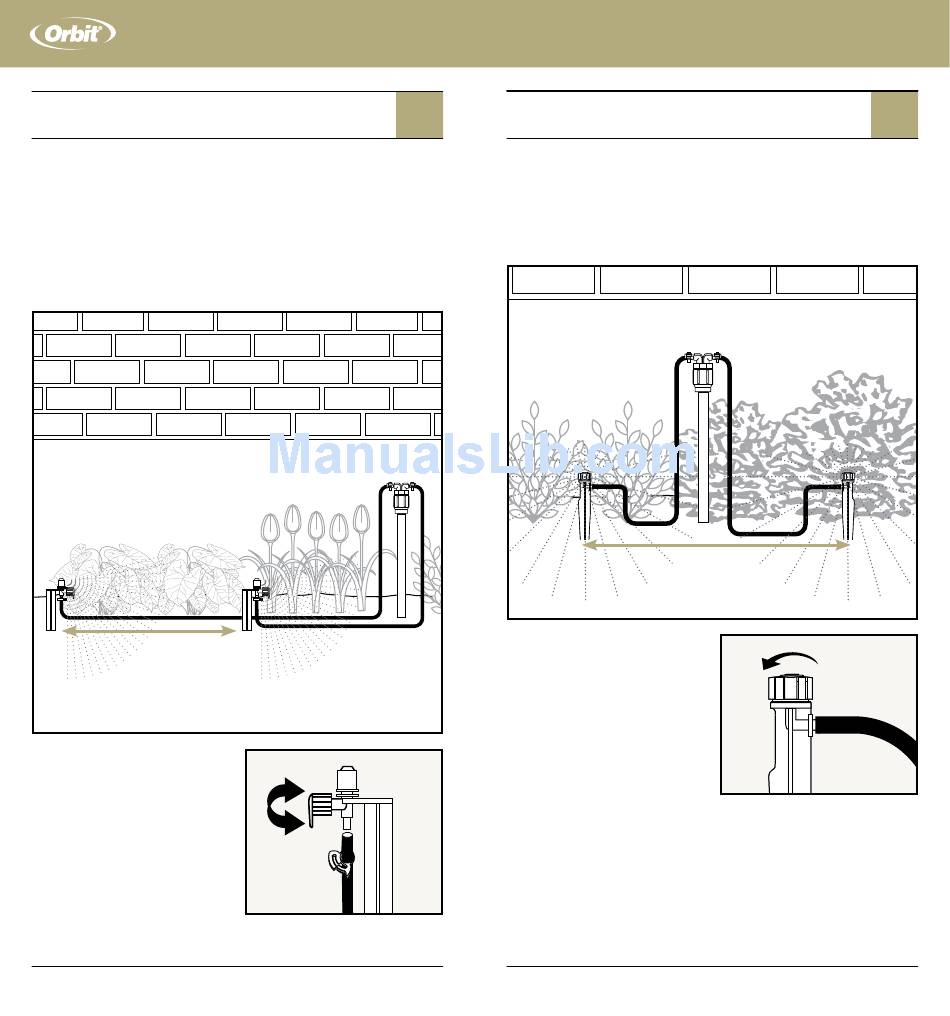

Common Retrofit Projects
FLOWER BEDS AND GROUND COVER
Attach a Low-Volume Sprinkler Head on 12" Stake, spaced no more than
10' apart. (See Parts List for spray pattern options)
or
Multi-Stream Dripper on a stake, spaced no more than 3' apart.
(part # 66105, 67105 or 68105)
No more than 10' apart
Note: Adjust the flow rate by turning
the flow control on each Drip-
Irrigation sprinkler head.
20
SECTION
Orbit
DripMaster
|
Installation Guide
®
®
6
Common Retrofit Projects
SHRUBS AND LARGE PLANTS
Use Orbit's
Multi-Stream Dripper on a Stake next to each shrub or large
®
plant. (part # 66105, 67105 or 68105)
Note: Adjust the flow rate by turning
the flow control on each Drip-Irrigation
Sprinkler Head.
Supplies needed:
- Full-Flow 4-Port Manifold (part # 61004, 66025 or 67025)
- The appropriate Drip-Irrigation sprinkler head listed above
- ¼" Distribution/Supply Tube (part # 67300, 67301 or 67303)
- ¼" High Pressure Clamps (part # 66710 or 67710)
Orbit
DripMaster
®
DripMaster
SECTION
No more than 3' apart
|
Installation Guide
®
®
6
21
