DripMaster
Retrofit

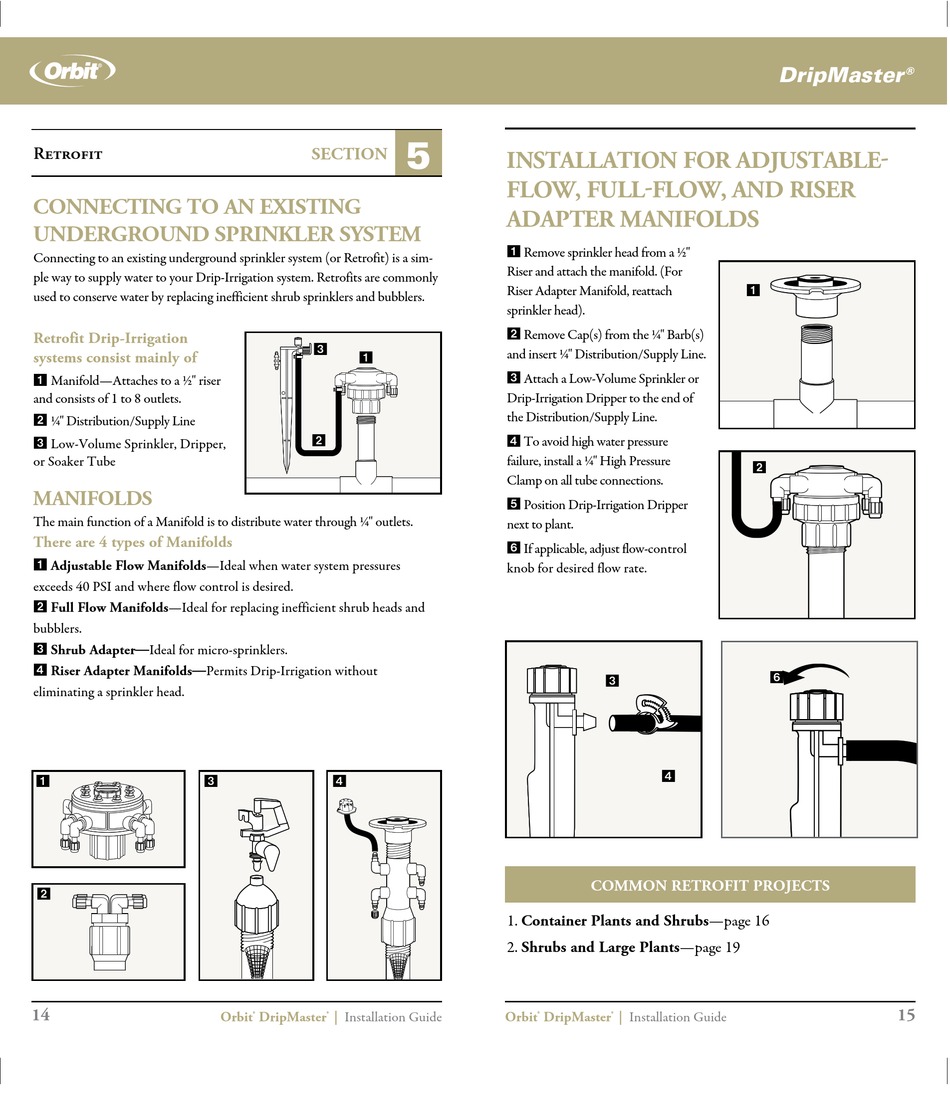

CONNECTING TO AN ExISTING
UNDERGROUND SPRINkLER SYSTEM
Connecting to an existing underground sprinkler system (or Retrofit) is a sim-
ple way to supply water to your Drip-Irrigation system. Retrofits are commonly
used to conserve water by replacing inefficient shrub sprinklers and bubblers.
Retrofit Drip-Irrigation
systems consist mainly of
1 Manifold—Attaches to a ½" riser
and consists of 1 to 8 outlets.
2 ¼" Distribution/Supply Line
3 Low-Volume Sprinkler, Dripper,
or Soaker Tube
MANIFOLDS
The main function of a Manifold is to distribute water through ¼" outlets.
There are 4 types of Manifolds
1 Adjustable Flow Manifolds—Ideal when water system pressures
exceeds 40 PSI and where flow control is desired.
2 Full Flow Manifolds—Ideal for replacing inefficient shrub heads and
bubblers.
3 Shrub Adapter—Ideal for micro-sprinklers.
4 Riser Adapter Manifolds—Permits Drip-Irrigation without
eliminating a sprinkler head.
1 3
2
14
SECTION
3
1
2
4
Orbit DripMaster | Installation Guide
® ®
5
INSTALLATION FOR ADjUSTABLE-
FLOW, FULL-FLOW, AND RISER
ADAPTER MANIFOLDS
1 Remove sprinkler head from a ½"
Riser and attach the manifold. (For
Riser Adapter Manifold, reattach
sprinkler head).
2 Remove Cap(s) from the ¼" Barb(s)
and insert ¼" Distribution/Supply Line.
3 Attach a Low-Volume Sprinkler or
Drip-Irrigation Dripper to the end of
the Distribution/Supply Line.
4 To avoid high water pressure
failure, install a ¼" High Pressure
Clamp on all tube connections.
5 Position Drip-Irrigation Dripper
next to plant.
6 If applicable, adjust flow-control
knob for desired flow rate.
1. Container Plants and Shrubs—page 16
2. Shrubs and Large Plants—page 19
Orbit DripMaster
®
1
2
6
3
4

COMMON RETROFIT PROjECTS

| Installation Guide
®
DripMaster
®
15
