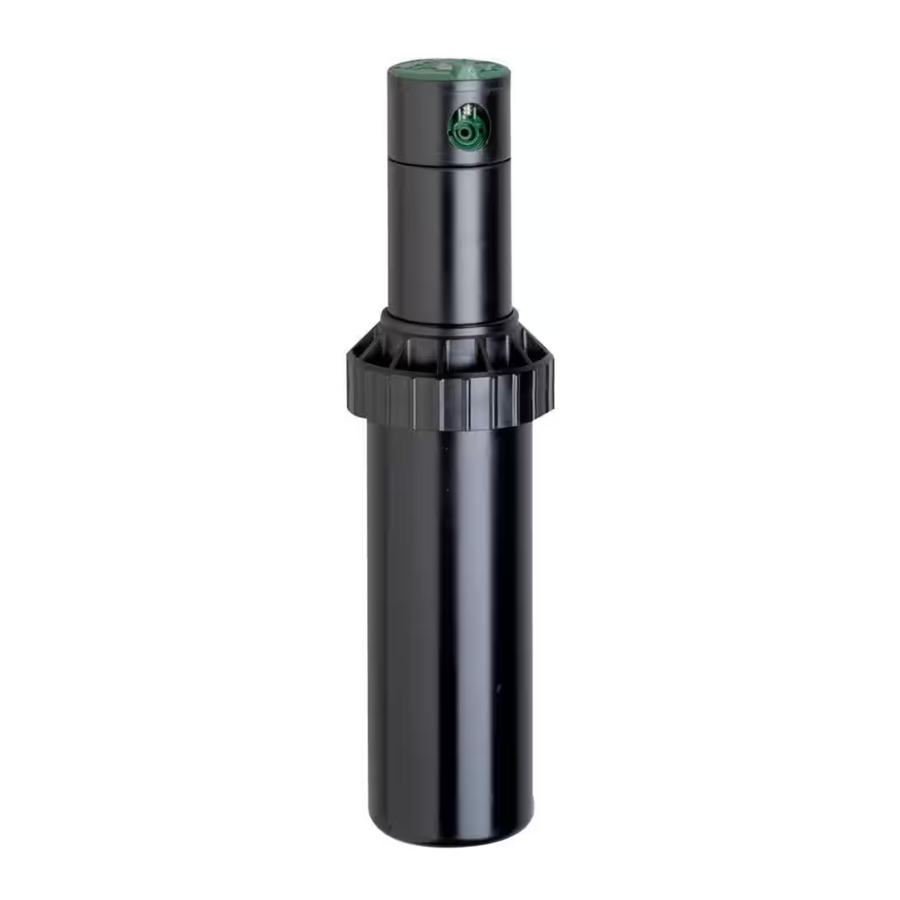

Orbit Voyager, 55460 Manual

Set the pattern before installation

READ ALL INSTRUCTIONS PRIOR TO INSTALLATION

The Voyager can be set to rotate between 40° and 360° (preset at 180°)

1. Turn the top of the head all the way to the left until it stops and then all the way to the right. This is the starting point for the rotation (Figure 1).

2. Insert a flat bladed screwdriver into the pattern adjustment screw (Figure 2).

3. Turn clockwise to increase rotation; counterclockwise to decrease rotation. Each full turn increases/decreases rotation by 90˚.

Head Installation

1. Flush sprinkler lines.
2. Thread the sprinkler onto a riser and set the head flush with the finished turf height (Figure 3).
   Note: DO NOT use pipe dope on the threads. If necessary, use thread seal tape.

3. Unscrew the cap and remove the sprinkler stem from the canister—be careful of debris falling in canister.
4. Position the sprinkler stem so that the arrow points to the right edge of the rotation.
5. Slide the sprinkler stem back into the canister and tighten the cap.

Set the spray distance after installation

Set with water on under system's normal operating pressure.
Note: Preinstalled nozzle (# 7) adjusts from 25 ft. to 45 ft. depending on system water pressure.

1. Insert a small flat bladed screwdriver key into the distance adjustment slot (Figure 2).
2. Turn clockwise to decrease distance; counterclockwise to increase distance.

   DO NOT turn the adjustment screw too far in either direction—screw may come free of threads.

Replace the Nozzle

See Nozzle Specs for other distance ranges and replace the nozzle if needed.

1. To access to the nozzle, insert a flat blade screwdriver into the lifting socket and lift upward (Figure 4)

2. Firmly grip the sprinkler stem—Note: the spring inside the canister is very strong.
3. Insert a small flat bladed screwdriver into the distance adjustment slot..
4. Turn the screw counterclockwise until it is just clear of the nozzle.

   DO NOT turn the adjustment screw too far in either direction—screw may come free of threads.
5. Use pliers to grip the "ears" of the nozzle and pull it out.
6. Insert the replacement nozzle with the ears on top and turn the screw back into place (Figure 5).

7. Adjust distance if necessary (see Set the Spray Distance).

Clean the Filter

1. Remove grass and dirt around the sprinkler head so you can see the top 1 ½ in.
2. Unscrew the cap and remove the stem assembly.
3. Use pliers to extract the filter from the bottom of the stem assembly.
4. Clean out debris and replace filter.
5. Replace the stem assembly to the sprinkler body and screw tightly.

• For outdoor use with cold water only.
• Do not spray near electrical connections.

CUSTOMER SERVICE
1-800-488-6156
www.orbitonline.com
