Small Trees & Shrubs - Orbit dripmaster Installation Manual

DripMaster
Common Hose Faucet Projects

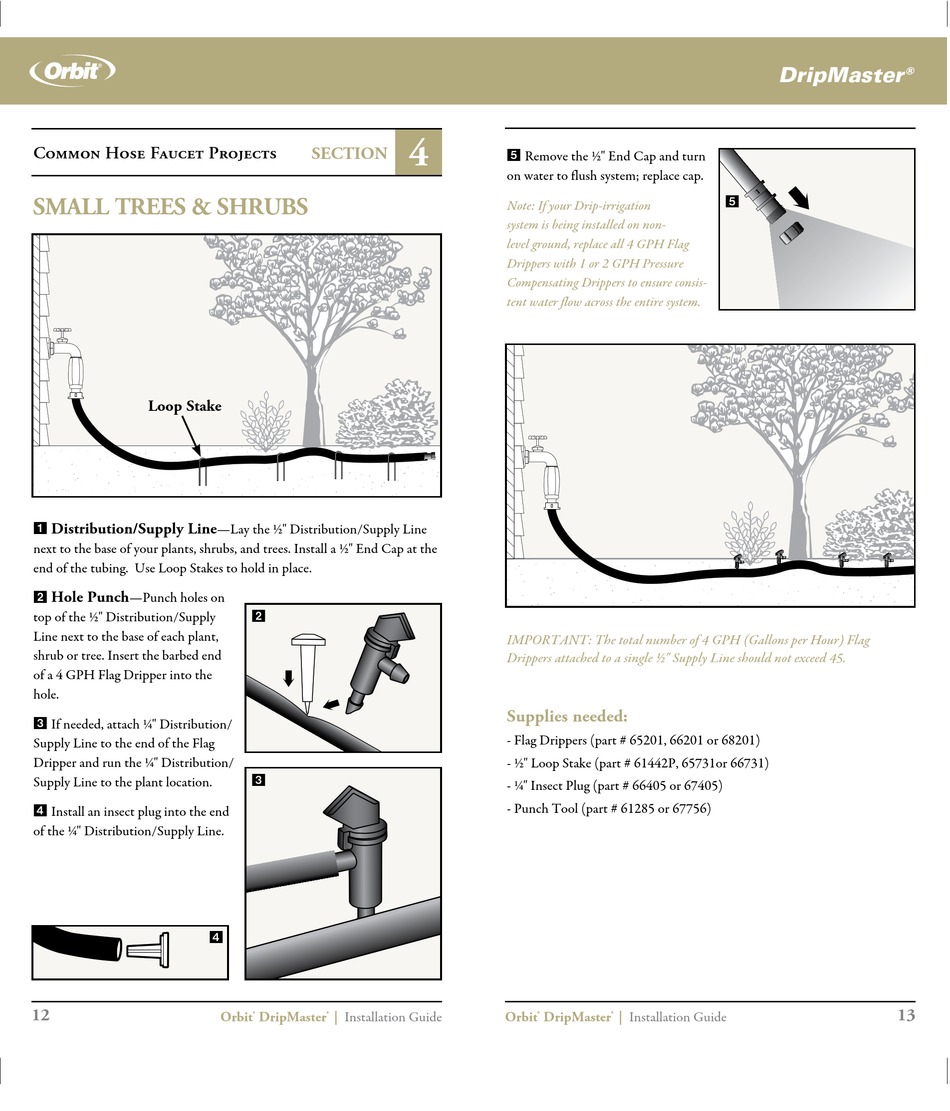

SMALL TREES & SHRUBS
Loop Stake
Distribution/Supply Line
1
next to the base of your plants, shrubs, and trees. Install a ½" End Cap at the
end of the tubing. Use Loop Stakes to hold in place.
Hole Punch
—Punch holes on
2
top of the ½" Distribution/Supply
Line next to the base of each plant,
shrub or tree. Insert the barbed end
of a 4 GPH Flag Dripper into the
hole.
3 If needed, attach ¼" Distribution/
Supply Line to the end of the Flag
Dripper and run the ¼" Distribution/
Supply Line to the plant location.
4 Install an insect plug into the end
of the ¼" Distribution/Supply Line.
4
12
SECTION
—Lay the ½" Distribution/Supply Line
2
3
Orbit DripMaster | Installation Guide
® ®
4
5 Remove the ½" End Cap and turn
on water to flush system; replace cap.
Note: If your Drip-irrigation
system is being installed on non-
level ground, replace all 4 GPH Flag
Drippers with 1 or 2 GPH Pressure
Compensating Drippers to ensure consis-
tent water flow across the entire system.
IMPORTANT: The total number of 4 GPH (Gallons per Hour) Flag
Drippers attached to a single ½" Supply Line should not exceed 45.
Supplies needed:
- Flag Drippers (part # 65201, 66201 or 68201)
- ½" Loop Stake (part # 61442P, 65731or 66731)
- ¼" Insect Plug (part # 66405 or 67405)
- Punch Tool (part # 61285 or 67756)
Orbit DripMaster
®
DripMaster
5
| Installation Guide
®
®
13
