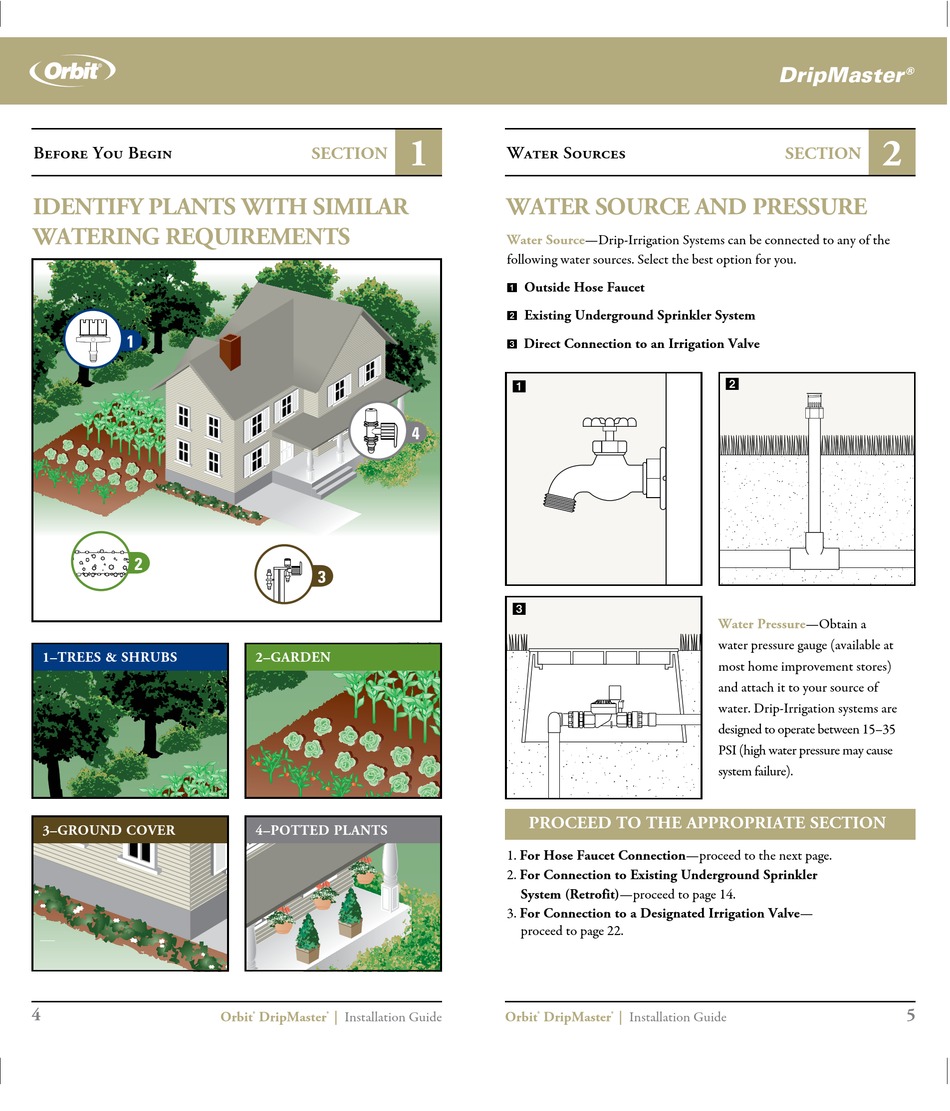

Before You Begin

IDENTIFY PLANTS WITH SIMILAR
WATERING REQUIREMENTS
1
2
1–TREES & SHRUBS
3–GROUND COVER
4
SECTION
3
2–GARDEN
4–POTTED PLANTS
Orbit DripMaster | Installation Guide
® ®
1

Water Sources

WATER SOURCE AND PRESSURE
Source—Drip-Irrigation Systems can be connected to any of the
Water
following water sources. Select the best option for you.
Outside Hose Faucet
1
Existing Underground Sprinkler System
2
Direct Connection to an Irrigation Valve
3
1
4
3
.
.
. .
.
.
. .
. .
.
PROCEED TO THE APPROPRIATE SECTION
1. For Hose Faucet Connection—proceed to the next page.
2. For Connection to Existing Underground Sprinkler
System (Retrofit)—proceed to page 14.
3. For Connection to a Designated Irrigation Valve—
proceed to page 22.
Orbit DripMaster
®
2
.
.
.
. .
.
.
. .
. .
.
Water Pressure—Obtain a
water pressure gauge (available at
most home improvement stores)
and attach it to your source of
water. Drip-Irrigation systems are
designed to operate between 15–35
.
. .
.
PSI (high water pressure may cause
. .
.
.
.
.
.
system failure).
.
. . . .
.
.
.
