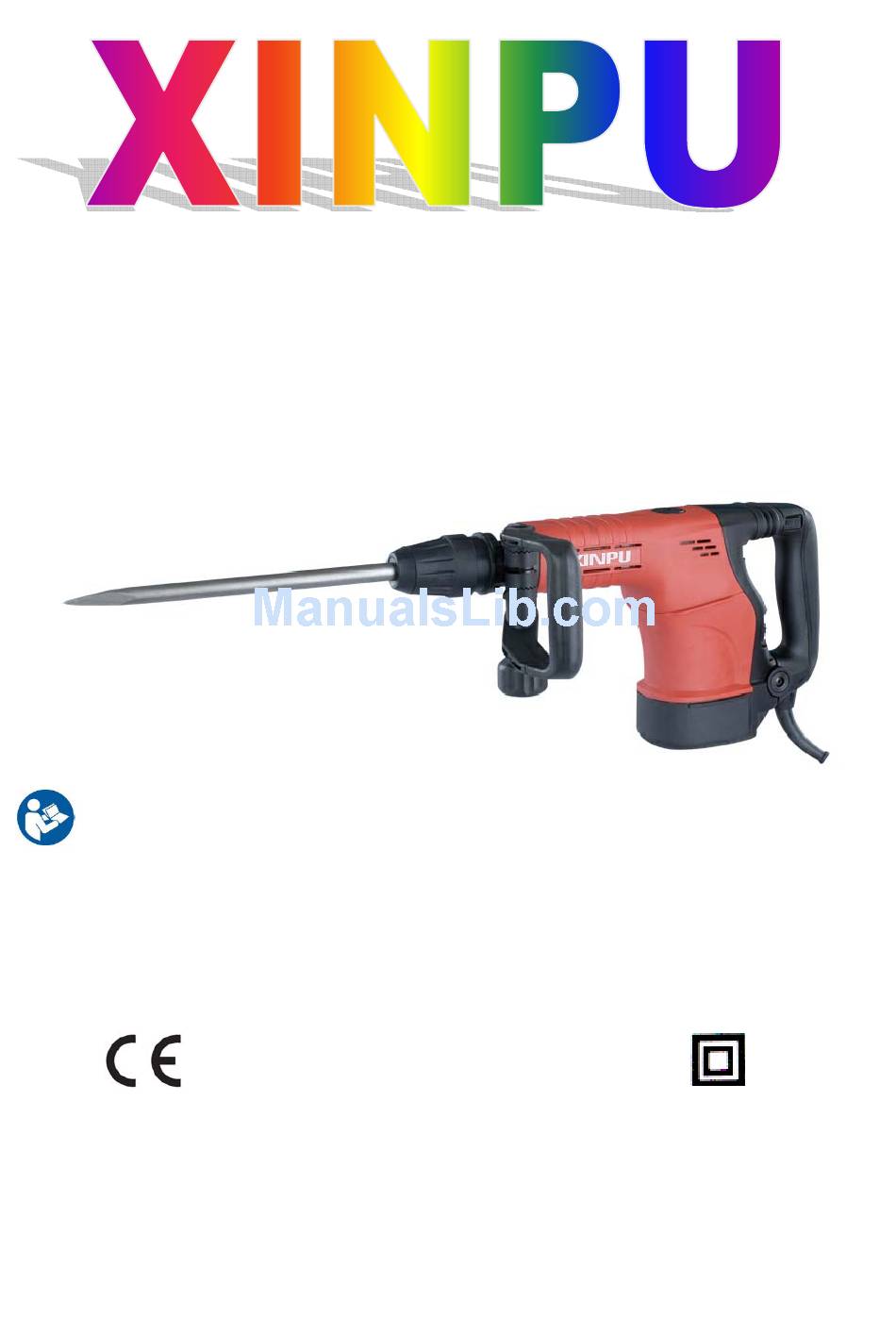

Demolition Hammer
Model: XP-G50VB
HANDLING INSTRUCTIONS
Original Instructions
Before using this demolition hammer, please carefully read though these HANDLING
INSTRUCTIONS. Ensure that you know how the machine works, and how it should be operated.
Maintain the machine in accordance with the instructions, and make certain that the machine
work correctly, please store this instriation and other enclosed documents with the machine
together.
BJ2013
Zhejiang Xinpu Industrial & Commercial Co., Ltd.
106, No. 330 National Road, Huajie Industrial Zone, Yongkang City, Zhejiang 321300, P. R. China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XP-G50VB and is the answer not in the manual?

Questions and answers

Related Manuals for Xinpu XP-G50VB

Summary of Contents for Xinpu XP-G50VB

  • Page 1 Maintain the machine in accordance with the instructions, and make certain that the machine work correctly, please store this instriation and other enclosed documents with the machine together. BJ2013 Zhejiang Xinpu Industrial & Commercial Co., Ltd. 106, No. 330 National Road, Huajie Industrial Zone, Yongkang City, Zhejiang 321300, P. R. China...

  • Page 2: General Power Tool Safety Warnings

    list: General Power Tool Safety Warnings Special Warning for Electric hammer Safety instructions Applications Technical Data Accessories Name of the parts Prior to operation Assembly Operation Lubrication Maintenance and Service Warranty Environment General Power Tool Safety Warnings WARNING ： Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury.
  • Page 3 cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tools in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. 3) Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool.
  • Page 4 parts. This will ensure that the safety of the power tool is maintained. Special Warning for Electric hammer • Wear ear protection. Exposure to noise can cause hearing loss. • Use auxiliary handle with the tool. Loss of control can cause personal injury. •...

  • Page 5: Safety Instructions

    2. Safety instructions In this operator's manual/or machine’s labels following symbols are used: Accordance with essential applicable safety of European directives Double insulation Denote risk of personal injury, loss of life or damage to the tool in case of nonobservance of the instruction in this manual.

  • Page 6: Technical Data

    Applications The power tool is intended for chiseling work in concrete, brick, masonry and asphalt as well as for driving in and compacting, when using the respective accessories. Technical Data Demolition Hammer XP-G50VB Rated Voltage 220-240V~ Frequency 50Hz Rated input...

  • Page 7: Name Of The Parts

    5. Surface Roughing (Hammering) (1) Bushing Tool (2) Shank 6. Tamping (Hammering) (1) Rammer (2) Shank (150 x 150 mm) Optional accessories are subject to change without notice. ame of the parts 1. Hammer rod protector 2. Protective lining 3. Move limited ring 4.

  • Page 8: Changing The Tool

    Changing the tool Before any work on the power tool itself, pull the mains plug. With the SDS-max tool holder. Simpler and easier tool changing is possible without additional aids. The Hammer rod protector1 largely prevents the entry of drilling dust into the tool holder during operation. When inserting the tool, take care that the Hammer rod protector 1 is not damaged.
  • Page 9 Release the Move limited ring 3 and turn the chisel until it latches. Shock absorption Equipment 5 The XP-G50VB is equipped with an active vibration reduction system, which cuts vibration of that of the without Active Vibration Reduction. This may significantly reduce the exposure level over the total working period.

  • Page 10: Maintenance And Check

    Repair, modification and inspection of Xinpu Power Tools must be carried out by a Xinpu Authorized Service Center. This Parts List will be helpful it presented with the tool to the Xinpu Authorized Serivde Center when requesting repair or other maintenance.
  • Page 11 Xinpu Power Tools are constantly being improved and modified to incorporate the latest technological advancements. Accordingly, some parts may be changed without prior notice. NOTE: Due to XINPU’S continuing program of research and development, the specifications herein are subject to change without prior notice.
