Demolition Hammer
Model: XP-G55VC
HANDLING INSTRUCTIONS
Before using this demolition hammer, please carefully read
though these HANDLING INSTRUCTIONS. Ensure that you know how the machine works, and
how it should be operated. Maintain the machine in accordance with the instructions, and make
certain that the machine work correctly, please store this instriation and other enclosed
documents with the machine together.
Bj: 2012
Zhejiang Xinpu Industrial & Commercial Co., Ltd.
106, No. 330 National Road, Huajie Industrial Zone, Yongkang City, Zhejiang 321300, P. R. China
Advertisement
Table of Contents
Related Manuals for Xinpu XP-G55VC
Summary of Contents for Xinpu XP-G55VC
- Page 1 Bj: 2012 Zhejiang Xinpu Industrial & Commercial Co., Ltd. 106, No. 330 National Road, Huajie Industrial Zone, Yongkang City, Zhejiang 321300, P. R. China...
-
Page 2: General Power Tool Safety Warnings
Contents General Power Tool Safety Warnings Specific Safety Rules Safety instructions Intended Use Technical Data Accessories Name of the parts Assembly Operation Maintenance and Service Warranty Environment General Power Tool Safety Warnings WARNING ： Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. - Page 3 d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
- Page 4 power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools.
-
Page 5: Safety Instructions
Connect power tools that are used in the open via a Ground Fault Circuit Interrupter (GFCL). Ear hearing protection. Exposure to noise can cause hearing loss. Use the auxiliary handle supplied with the power tool. Loss of control over the power tool can cause personal injury. -
Page 6: Functional Description
Intended Use The power tool is intended for chiseling work in concrete, brick, masonry and asphalt as well as for driving in and compacting, when using the respective accessories. Technical Data Demolition Hammer XP-G55VC Rated Voltage 220-240V~ Frequency 50Hz 1500W... - Page 7 Accessories Standard accessories Hexagon bar wrench 10mm 1 piece Amphibious screwdriver 1 piece One bottle of grease Bull point chisel(18×400mm) 1 piece flat chisel(18×400mm) 1 piece Carbon brush((6.5×17×26)mm) 1 couple OPTIONAL ACCESSORIES (sold separately) 1. Tine Chisel: 18*400mm (SDS max ) 2.
-
Page 8: Prior To Operation

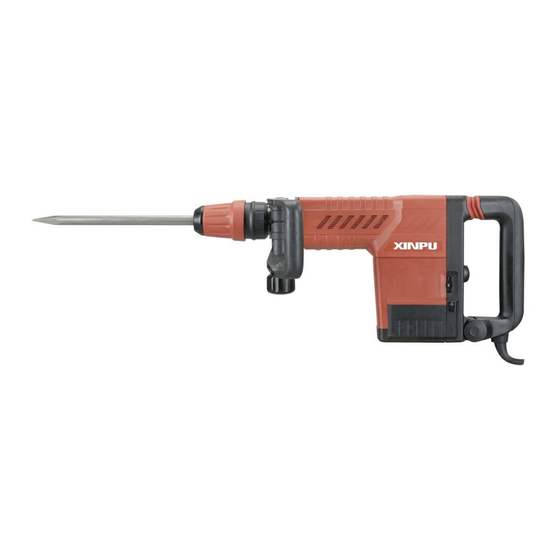

Name of the parts 1. Hammer rod protector 2. Protective lining 3. Move limited ring 4. Shock Absorption Jacket 5. Switch 6. Speed Adjuster Function Knob 7. Indicator 8. Fan cover 9. Side Handle 10. Function Knob Prior to operation 1. -
Page 9: Starting Operation
Inserting (see figure A) Clean and lightly grease the shank end of the tool. Insert the tool in a twisting manner into the tool holder until it latches itself. Check the latching by pilling the tool. Removing (see figure B) Push back the Protective lining 2 and remove the tool. -
Page 10: Maintenance And Service
Release the Move limited ring 3 and turn the chisel until it latches. Shock absorption Equipment 4 The XP-G55VC is equipped with an active vibration reduction system, which cuts vibration of that of the without Active Vibration Reduction. This may significantly reduce the exposure level over the total working period.
