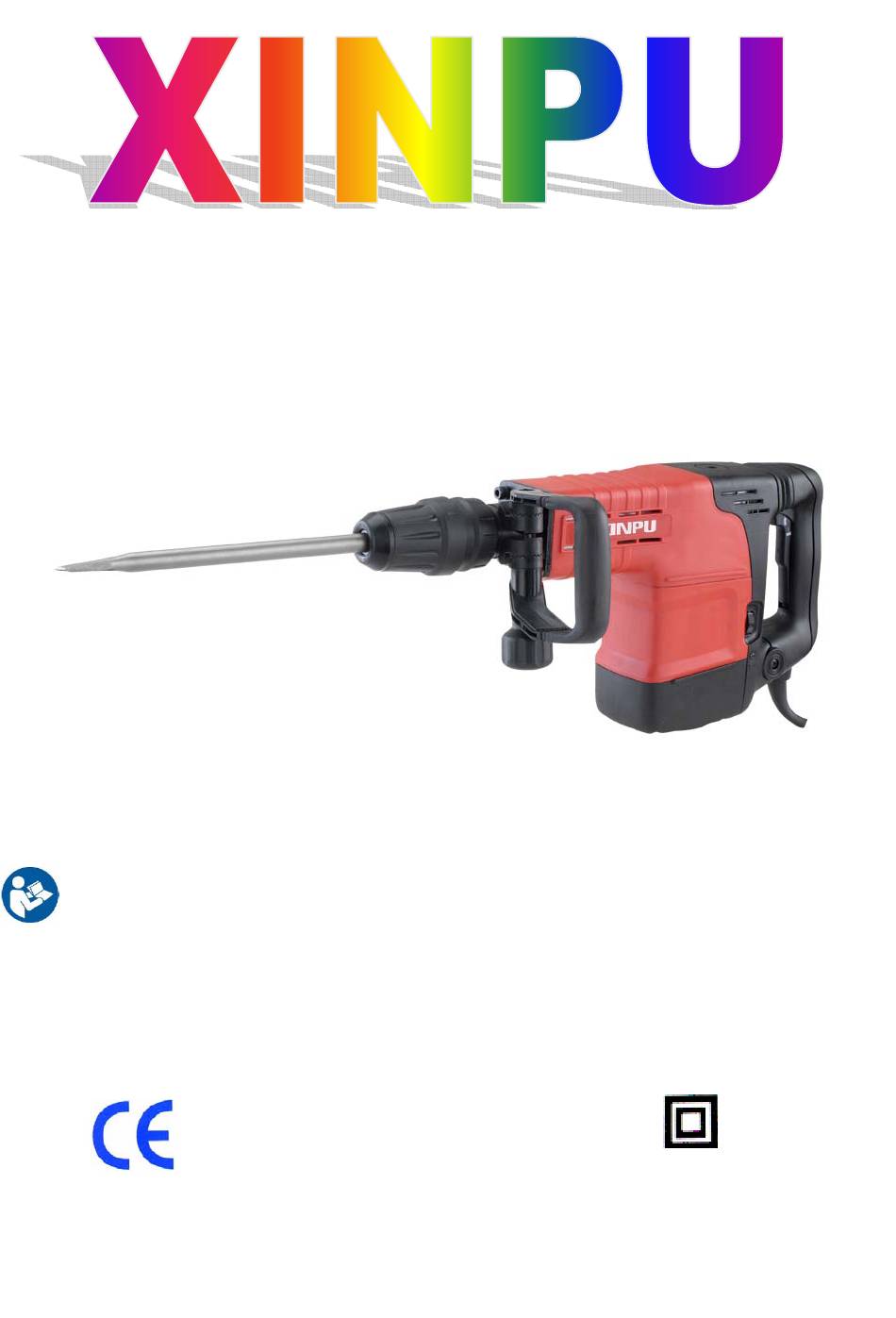

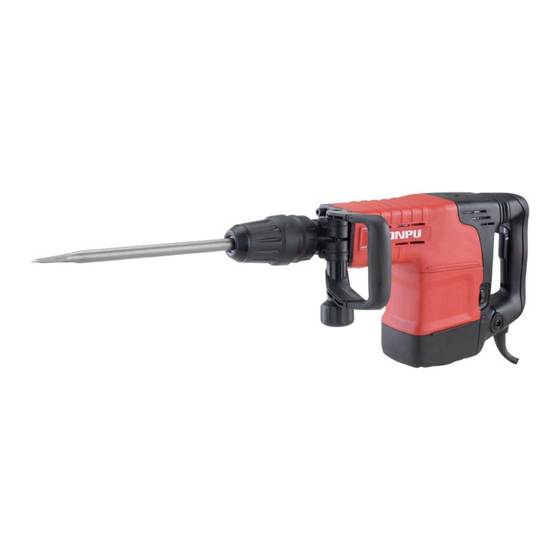

Demolition Hammer
Model: XP-G55VB
HANDLING INSTRUCTIONS
Original Instructions
Before using this demolition hammer, please carefully read though these HANDLING
INSTRUCTIONS. Ensure that you know how the machine works, and how it should be operated.
Maintain the machine in accordance with the instructions, and make certain that the machine
work correctly, please store this instriation and other enclosed documents with the machine
together.
Bj: 2013
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Xinpu XP-G55VB
Summary of Contents for Xinpu XP-G55VB
- Page 1 Demolition Hammer Model: XP-G55VB HANDLING INSTRUCTIONS Original Instructions Before using this demolition hammer, please carefully read though these HANDLING INSTRUCTIONS. Ensure that you know how the machine works, and how it should be operated. Maintain the machine in accordance with the instructions, and make certain that the machine work correctly, please store this instriation and other enclosed documents with the machine together.
-
Page 2: General Power Tool Safety Warnings
list: General Power Tool Safety Warnings Special Warning for Electric hammer Safety instructions Intended Use Technical Data Accessories Name of the parts Assembly Operation Maintenance and Service Warranty Environment General Power Tool Safety Warnings WARNING ： Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. - Page 3 c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
- Page 4 b) Do not(use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
- Page 5 Do not work materials containing asbestos. Asbestos is considered carcinogenic. Take protective measures when dust can develop during working that is harmful to one’s health, combustible or explosive. Example: Some dusts are regarded as carcinogenic. Wear a dust mask and work with dust/chip extraction when connectable. Always wait until the power tool has come to a complete stop before placing it down.
-
Page 6: Safety Instructions
2. Safety instructions In this operator's manual/or machine’s labels following symbols are used: Accordance with essential applicable safety of European directives Double insulation Denote risk of personal injury, loss of life or damage to the tool in case of nonobservance of the instruction in this manual. -
Page 7: Intended Use
Intended Use The power tool is intended for chiseling work in concrete, brick, masonry and asphalt as well as for driving in and compacting, when using the respective accessories. Technical Data Demolition Hammer XP-G55VB Rated Voltage 220-240V~ Frequency 50Hz Rated input... -
Page 8: Standard Accessories
Proper measures include among others regular maintenance and care of the power tool and application tools, keeping hands warm, periodical breaks and proper planning of work processes. Accessories Standard accessories Hexagon bar wrench 10mm 1 piece Amphibious screwdriver 1 piece One bottle of grease Bull point chisel(18×400mm) 1 piece... -
Page 9: Name Of The Parts
Optional accessories are subject to change without notice. Name of the parts 1. Hammer rod protector 2. Protective lining 3. Move limited ring 4. Shock Absorption Jacket 5. Switch 6. Speed Adjuster Function Knob 7. Indicator 8. Side Handle 9. Function Knob Assembly Auxiliary Handle Operate your power tool only with the Side Handle8. -
Page 10: Starting Operation
Shock absorption Equipment 4 The XP-G55VB is equipped with an active vibration reduction system, which cuts vibration of that of the without Active Vibration Reduction. This may significantly reduce the exposure level over the total working period. -
Page 11: Maintenance And Service
Maintenance and Service Maintenance and cleaning Before any work on the power tool itself, pull the mains plug. For safe and proper working, always keep the power tool and the ventilation slots clean. A damaged hammer rod protector should be changed immediately. We recommend having this carried out by an after-sales service.
