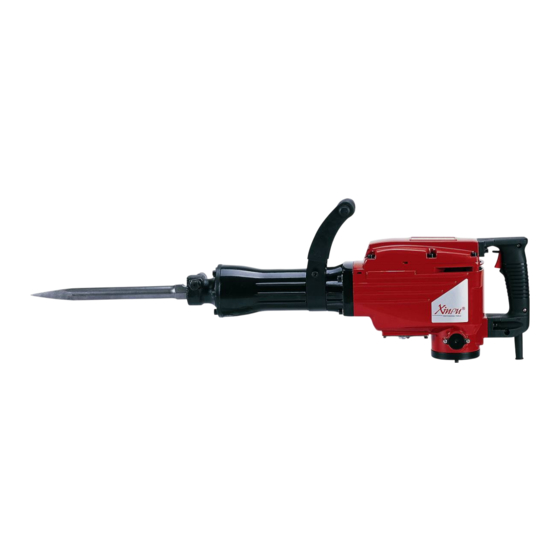

Demolition Hammer
Model: XP-65RA-2
HANDLING INSTRUCTIONS
Before using this this demolition hammer, please carefully read though these
HANDLING INSTRUCTIONS. Ensure that you know how the machine works, and how it
should be operated. Maintain the machine in accordance with the instructions, and make
certain that the machine work correctly, please store this instriation and other enclosed
documents with the machine together
Bj:2013
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Xinpu XP-65RA-2
Summary of Contents for Xinpu XP-65RA-2

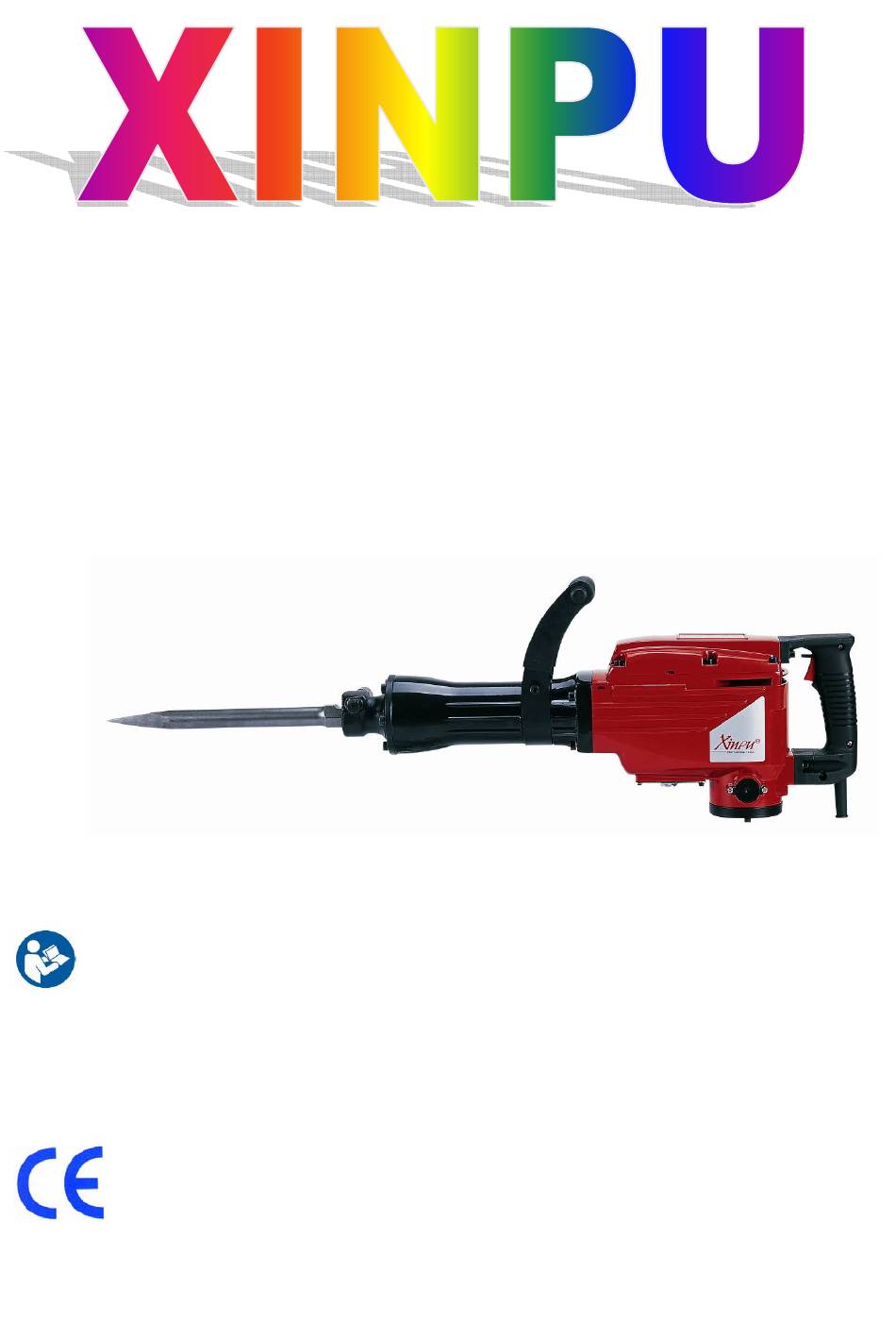

- Page 1 Demolition Hammer Model: XP-65RA-2 HANDLING INSTRUCTIONS Before using this this demolition hammer, please carefully read though these HANDLING INSTRUCTIONS. Ensure that you know how the machine works, and how it should be operated. Maintain the machine in accordance with the instructions, and make...
-
Page 2: Table Of Contents
Contents 1. Machine information 2. Safety instruction 3. Assembly 4. Operation 5. Maintenance 1. Machine information Technical specifications XP-65RA-2 Machine Type Voltage 110V、115V、120V、127V、220V、230V、240V～ Frequency 50Hz/60Hz Input power 1500W Impact rate... - Page 3 Optional accessories (sold separately） Notice: Optional accessories (sold separately) are recommended only for our tool for specified purpose in manual, any other brand accessories or attachments used may present risk of injury. 1. Point chisel Hexagon size30*410 length (Unit: mm) 2.
- Page 4 8. Bush hammer heads + Shank Hexagon size30*410 length (Unit: mm) Tooth distance: 12mm Tooth high: 8mm Length*width: 60*60mm 9. Tamping plate +Shank Hexagon size30*394 length (Unit: mm) Length*width: 150*150mm 10. Big flat spade+ Shank Hexagon size30*296 length (Unit: mm) Length*width: 170*150mm 11.
-
Page 5: Safety Instruction
2. Safety instructions In this operator's manual/or machine’s labels following symbols are used: Read the manual carefully Accordance with essential applicable safety of European directives Denote risk of personal injury, loss of life or damage to the tool in case of nonobservance of the instruction in this manual. - Page 6 General Power Tool Safety Warnings WARNING Read all safety warnings and all instructions Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference The term “power tool” in the warnings refer to your mains operated (corded) power tool or battery operated (cordless) power tool.
- Page 7 b) Use safety equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.
- Page 8 Special requirements for Chisel Wear ear protectors with impact drills. Exposure to noise can cause hearing loss. Use auxiliary handles supplied with the tool. Loss of control can cause personal injury. Additional safety rules: 1. Wear a hard hat (safety helmet), safety glasses and /or face shield. It is also highly recommended that you wear a dust mask, ear protectors and thickly padded gloves.
-
Page 9: Assembly
3. Assembly Name of the parts Mounting tool bits Warning: before do it, make sure unplug the machine! (1) Pull out of the retainer "2", turning 180℃ clockwise or anticlockwise, insert the accessory shank portion"1" into the hole on the front cover. (2) Turning the retainer back into original position. -
Page 10: Operation
4. Operation Prior to operation 1. Power source Ensure that the power source to be utilized conforms to the power requirements which specified on the name plate of the hammer. 2. Power switch Ensure that the power switch is in the position of OFF. If the plug is connected to power receptacle while the power switch is in ON position, the demolition hammer will start operation immediately, which can cause serious accident! Operation... - Page 11 Maintenance and inspection Before do any maintenance, ensure unplug the plug. 1. Inspecting the demolition hammer Use a dull accessory, such as bull point, cutter, etc., will cause motor malfunction and efficiency degraded. Replace with a new one when your accessory is abased. 2.
- Page 12 CE Declaration of conformity We herewith declare, That the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us. In case of alternation of the machine, not agreed upon by us, this declareation will lose its validity. Machine Description: Demolition Hammer Machine Type:...
