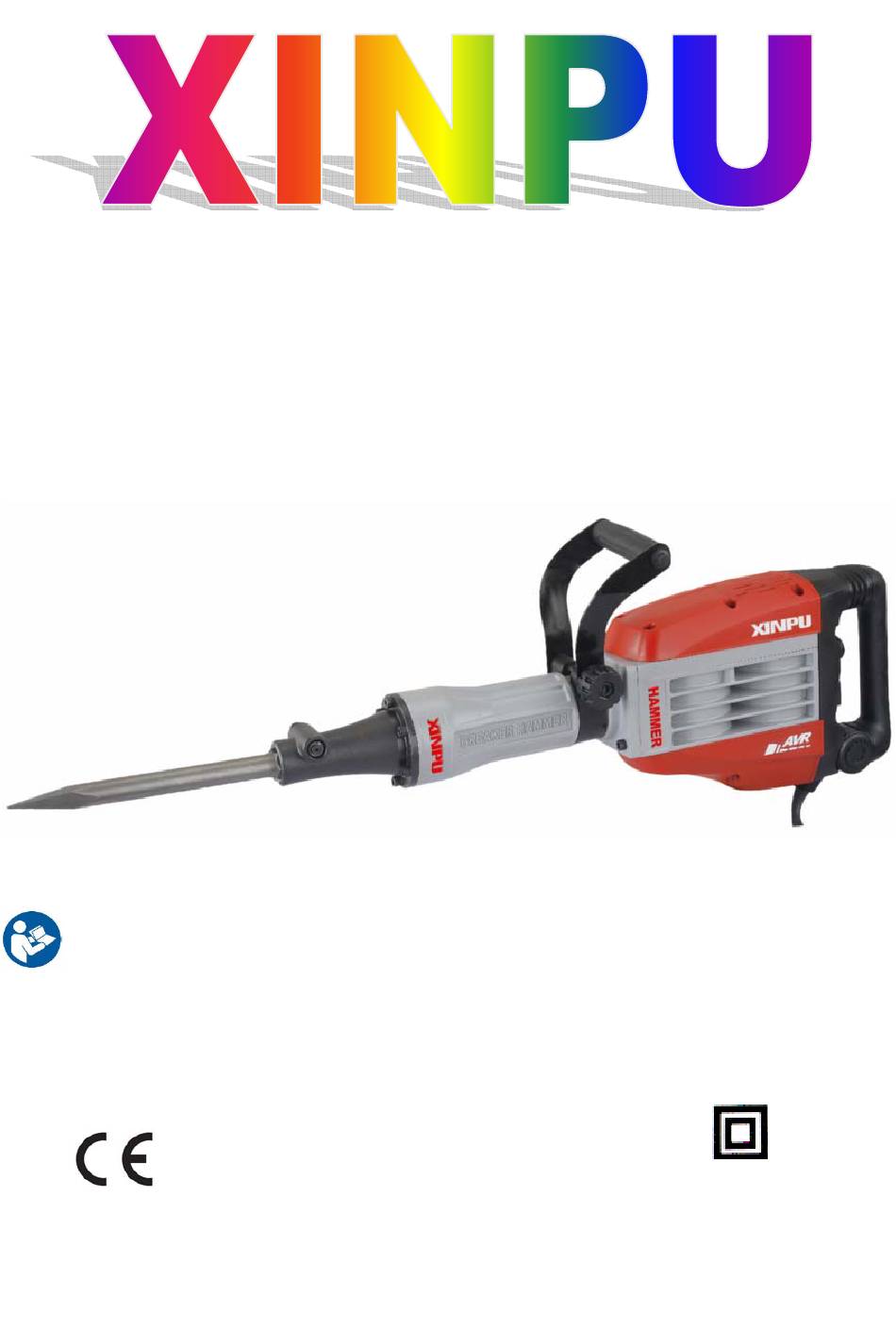

Demolition Hammer
Model: XP-G80BE
HANDLING INSTRUCTIONS
Before using this XINPU demolition hammer, please carefully read though these
HANDLING INSTRUCTIONS. Ensure that you know how the machine works, and how it should
be operated. Maintain the machine in accordance with the instructions, and make certain that the
machine work correctly, please store this instriation and other enclosed documents with the
machine togeth
Bj:2014
Zhejiang Xinpu Industrial & Commercial Co., Ltd.
106, No. 330 National Road, Huajie Industrial Zone, Yongkang City, Zhejiang 321300, P. R. China
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Xinpu XP-G80BE
Summary of Contents for Xinpu XP-G80BE
- Page 1 Model: XP-G80BE HANDLING INSTRUCTIONS Before using this XINPU demolition hammer, please carefully read though these HANDLING INSTRUCTIONS. Ensure that you know how the machine works, and how it should be operated. Maintain the machine in accordance with the instructions, and make certain that the...
-
Page 2: Table Of Contents
Contents 1. Machine information 2. Safety instruction 3. Assembly 4. Operation 5. Maintenance Warranty Environment 1. Machine information Technical specifications XP-G80BE Machine Type Voltage AC 230V Frequency 50Hz Input power 1700W Impact rate 1400/min Weight(w/o cord) - Page 3 Optional accessories (sold separately） Notice: Optional accessories (sold separately) are recommended only for XINPU tool for specified purpose in manual, any other brand accessories or attachments used may present risk of injury. 1. Point chisel Hexagon size30*410 length (Unit: mm) 2.
-
Page 4: Safety Instruction
2. Safety instructions In this operator's manual/or machine’s labels following symbols are used: Denote risk of personal injury, loss of life or damage to the tool in case of Read the manual carefully nonobservance of the instruction in this manual. Accordance with essential... - Page 5 Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Page 6 Any damage and abnormal happen, please stop to use immediately and disconnect it, ask authorized serve center to check and repair. Parts replace: Only original XINPU's parts can be used to replace by authorized service center. Right use accessories and parts: Don't use other parts and accessories which not mentioned in the...
-
Page 7: Assembly
the tool can match the power supply, otherwise the power tool may be damaged and cause injuries. Don't wipe plastic part with solvent: Solvent such as gasoline, thinner, alcohol etc. these kind of chemical material, are not allowed to use, water or soap are recommended! In case of damages the replacement of the plug or the supply cord shall always be carried out by the manufacturer of the tool or his service organization 3. - Page 8 For low temperatures, the power tool reaches the full impact rate only after a certain time. This start-up time can be shortened by striking the chisel in the power tool against the floor one time. Mounting tool bits Warning: before do it, make sure unplug the machine! (1) Pull out of the retainer "2", turning 180℃...
- Page 9 图 2 图 3 图 1 Fill the 45g Fill the 10g grease into oil into the the aluminum cylinder head bottom 图 4 图 5 图 6 Fill the 5g grease into the Piston 图 8 图 7 1. Loosen the four screws and Washers between aluminum head and gear box by 6mm HEX head wrench.(See Fig1) 2.
-
Page 10: Warranty
Notice：Please fill the 45g grease into the aluminum head bottom (See Fig 4 and Fig 5) 7. Fill the 10g oil in the cylinder; please make sure it is clean before filling. (See Fig 6) 8. Fill the 5g grease into the piston. please make sure it is clean before filling. (See Fig 7) 9.
