Xinpu XP-G65BC-1 Handling Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

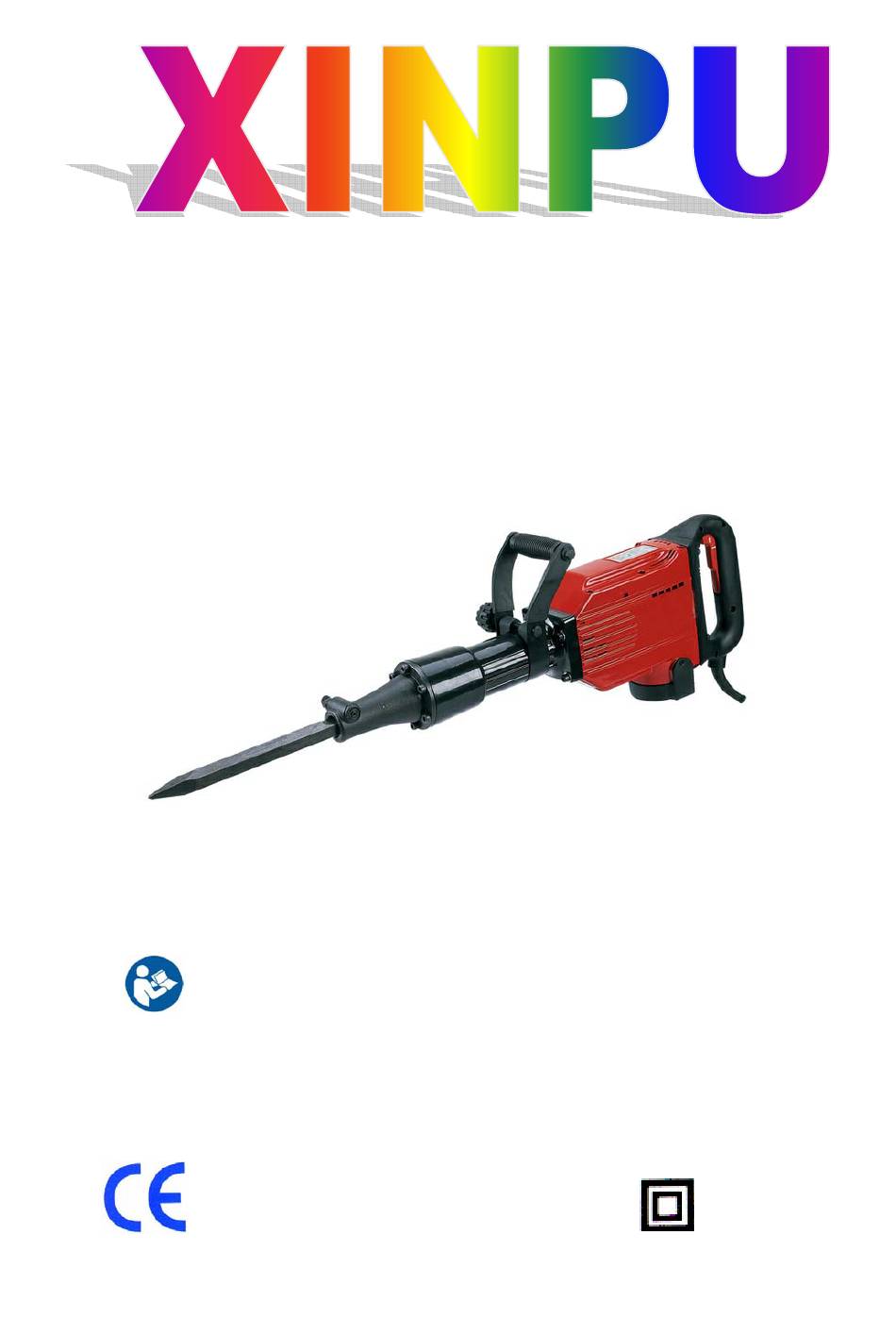

Demolition Hammer
Model: XP-G65BC-1
HANDLING INSTRUCTIONS
With active vibration reducing system
Before using this XINPU demolition hammer, please carefully read
though these HANDLING INSTRUCTIONS. Ensure that you know how the
machine works, and how it should be operated. Maintain the machine in accordance
with the instructions, and make certain that the machine work correctly, please store
this instriation and other enclosed documents with the machine togeth
Bj:2013
Zhejiang Xinpu Industrial & Commercial Co., Ltd.
106, No. 330 National Road, Huajie Industrial Zone, Yongkang City, Zhejiang 321300, P. R. China

Advertisement

loading
Need help?

Need help?

Do you have a question about the XP-G65BC-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Xinpu XP-G65BC-1

Summary of Contents for Xinpu XP-G65BC-1

  • Page 1 Model: XP-G65BC-1 HANDLING INSTRUCTIONS With active vibration reducing system Before using this XINPU demolition hammer, please carefully read though these HANDLING INSTRUCTIONS. Ensure that you know how the machine works, and how it should be operated. Maintain the machine in accordance...

  • Page 2: Table Of Contents

    Contents 1. Machine information 2. Safety instruction 3. Assembly 4. Operation 5. Maintenance 1. Machine information Technical specifications XP-G65BC-1 Machine Type Voltage AC 220-240V Frequency 50Hz Input power 2000W Impact rate...
  • Page 3 1 couple Optional accessories (sold separately） Notice: Optional accessories (sold separately) are recommended only for XINPU tool for specified purpose in manual, any other brand accessories or attachments used may present risk of injury. 1. Tine point Hexagon size30*410 length (Unit: mm) 2.
  • Page 4 4. Tine Spade Hexagon size30*440 length (Unit: mm) 5. Bush hammer heads + Shank Hexagon size30*410 length (Unit: mm) Tooth distance: 12mm Tooth high: 8mm Length*width: 60*60mm 6. Tamping plate + Shank Hexagon size30*394 length (Unit: mm) Length*width: 150*150mm 7. Big flat spade+ Shank Hexagon size30*296 length (Unit: mm) Length*width: 170*150mm 8.

  • Page 5: Safety Instruction

    9. Lubricate oil one bottle(60g) 2. Safety instructions In this operator's manual/or machine’s labels following symbols are used: Read the manual carefully Accordance with essential applicable safety of European directives Double insulation Denote risk of personal injury, loss of life or damage to the tool in case of nonobservance of the instruction in this manual.
  • Page 6 General Power Tool Safety Warnings WARNING Read all safety warnings and all instructions Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference The term “power tool” in the warnings refer to your mains operated (corded) power tool or battery operated (cordless) power tool.
  • Page 7 b) Use safety equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.
  • Page 8 12、Any damage and abnormal happen, please stop to use immediately and disconnect it, ask authorized serve center to check and repair. 13. Parts replace: Only original XINPU's parts can be used to replace by authorized service center. 14. Right use accessories and parts: Don't use other parts and accessories which not mentioned in the manual otherwise may cause injuries! 15.

  • Page 9: Assembly

    Warning! This power tool produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this power tool.

  • Page 10: Operation

    Accessory Retainer pull out and eurn+/-180 Remarking: When you removing the accessory, such as a bull point, a cutter etc.., follow above procedure in reverse order. 4. Operation Prior to operation 1. Power source Ensure that the power source to be utilized conforms to the power requirements which specified on the name plate of the hammer.

  • Page 11: Maintenance

    Push to the top as arrow 1 direction; Push back to max. as arrow Switch ON 2 direction(power source on)，then push as arrow 1 direction to max.(lock switch). Switch OFF When press the switch button again, switch is to off positon. Operation 1.
  • Page 12 图 1 图 2 图 3 图 4 图 5 图 6 图 7 图 8 1. Loosen the 4 screws between aluminum head and gear box by 6 mm HEX head wrench.(See Fig1) 2. Disassemble the aluminum head, cylinder and piston.(See Fig2) 3.
  • Page 13 *Suggestion: All above operations to be carried out by our authorized service agent. Maintenance and inspection Before do any maintenance, ensure unplug the plug. 1. Inspecting the demolition hammer Use a dull accessory, such as bull point, cutter, etc., will cause motor malfunction and efficiency degraded.
  • Page 14 Faulty and /or discarded electrical or electronic apparatus have to be collected at the appropriate recycling location. CE Declaration of conformity Zhejiang Xinpu Industrial & Commercial Co., Ltd. We herewith declare, No.106, 330 National Highway, Huajie Industrial Zone, Yongkang, Zhejiang 321300, China That the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
