Hammer

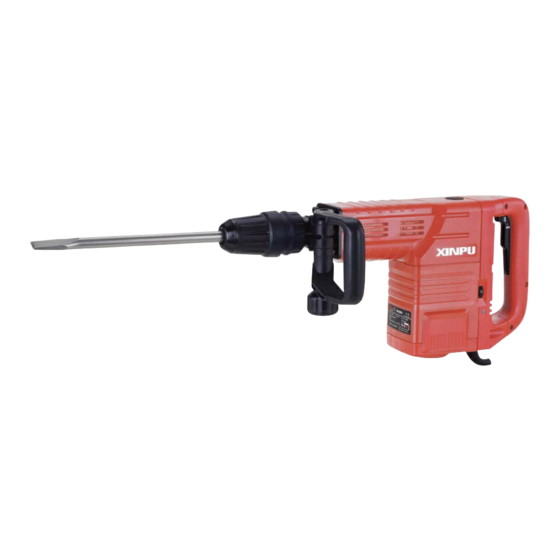

Model: XP-G55A
HANDLING INSTRUCTIONS
Before using this XINPU demolition hammer, please carefully read
though these HANDLING INSTRUCTIONS. Ensure that you know how the machine works, and
how it should be operated. Maintain the machine in accordance with the instructions, and make
certain that the machine work correctly, please store this instriation and other enclosed
documents with the machine together.
Bj: 2013
Zhejiang Xinpu Industrial & Commercial Co., Ltd.
106, No. 330 National Road, Huajie Industrial Zone, Yongkang City, Zhejiang 321300, P. R. China
Advertisement
Table of Contents
Related Manuals for Xinpu XP-G55A
Summary of Contents for Xinpu XP-G55A
- Page 1 Model: XP-G55A HANDLING INSTRUCTIONS Before using this XINPU demolition hammer, please carefully read though these HANDLING INSTRUCTIONS. Ensure that you know how the machine works, and how it should be operated. Maintain the machine in accordance with the instructions, and make certain that the machine work correctly, please store this instriation and other enclosed documents with the machine together.
-
Page 2: General Safety Rules
GENERAL SAFETY RULES WARNING: Read all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 3 b) Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.
- Page 4 5) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Power Tool-specific Safety Rules When working with the power tool, always hold it firmly with both hands and provide foe a secure stance.
-
Page 5: Functional Description
The power tool id intended for chiseling work in concrete, brick, masonry and asphalt as well as for driving in and compacting, when using the respective accessories. SPECIFICATIONS Technical Data Demolition Hammer XP-G55A Voltage 220-240V Frequency 50Hz Rated power input... -
Page 6: Standard Accessories
Geeignete Maßnahmen umfassen unter anderem eine regelmäßige Wartung und Pflege des Elektrowerkzeuges und der Werkzeugaufsätze, Warmhalten der Hände, regelmäßige Pausen sowie eine gute Planung der Arbeitsabläufe. Standard accessories Hexagon bar wrench 10mm 1 piece Amphibious screwdriver 1 piece One bottle of grease Bull point chisel(18×400mm) 1 piece flat chisel(18×400mm) -
Page 7: Auxiliary Handle
6. Tamping (Hammering) (1) Rammer (2) Shank (150 x 150 mm) Optional accessories are subject to change without notice. Name of the parts 1. Hammer rod protector 2. Protective lining 3. Move limited sleeve 4. Switch 5. Speed Adjuster Function Knob 6. -
Page 8: Starting Operation
Inserting(see figure A) Clean and lightly grease the shank end of the tool. Insert the tool in a twisting manner into the tool holder until it latches itself. Check the latching by pilling the tool. Removing (see figure B) Push back the Protective lining 2 and remove the tool. -
Page 9: Maintenance And Service
If the power tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service center for XINPU power tools. In all correspondence and spare parts orders, please always include the 8-digit article number given on the...
