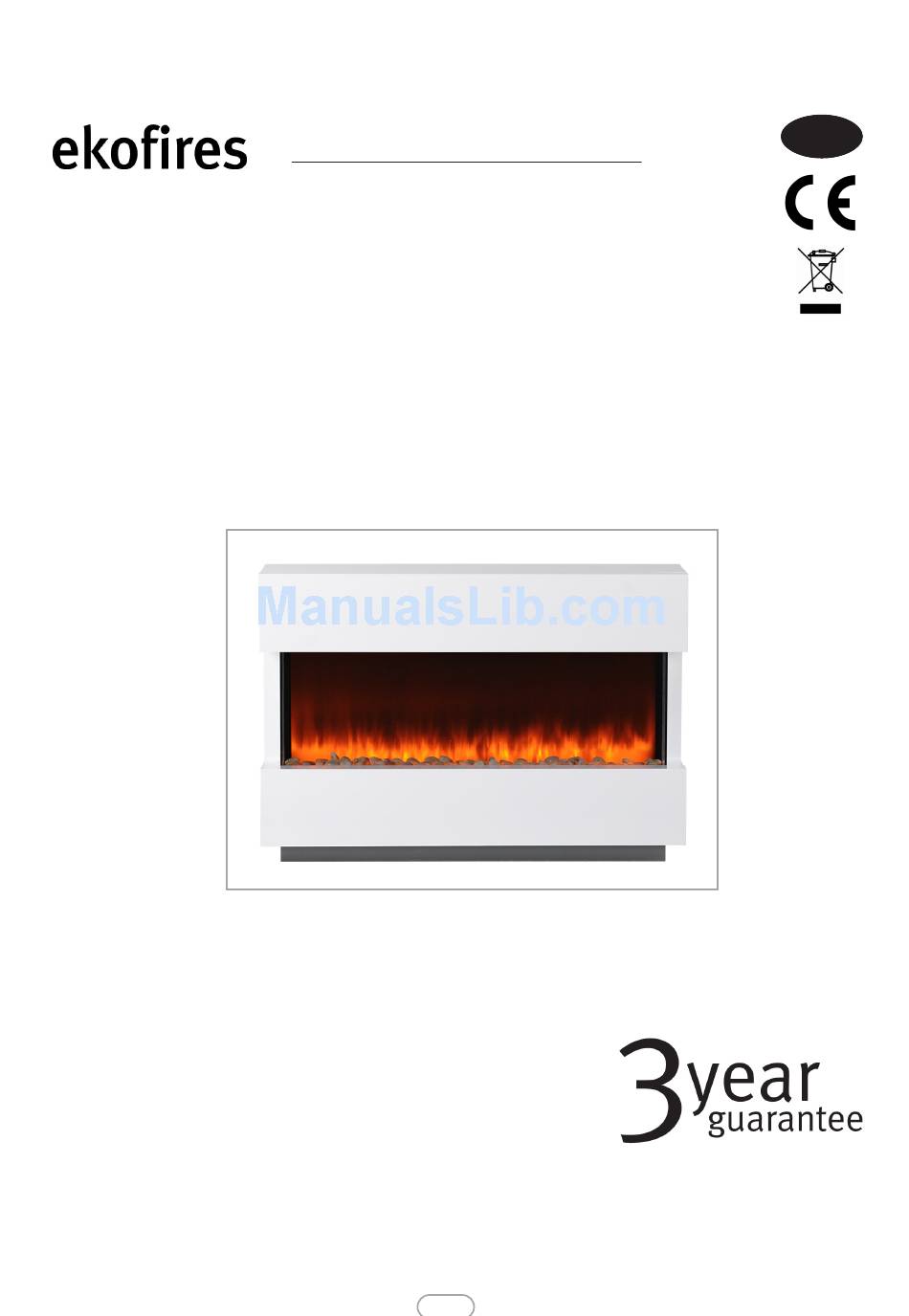

INSTALLATION & USER INSTRUCTIONS
FLOOR MOUNTED ELECTRIC FIRE
Christchurch, Dorset BH23 2BT
Tel: 01202 588 638
Fax: 01202 499 639
www.ekofires.co.uk
e-mail: sales@ekofires.co.uk
Please note: Except where otherwise stated, all rights,
including copyright in the text, images and layout of this
booklet is owned by Focal Point Fires plc. You are not
permitted to copy or adapt any of the content without
the prior written permission of Focal Point Fires plc.
MODELS COVERED BY THESE INSTRUCTIONS
1220 COMPLETE ELECTRIC SUITE

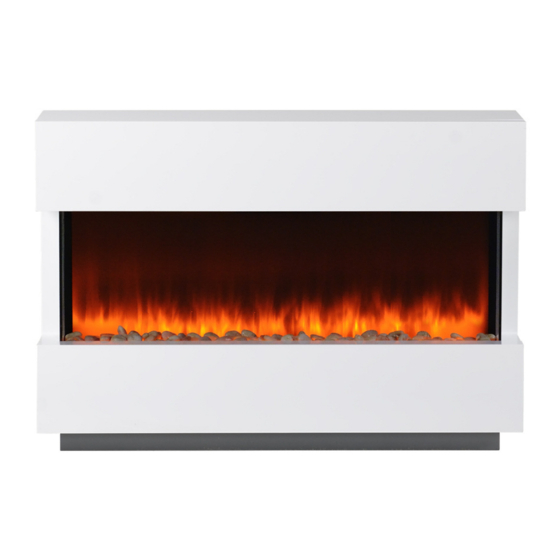

MODEL SHOWN: EKO 1220 COMPLETE ELECTRIC SUITE
All instructions must be handed to the user for
Revision A - 04/16
1
GB IE
safekeeping.
©
2016 Focal Point Fires plc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ekofires 1220
Summary of Contents for Ekofires 1220
- Page 1 Fax: 01202 499 639 www.ekofires.co.uk e-mail: sales@ekofires.co.uk MODEL SHOWN: EKO 1220 COMPLETE ELECTRIC SUITE Please note: Except where otherwise stated, all rights, including copyright in the text, images and layout of this booklet is owned by Focal Point Fires plc. You are not...
-
Page 2: Table Of Contents
I N S TA L L AT I O N & U S E R I N S T R U C T I O N S GB IE Section Contents Page No. Section Contents Page No. Installation Important Notes Operating the Appliance Installation Requirements 10.0... -
Page 3: Important Notes
1.0 IMPORTANT NOTES - CONTINUED • From time to time, check the cord for damage. Never use the appliance if the cord or any part of the appliance shows signs of damage. • DO NOT run the mains cable under carpets, rugs etc. •... -
Page 4: Clearances To Combustibles
5.0 SITE REQUIREMENTS - CONTINUED GB IE DO NOT • recess any part of the appliance into the wall, or run the supply cable under carpets • site in a position where curtains or drapes could cover the appliance, or other soft materials could cover e.g. below a coat rack •... - Page 5 8.0 INSTALLATION - CONTINUED GB IE Installing the wall plugs into the wall. 1. Offer the appliance up to the wall in it’s desired location. Draw a mark where you wish to connect the strap in to the wall. Remove the appliance from the position and drill 1x hole (5.5mm diameter, 40mm deep).
-
Page 6: Operating The Appliance
9.0 OPERATING THE APPLIANCE GB IE This panel contains the buttons to properly operate the electric fire ,the Remote Control functions in the same way.The remote control has an effective range of up to 13 feet. 1. On/Off 2. Heater low (1000W) 3. -
Page 7: Safety Cutout System
9.0 OPERATING THE APPLIANCE - CONTINUED GB IE Remote Control The fire is supplied with an IR multifunction remote. Before the remote will operate the plastic insulating sheet needs to be removed. Battery Replacement Battery Requirements: CR2025 1. Locate and remove the battery bracket. 2.The battery has two sides, one with a button feature, and the other is flat. -
Page 8: Servicing
13.0 SERVICING GB IE There are no internal user serviceable parts. Check regularly for security of wall fixings as appropriate.Also check security of supply cable and connections. If the supply cable becomes damaged, it must be replaced by a service agent or competent person, such as a qualified electrician. This appliance is supplied with a BS1363 3 pin plug fitted with a 13 Amp fuse. -
Page 9: 15.0 Guarantee - Terms And Conditions
3G Service Department to the address below. Alternatively, you can email or fax. EKO Fires, 3G Service Department, Reid Street, Christchurch, Dorset, BH23 2BT. Email: service@ekofires.co.uk Fax. 01202 499326. Details required: 1.
