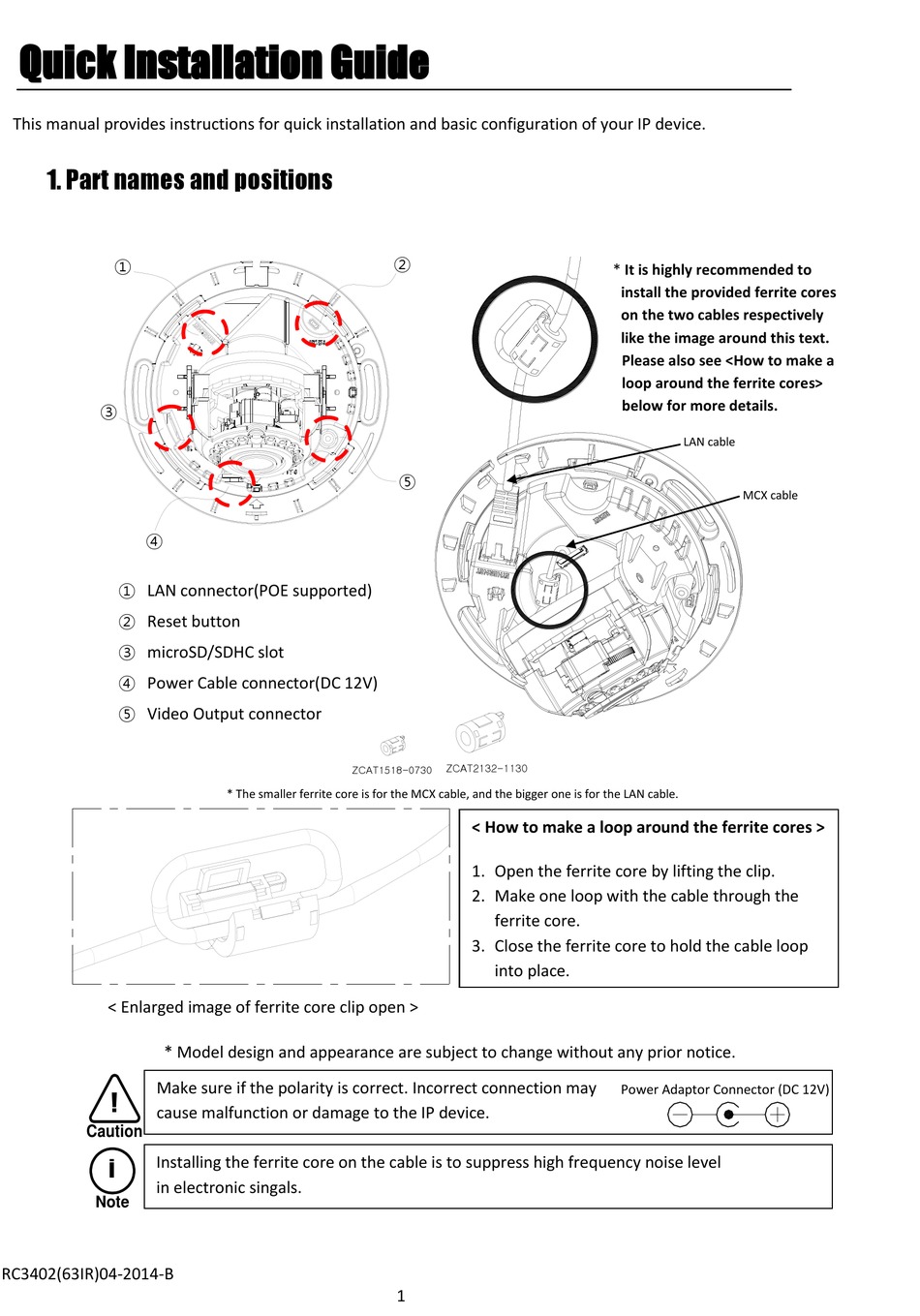

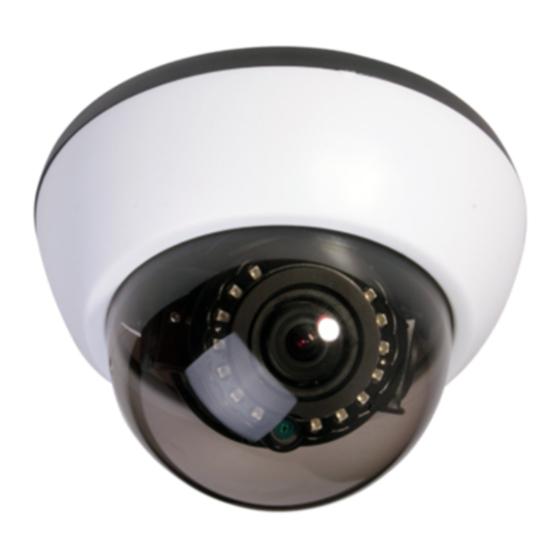

Quick Installation Guide
This manual provides instructions for quick installation and basic configuration of your IP device.
1. Part names and positions
①
③
④
① LAN connector(POE supported)
② Reset button
③ microSD/SDHC slot
④ Power Cable connector(DC 12V)
⑤ Video Output connector
< Enlarged image of ferrite core clip open >
* Model design and appearance are subject to change without any prior notice.
Make sure if the polarity is correct. Incorrect connection may
!
cause malfunction or damage to the IP device.
Caution
i
Installing the ferrite core on the cable is to suppress high frequency noise level
in electronic singals.
Note
RC3402(63IR)04-2014-B
IPN3402HD-6311
②
⑤
ZCAT1518-0730
ZCAT1518-0730
* The smaller ferrite core is for the MCX cable, and the bigger one is for the LAN cable.
1
* It is highly recommended to
ZCAT2132-1130
ZCAT2132-1130
< How to make a loop around the ferrite cores >
1. Open the ferrite core by lifting the clip.
2. Make one loop with the cable through the
ferrite core.
3. Close the ferrite core to hold the cable loop
into place.
install the provided ferrite cores
on the two cables respectively
like the image around this text.
Please also see <How to make a
loop around the ferrite cores>
below for more details.
LAN cable
MCX cable
Power Adaptor Connector (DC 12V)
Advertisement
Table of Contents
Related Manuals for Riva RC3402HD-6311IR
Summary of Contents for Riva RC3402HD-6311IR
- Page 1 Quick Installation Guide IPN3402HD-6311 This manual provides instructions for quick installation and basic configuration of your IP device. 1. Part names and positions ② ① * It is highly recommended to install the provided ferrite cores on the two cables respectively like the image around this text.
- Page 2 2. Install IP device There is only one type of mounting the device explained in this manual. Refer to the device’s installation guide for more various mounting types. 1) Place the installation template included in the package on the desired installation surface. 2) Drill holes on correct spots based on the template paper, and insert the anchor blocks into the holes.
- Page 3 3. Adjust angle of the camera 1) Adjust the angle by manually moving the camera gimbal and the horizontal platform following the instruction below. ② ①To adjust lens position, rotate the camera gimbal. ②To pan, rotate the horizontal platform, which is surrounded by the mounting plate.
- Page 4 5. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. Be sure that the device and PC are on the same area network before running the installation.
- Page 5 (The default username and password are: root and pass.) More Information To learn more about using other features of your devices, refer to the manuals as “RIVA Web Interface Manual Full HD Series” or “VCAsys Manual ”, which is available on www.rivatech.de...
- Page 6 6. View video on web page Once the device’s proper IP address has been identified, type the URL in a web browser to access the camera. At first time access, installation window may pop up. When the browser asks to install the AxUMF software, click Install to proceed. When Setup installation pop-up window appears, click Install to proceed with rest of installations.
- Page 7 9. Factory Default Resetting the device back to the factory default will initialize all parameters including the IP address back to the factory defaults. To reset to the factory default: Press the reset button and hold it while the device is in use. Release the button after 10 seconds.
- Page 8 Hexadecimal-Decimal Conversion Table Refer to the following table when you convert the MAC address of your device to IP address. Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec RC3402(63IR)04-2014-B...
