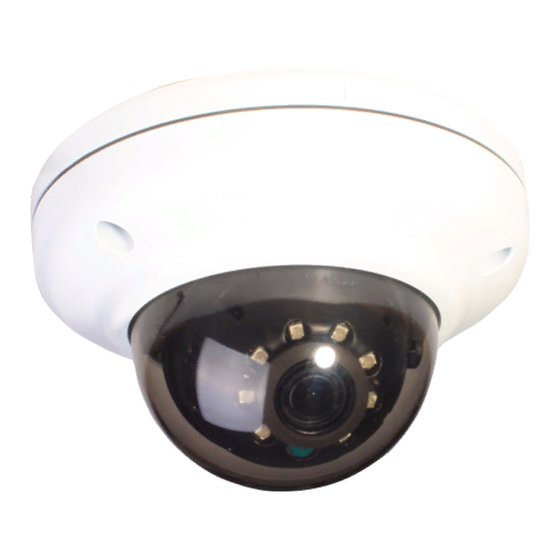

Page 1: Installation Guide
RC362HD-6211IR Installation Guide www.rivatech.de Specification subject to change without notice... -
Page 2: Precautions & Notes
Precautions & Notes Please read this manual carefully before installing the unit. Never disassemble the camera. Unauthorized disassembly may cause equipment failure or damage to the unit. Please do not install the camera in a place exposed to direct sunlight. ... -
Page 3: Table Of Contents
Table of Contents Precautions & Notes ....................2 1. FEATURES ......................4 2. PACKAGE CONTENTS..................... 5 3. PART NAMES ......................6 4. INSTALLATION ...................... 7 4.1. Installing the camera ......................7 4.1.1. Installation without bracket ..................7 4.1.2. Compatible Accessories ....................9 4.2. -
Page 4: Features
RC Series RC362HD-6211IR Installation Guide 1. FEATURES Camera 1/2.9” 1080p CMOS Image Sensor True Day/Night Embedded IR Illuminator Video H.264 Baseline, Main, High profile(MPEG-4 Part 10/AVC), MJPEG(Motion JPEG) Max 30fps in 1080p Text Overlay Network ... -
Page 5: Package Contents
RC Series RC362HD-6211IR Installation Guide 2. PACKAGE CONTENTS Please unpack the package carefully and handle the equipment with care. The package contains: Camera Screws (M4x30) & Plastic Anchors & O-Rings Quick Installation Guide L Wrench (2.5mm) Camera Camera Cable Cable O-ring &... -
Page 6: Part Names
RC Series RC362HD-6211IR Installation Guide 3. PART NAMES Ambient Light Sensor micro SD/SDHC Card Slot F/D Button LAN Cable Connector DC 12V Power Connector * Models herein and their appearance are subject to change without prior notice. Ambient Light Sensor Used to detect the level or the intensity of light for the IR operation. -
Page 7: Installation
RC Series RC362HD-6211IR Installation Guide 4. INSTALLATION 4.1. Installing the camera 4.1.1. Installation without bracket Installation Template (Unit: mm) Installation template’s image size scale in this installation guide is not 1:1. The correct-size template paper can be found inside the package separately. - Page 8 RC Series RC362HD-6211IR Installation Guide 1) Place the installation template included in the package on a desired installation surface. 2) Drill two holes for the plastic anchors based on the template paper, a bigger hole for the cable lines, and insert the plastic anchors into the two drilled holes.
-
Page 9: Compatible Accessories
RC Series RC362HD-6211IR Installation Guide To prevent products from damage, place the camera on stable and non-vibrating surfaces. If the stability is in doubt, consult the safety personnel for reinforcements, and then proceed with the installation. Caution 4.1.2. Compatible Accessories The following are the various combinations of the compatible accessories to mount this camera model. -
Page 10: Adjusting Angle Of Camera
RC Series RC362HD-6211IR Installation Guide 4.2. Adjusting angle of camera Adjust the angle of the camera by manually moving the corresponding parts by reference to the directions below. Gimbal Inner Liner Gimbal Bracket Tilt Stopper A. To pan, rotate the panning B. -
Page 11: Connections
RC Series RC362HD-6211IR Installation Guide 5. CONNECTIONS DC Power RJ-45 LAN cable Power Adaptor DC Power (Power connection) This is a power connector for DC12V. Use the provided power adaptor with the compatible plug for your environment. RJ-45 (LAN connection) It is a LAN connector for 10/100 Base-T Ethernet and PoE. -
Page 12: Configuration
RC Series RC362HD-6211IR Installation Guide 6. CONFIGURATION 6.1. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers. The MAC address is attached to the bottom of the device. -
Page 13: Custom Ip Environment
RC Series RC362HD-6211IR Installation Guide Custom IP Environment Please access our website and download necessary IPAdminTool first: http://www.rivatech.de/en/downloads/software IPAdminTool is a management tool, which automatically scans all the network products for users to perform administrative tasks, which include network configuration, firmware update, device reboot, and device organizations. -
Page 14: View Video On Web Page
RC Series RC362HD-6211IR Installation Guide 6.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. The default username and password is root / pass. 6.2.1. ActiveX Installation When the browser asks to install the AxUMF software, click Install to proceed. -
Page 15: View Video Using Ipadmintool
RC Series RC362HD-6211IR Installation Guide 6.2.2. View Video using IPAdminTool IPAdminTool automatically searches for all the activated IP devices and shows the product name, IP address, MAC address and etc. 1. From the IPAdminTool’s product list, select the device by highlighting it. -
Page 16: Reboot
RC Series RC362HD-6211IR Installation Guide 6.3. Reboot Perform the following procedures to rest your device: Press the reset button, and hold for 2 seconds while the device is in use. Wait for the system to reboot. Please do not hold the reset button for more than 2 seconds. Otherwise, the camera may be switched to its Factory Default settings. - Page 17 RC Series RC362HD-6211IR Installation Guide How to recover your system from Safe Mode Browse… The messages above will appear on the webpage when your device has been rebooted in safe mode. Then, you should follow the instructions on the webpage according to each step.
-
Page 18: Appendix (A): Specifications
RC Series RC362HD-6211IR Installation Guide APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/2.9” 1080p CMOS CMOS Effective Pixels 1920x1080 Scanning system Progressive scanning Resolution 1920 x 1080 Min. Color: 0.5 Lux ELECTRICAL Illumination B/W: 0 Lux (IR LED On) -
Page 19: Electrical Characteristics
RC Series RC362HD-6211IR Installation Guide 1 x microSD memory card slot (SD/SDHC up to 32GB supported) SD Card Slot ※ card not included (Class 4 and higher recommended for HD recordings) Electrical Characteristics Power Source DC 12V / PoE IEEE802.3af (Class 0) Power Consumption Max. -
Page 20: Appendix (B): Power Over Ethernet
RC Series RC362HD-6211IR Installation Guide APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. The IEEE 802.3af allows for two power options for Category 5 cables. -
Page 21: Appendix (C): Dimensions
RC Series RC362HD-6211IR Installation Guide APPENDIX (C): DIMENSIONS (Unit: mm) 04-2017-A www.rivatech.de... -
Page 22: Appendix (D): Hexadecimal-Decimal Conversion Table
RC Series RC362HD-6211IR Installation Guide APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when converting the MAC address of the device to the IP address. Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec 04-2017-A... -
Page 23: Revision History
RC Series RC362HD-6211IR Installation Guide REVISION HISTORY REV# DATE(M/D/Y) Comments 07-2015-B 07/13/2015 First release version 11-2015-A 11/26/2015 Correction on the screenshot images of IPAdminTool (P.16&18) 09-2016-A 09/13/2016 Website link to confirm the CE approval in Precautions & Notes 04-2017-A 04/03/2017...
