4 、 Lubrication / Clutch / Transmission

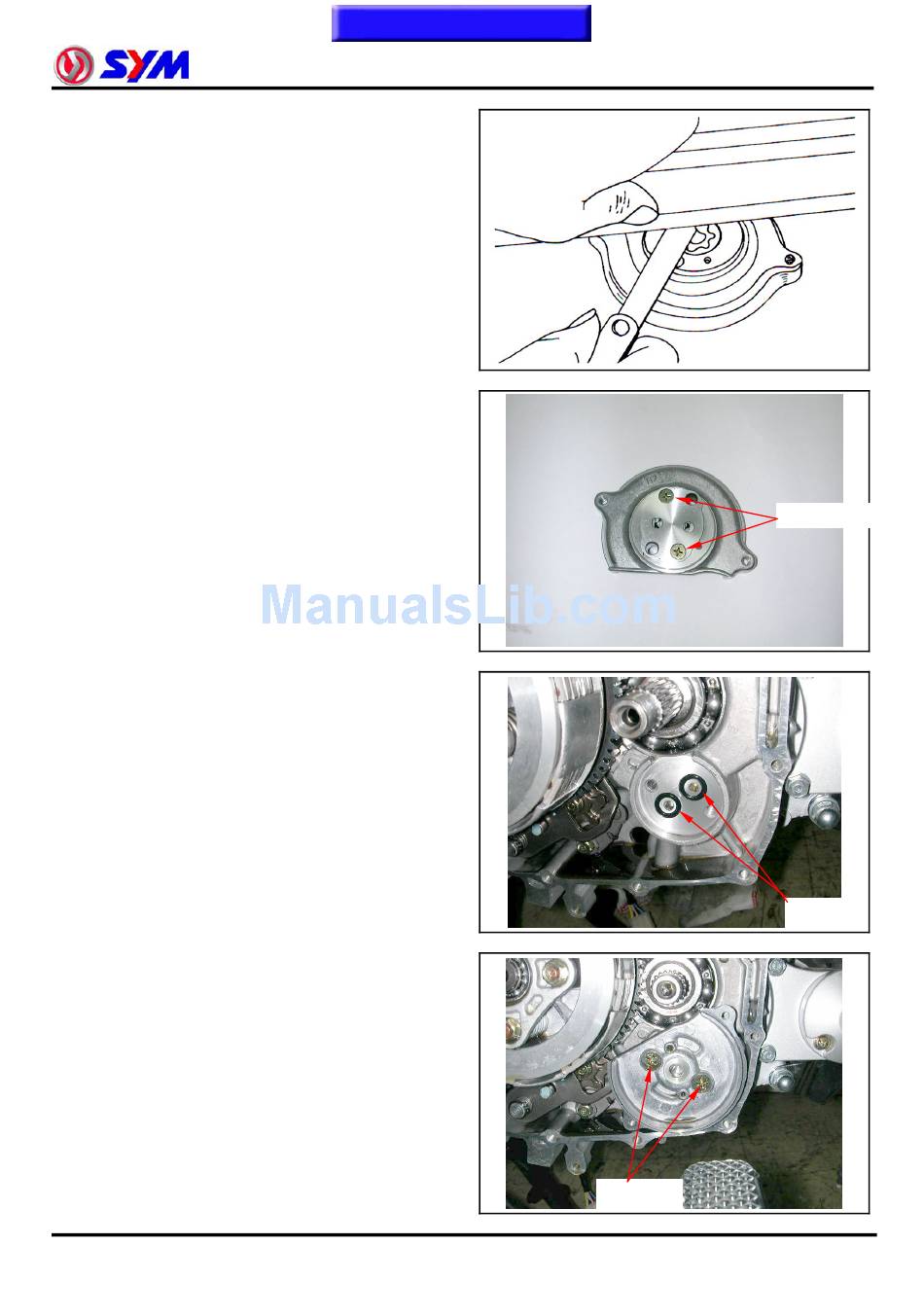

Check the unevenness between rotor face
and pump body
Service limit: 0.11 mm

Oil Pump Assembly / Installation

Install inner and outer rotors into the pump
body.
Align the pump cover and the gasket and
Screw×2
assemble it properly. Then tighten the holding
screws. (Screw×2)。
Install new O-rings.
O-Rings
Install the oil pump(screw×2)。
Torque value：0.3~0.4kgf-m
Screw×2
4-9
