4 、 Lubrication / Clutch / Transmission

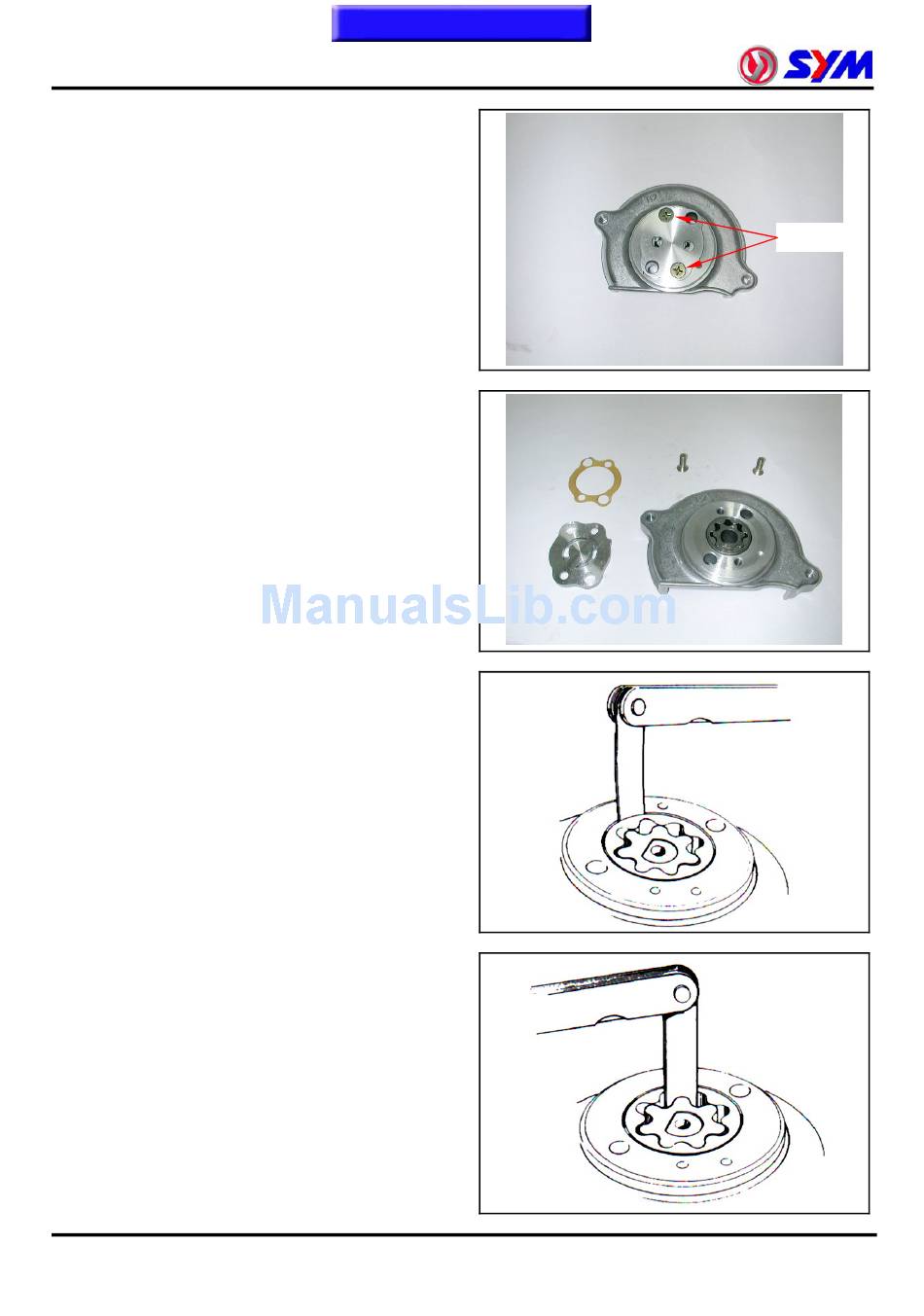

Oil pump disassembly
Remove the oil pump cover(screw×2)。
screw×2
Remove the oil pump cover and the gasket.
Oil Pump Inspection
Check the clearance between oil pump body
and outer rotor.
Service limit: under 0.35 mm
Check clearance between inner and outer
rotors.
Service limit: under 0.40 mm
4-8
