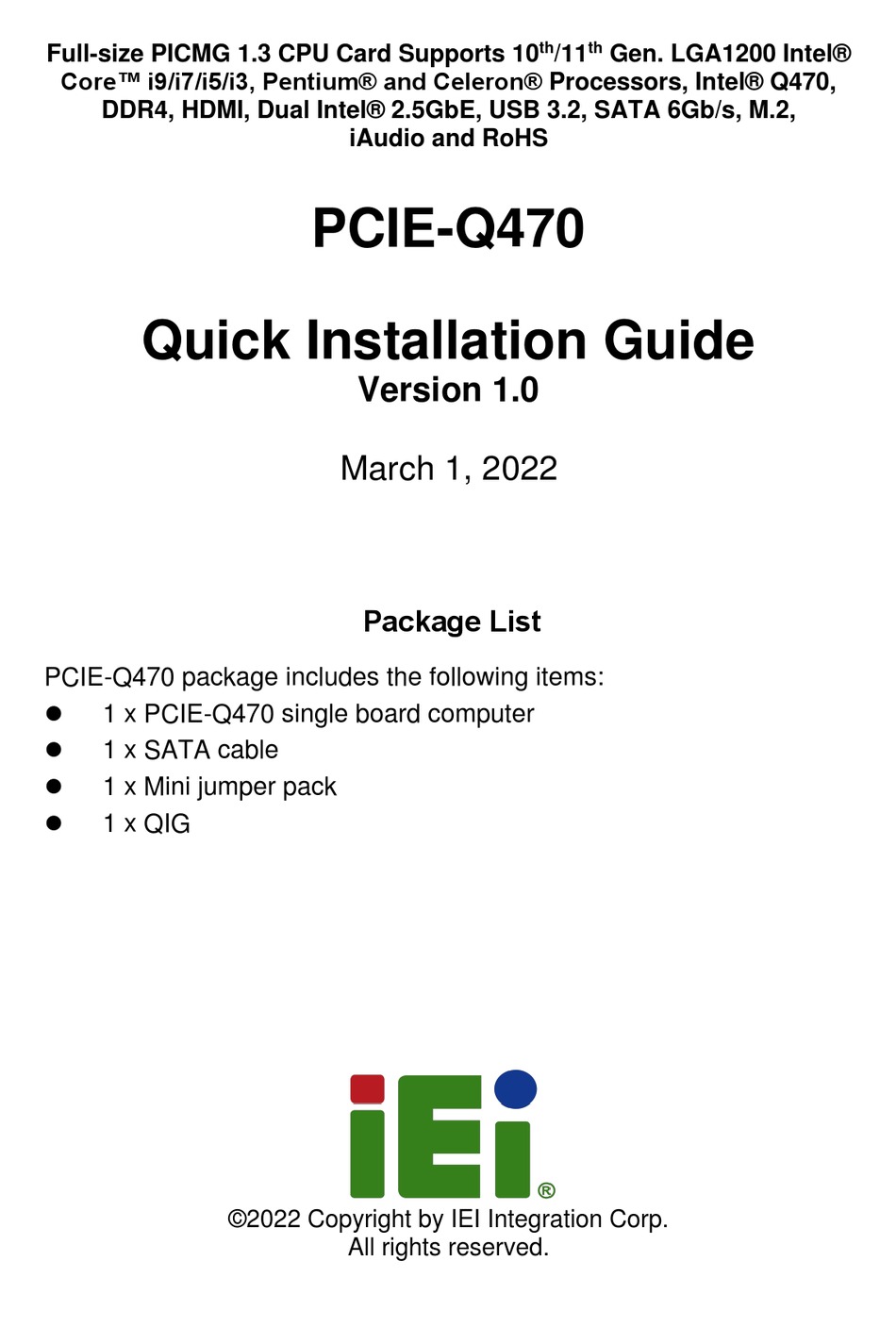

Full-size PICMG 1.3 CPU Card Supports 10
Core™ i9/i7/i5/i3, Pentium® and Celeron® Processors, Intel® Q470,
DDR4, HDMI, Dual Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2,
Quick Installation Guide
PCIE-Q470 package includes the following items:
1 x PCIE-Q470 single board computer
1 x SATA cable
1 x Mini jumper pack
1 x QIG
iAudio and RoHS
PCIE-Q470
Version 1.0
March 1, 2022
Package List
© 2022 Copyright by IEI Integration Corp.
All rights reserved.
th
th
/11
Gen. LGA1200 Intel®
Advertisement
Related Manuals for IEI Technology PCIE-Q470
Summary of Contents for IEI Technology PCIE-Q470
- Page 1 DDR4, HDMI, Dual Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, iAudio and RoHS PCIE-Q470 Quick Installation Guide Version 1.0 March 1, 2022 Package List PCIE-Q470 package includes the following items: 1 x PCIE-Q470 single board computer 1 x SATA cable 1 x Mini jumper pack ...
-
Page 2: Specifications
Specifications CPU: Generation LGA1200 Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processors Chipset: Intel® Q470 Memory: Four 288-pin 2933 MHz dual-channel DDR4 DIMM slots supporting up to 128 GB memory BIOS: AMI UEFI BIOS Graphics Engine: 10th Generation CML-S: up to Intel®... - Page 3 2 x RS-422/485 (1x4 pin, p=2.0) Audio: 1 x IAUDIO connector supporting IEI AC-KIT-888S audio module (2x5 pin, p=2.0) Front Panel: 1 x Front panel (2x7 pin, p=2.54; power LED, HDD LED, power button, reset button, speaker) LAN LED: 2 x LAN LED (1x2 pin, p=2.54) ...
- Page 4 IEI Resource Download Center All the drivers and utility for the PCIE- https://download.ieiworld.com Q470 are available on IEI Resource Download Center. Type PCIE-Q470 and press Enter to find all the relevant software, utilities, and documentation. To install software from the downloaded ISO file, mount the file as a virtual drive to view its content.
-
Page 5: Ordering Information
Ordering Information PCIE-Q470-R10: Full-size PICMG 1.3 CPU card supports 10th/11th Gen. LGA1200 Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processors, Intel® Q470, DDR4 DIMM, HDMI, dual Intel® 2.5GbE, USB 3.2 Gen 2, SATA 6Gb/s, M.2, iAudio and RoHS CB-USB02-RS: Dual port USB cable with bracket, 300mm, p=2.54... -
Page 6: Jumpers Setting And Connectors
Jumpers Setting and Connectors LABEL FUNCTION J_ATX_AT1 AT/ATX power mode setting SW_BIOS1_1 BIOS selection switch J_CMOS1 Clear CMOS jumper J_FLASH1 Flash descriptor security override jumper CPU12V1 ATX CPU 12V power connector J_AUDIO1 Audio connector BAT1 RTC battery connector CHASSIS1 Chassis intrusion connector CHA_DIMM0, CHA_DIMM1 DDR4 DIMM slots CHB_DIMM0, CHB_DIMM1... - Page 7 USB1 Internal USB 3.2 Gen 1 connector (Type-A) JUSB3-1 Internal USB 3.2 Gen 1 connector LAN1, LAN2 External 2.5GbE RJ-45 connectors HDMI1 External HDMI connector CN1, CN2 External USB 3.2 Gen 1 connectors CON1 External USB 3.2 Gen 2 connector J_ATX_AT1: AT/ATX Power Mode Setting PIN NO.
- Page 8 USB Power SW: USB Power Setting USB Power SW DESCRIPTION Power is provided in S3/S4 sleep +5V DUAL state (default) Power is not provided in S3/S4 sleep state Use the USB Power SW BIOS options to configure whether to provide power to the corresponding USB connector(s) when the system is in S3/S4 sleep state.
- Page 9 CHASSIS1: Chassis Intrusion Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3VSB CHASSIS_OPEN DIO1 : Digital Input/Output Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION Output 5 Output 4 Output 3 Output 2 Output 1 Output 0 Input 5 Input 4 Input 3 Input 2 Input 1 Input 0...
- Page 10 JEC1: Flash EC ROM Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION FSCE# FMISO EC_DET_FLASH FSCK FMOSI F_PANEL1: Front Panel Connector DESCRIPTION DESCRIPTION PWR_LED+ BEEP_PWR SPKR PWR_LED- PWR_BTN+ PC_BEEP PWR_BTN- HDD_LED+ Reset+ RESET HDD_LED- Reset- I2C1: I C Connector PIN NO. DESCRIPTION PIN NO.
- Page 11 COM1, COM2: RS-232 Serial Port Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION COM3, COM4: RS-422/428 Serial Port Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION RXD422- TXD422+/TXD485+ RXD422+ TXD422-/TXD485- S_ATA3, S_ATA4, S_ATA5, S_ATA6: SATA 6Gb/s Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION SATA_RX‐...
- Page 12 JUSB3, JUSB4, JUSB5: Internal USB 2.0 Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB_DATA- USB_DATA+ USB_DATA+ USB_DATA- USB1: Internal USB 3.2 Gen 1 Connector (Type-A) PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB3_RX+ USB_DATA- USB_DATA+ USB3_TX- USB3_TX+ USB3_RX- JUSB3-1: Internal USB 3.2 Gen 1 Connector PIN NO.
- Page 13 Module Key Module Key Module Key Module Key Module Key Module Key Module Key Module Key PCIE_TXP1 PCIE_TXN1 PCIE_RXP1 PCIE_RXN1 PCIE_CLKP0 PCIE_CLKN0 PLT_RST CLKREQ0# Pull up +3.3V PCIE_WAKE Pull up +3.3V M2_DAT PCIE_TXP2 M2_CLK PCIE_TXN2 PCIE_RXP2 M2_RST PCIE_RXN2 CLKREQ0# PCIE_WAKE PCIE_CLKP1 +3.3V PCIE_CLKN1...
- Page 14 M2_M1: M.2 M-key Slot PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3V +3.3V PCIE_RXN3 PCIE_RXP3 DAS/DSS# PCIE_TXN3 +3.3V PCIE_TXP3 +3.3V +3.3V PCIE_RXN2 +3.3V PCIE_RXP2 PCIE_TXN2 PCIE_TXP2 PCIE_RXN1 PCIE_RXP1 PCIE_TXN1 PCIE_TXP1 DEVSLP PCIE_RXN0 PCIE_RXP0 PCIE_TXN0 PCIE_TXP0 PERST# CLKREQ# REFCLKN PEWAKE REFCLKP Module Key Module Key Module Key Module Key...
- Page 15 Module Key Module Key SUSCLK PEDET +3.3V +3.3V +3.3V M2_B1: M.2 B-key Slot PIN NO. DESCRIPTION PIN NO. DESCRIPTION CONFIG_3 +3.3V +3.3V USB+ USB- Module Key Module Key Module Key Module Key Module Key Module Key Module Key Module Key CONFIG_0 PCH_WAKE_N PCIE_RXN1...
- Page 16 CLKREQ0# PCH_WAKE_N PCIE_CLKN0 PCIE_CLKP0 M2_RST M2BCONF +3.3V +3.3V +3.3V SIM1: SIM Card Slot PIN NO. DESCRIPTION PIN NO. DESCRIPTION SIM_VCC SIM_RST SIM_CLOCK SIM_IO...
- Page 17 LAN1, LAN2: External 2.5GbE RJ-45 Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION MDIA3- MDIA1+ MDIA3+ MDIA2+ MDIA2- MDIA0- MDIA1- MDIA0+ HDMI1: External HDMI Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION HDMI_DATA2 HDMI_CLK# HDMI_DATA2# HDMI_DATA1 HDMI_SCL HDMI_DATA1# HDMI_SDA HDMI_DATA0 HDMI_DATA0# HDMI_HPD HDMI_CLK CN1, CN2: External USB 3.2 Gen 1 Connectors (Type-A) PIN NO.
- Page 18 CON1: External USB 3.2 Gen 2 Connector (Type-C) PIN NO. DESCRIPTION PIN NO. DESCRIPTION TX1+ RX1+ TX1- RX1- VBUS VBUS SBU2 SBU1 VCONN VBUS VBUS RX2- TX2- RX2+ TX2+...
- Page 19 Board Layout: Jumper and Connector Locations (Unit: mm)
