SmartNode 4400 Series Getting Started Guide

Introduction

This section provides pin-out information for the ports of the SmartNode.

Console port

Configuration settings: Asynchronous data rate of 9600 bps, 2 bits, no parity, 1 stop bit, no flow control
Note

Ethernet 10Base-T and 100Base-T port

Note
Introduction
RJ-45 Jack
1
2
3
4
5
6
7
8

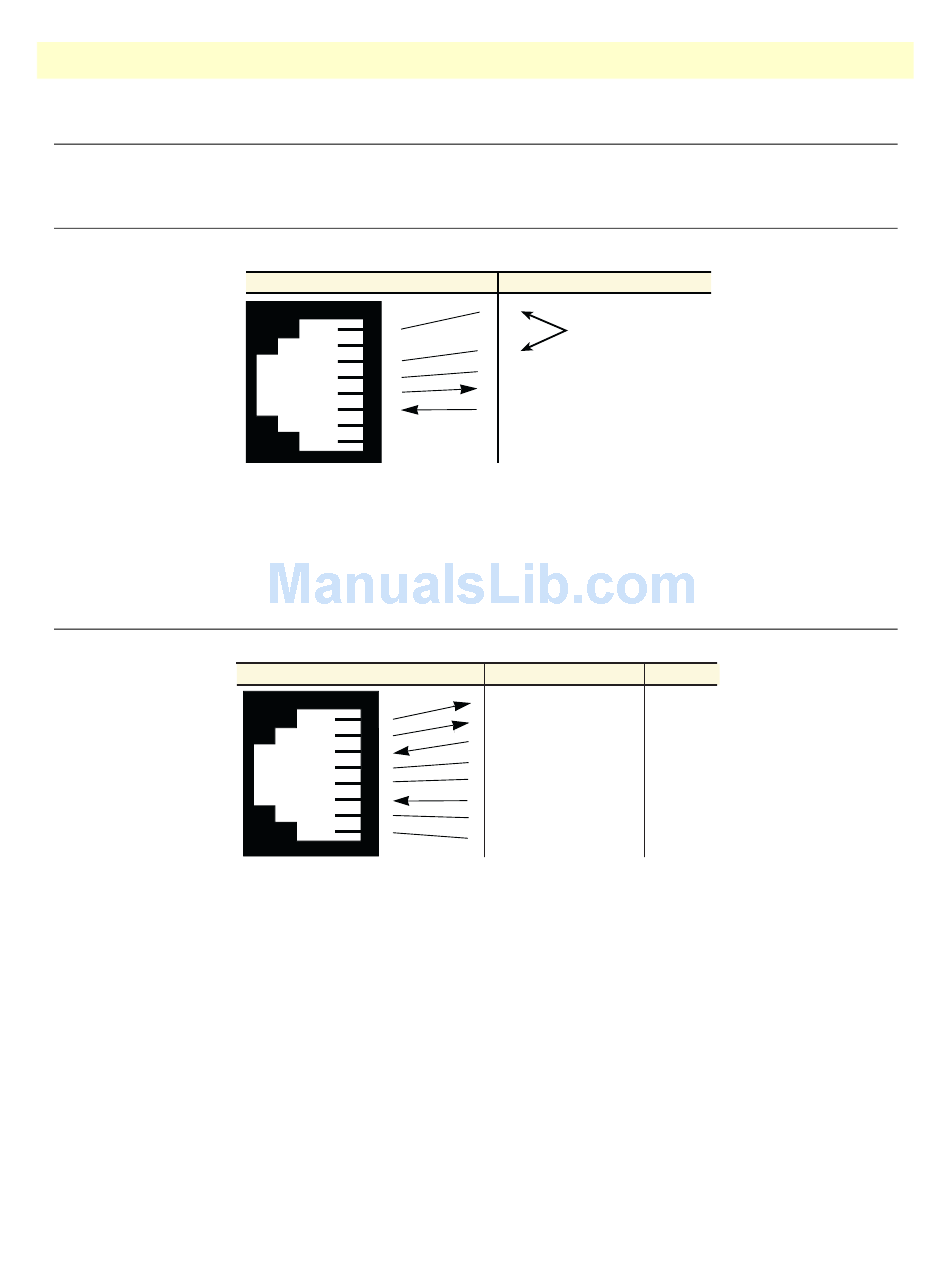

Figure 19. EIA-561 (RJ-45 8-pin) port
Pins not listed are not used.
RJ-45 Jack
1
2
3
4
5
6
7
8
Figure 20. Model SN4400 Ethernet port
Pins not listed are not used.
DB-9 Signal Name
6 DSR
1 CD DSR & DTR are internally
wired together
4 DTR
5 SG
2 RD (driven)
3 TD (received)
8 CTS
7 RTS
Signal Name
1 (TX+) Transmit Data +
2 (TX-) Transmit Data -
3 (RX+) Receive Data +
4
5
6 (RX-) Receive Data -
7
8
C • Port pin-outs
Direction
Output
Output
Input
Input
56
