SmartNode 4400
IpChannel Bank
Quick Start Guide
Important
This is a Class A device and is intended for use in a light industrial environment. It is not intended nor approved for use in an industrial
or residential environment.
Sales Office:
+1 (301) 975-1000
Technical Support:
+1 (301) 975-1007
E-mail: support@patton.com
WWW: www.patton.com
Part Number: 07MSN4400-QS, Rev. E
Revised: February 9, 2012
Advertisement
Table of Contents
Related Manuals for Patton electronics SmartNode 07MSN4400-QS
Summary of Contents for Patton electronics SmartNode 07MSN4400-QS
-
Page 1: Quick Start Guide

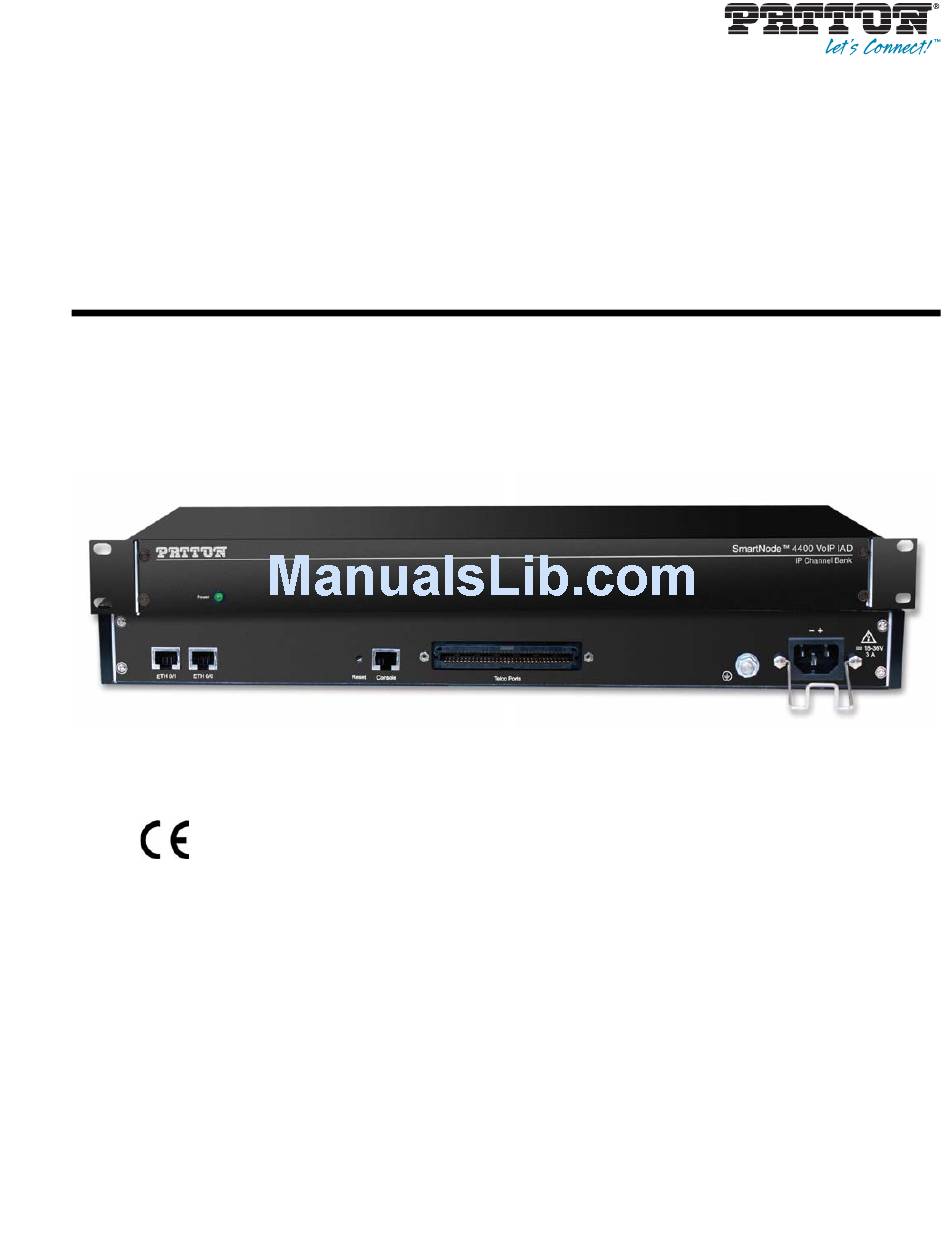

For Quick For Quick Start Installation Start Installation SmartNode 4400 IpChannel Bank Quick Start Guide Important This is a Class A device and is intended for use in a light industrial environment. It is not intended nor approved for use in an industrial or residential environment. - Page 2 Patton Electronics Company, Inc. 7622 Rickenbacker Drive Gaithersburg, MD 20879 USA Tel: +1 (301) 975-1000 Fax: +1 (301) 869-9293 Support: +1 (301) 975-1007 Web: E-mail: Trademark Statement The terms SmartNode, SmartWare, and SmartView are trademarks of Patton Electronics Company. All other trademarks presented in this document are the prop- erty of their respective owners.
-
Page 3: Safety When Working With Electricity
SmartNode 4400 Quick Start Guide Safety when working with electricity • Do not open the device when the power cord is connected. For systems without a power switch and without an external power adapter, line volt- ages are present within the device when the power cord is connected. WARNING •... -
Page 4: Attaching The Cable Retainer Clip
SmartNode 4400 Quick Start Guide Introduction This Quick Start Guide leads you through the basic steps to set up a new SmartNode and to download a con- figuration. Please note that this guide does not replace the detailed SmartWare Software Configuration Guide and the SmartNode 4400 User Manual available online at www.patton.com/manuals/SN4400.pdf. - Page 5 SmartNode 4400 Quick Start Guide Connecting a PC, logging in, and configuring the LAN IP address Connecting power and configuring the default IP address Connect the SmartNode to the mains power supply using the included power supply and cable. When the RUN LED stops blinking and remains lit, the SmartNode is ready.
-
Page 6: Changing The Ip Address
SmartNode 4400 Quick Start Guide 3. Type administrator as the login prompt and press the Enter key after the password prompt (do not type anything for the password). A prompt will appear consisting of the IP address and > character. login:administrator password: 172.16.40.1>... - Page 7 SmartNode 4400 Quick Start Guide Connecting the SmartNode to the LAN The 4400 Ethernet ports are auto MDX, therefore a straight-through wired cable can be used for host and switch connections (see figure PC or workstation or Telnet Figure 3. Connecting the SmartNode to the network You can check the connection with the ping command to another host on the local LAN.
-
Page 8: Additional Information
SmartNode 4400 Quick Start Guide Downloading a configuration example, adapting it to your network, and loading it onto the SmartNode Patton provides a collection of configuration templates on the support page at www.patton.com/smartnode— one of which may be similar enough to your application that you can use it to speed up configuring the Smart- Node. -
Page 9: Safety Compliance
SmartNode 4400 Quick Start Guide Compliance EMC compliance: • FCC Part 15, Class A • EN55022, Class A • EN55024 • EN-61000-3-2 Harmonics • EN-61000-3-3 Flicker • EN-61000-4-2 ESD • EN-61000-4-3 Radiated Immunity • EN-61000-4-4 EFT • EN-61000-4-5 Surge • EN-61000-4-6 Low Frequency Common Immunity •... - Page 10 SmartNode 4400 Quick Start Guide NOTES NOTES...
- Page 11 SmartNode 4400 Quick Start Guide NOTES NOTES...
- Page 12 SmartNode 4400 Quick Start Guide NOTES NOTES...
