Connect the PC's Ethernet port to LAN (ETH 0/1) port of the SmartNode 4950. The SmartNode 4950
1.
Series is equipped with Auto-MDX Ethernet ports, so you can use straight-through or cross-over Ethernet
cables for host or hub/switch connections. (See
The SmartNode comes with a built-in DHCP server to simplify configuration. Therefore, to automatically
2.
configure the PC for IP connectivity to the SmartNode, configure the laptop PC for DHCP. The SmartNode
will provide the PC with an IP address. Note that only Full Duplex operation is supported. Use auto nego-
tiation for best results.
3. Check the connection to the SmartNode by executing the ping command from the PC command window
as follows:
ping 192.168.1.1

3.0 Configuring the desired IP address

3.1 Factory-default IP settings

The factory default configuration for the Ethernet interface IP addresses and netmasks are listed in
Both Ethernet interfaces are activated upon power-up. LAN interface ETH 0/1 (LAN) provides a default DHCP
server. The WAN interface uses DHCP client to get the IP address and netmask automatically from the
service provider.
WAN interface Ethernet 0 (ETH 0/0)
LAN interface Ethernet 1 (ETH 0/1)
DHCP server address range (LAN)
If these addresses match with those of your network, go to section
network" on page 5. Otherwise, continue with the following sections to change the addresses and
network masks.
4
Ethernet
Laptop PC

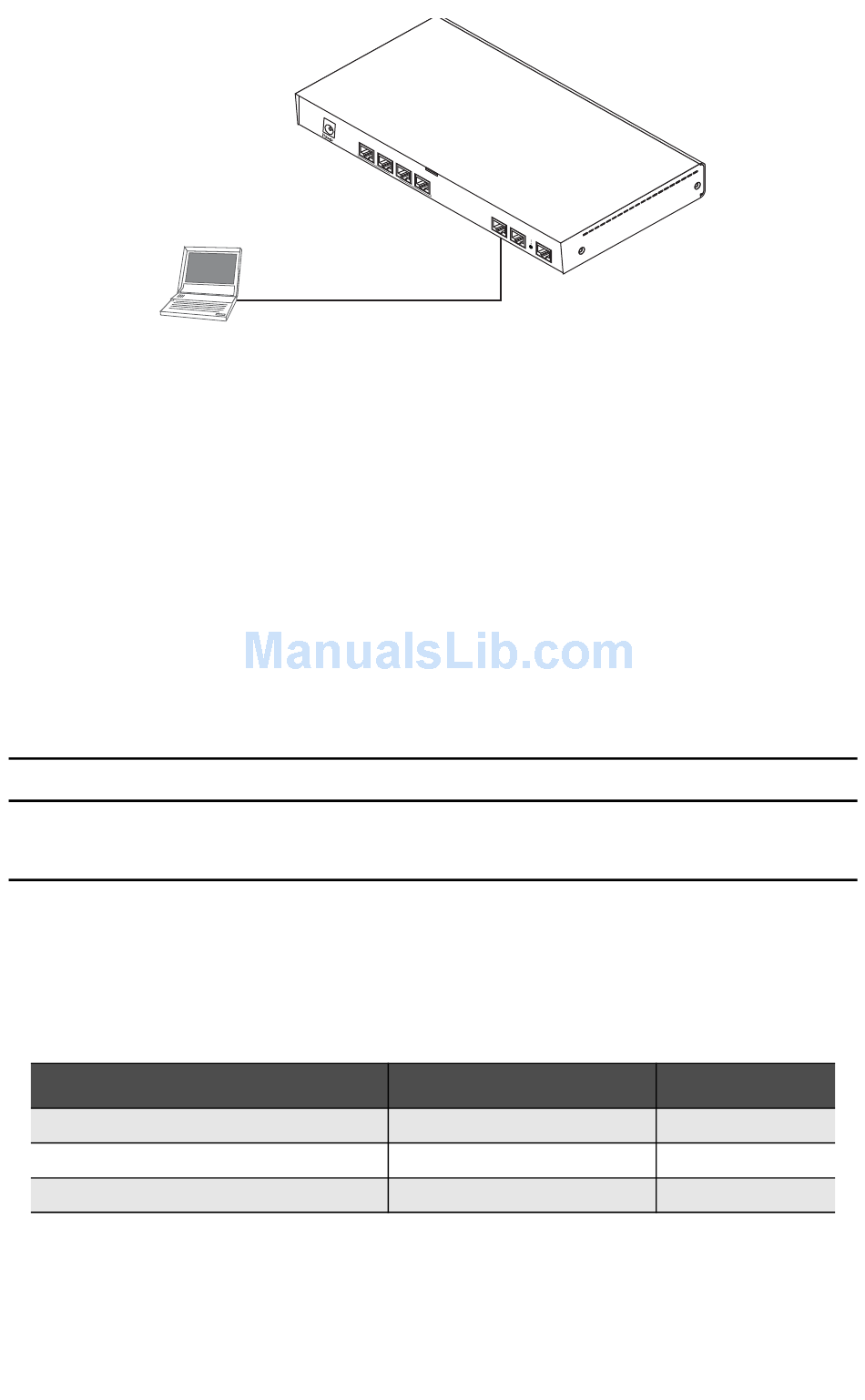

Figure 1.
Factory default IP address and network mask configuration
Table 1.
Item
0 /3
0 /2
0 /1
T 1
0 /0
/E
1
E T
H
0 /1
E T
H
0 /0
LAN (connect to ETH 0/1)
Connecting to the PC
figure 1.)
IP Addresss
DHCP
192.168.1.1
192.168.1.10-192.168.1.99
4.0 "Connecting the SmartNode to the
C o
n s
o le
R S
-2
3 2
Network Mask
DHCP
255.255.255.0
255.255.255.0
SmartNode 4950 Series Quick Start Guide
table 1.
