Page 1: Quick Start Guide

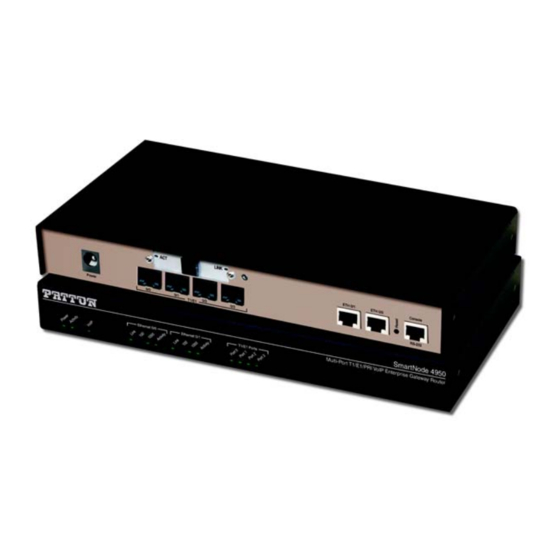

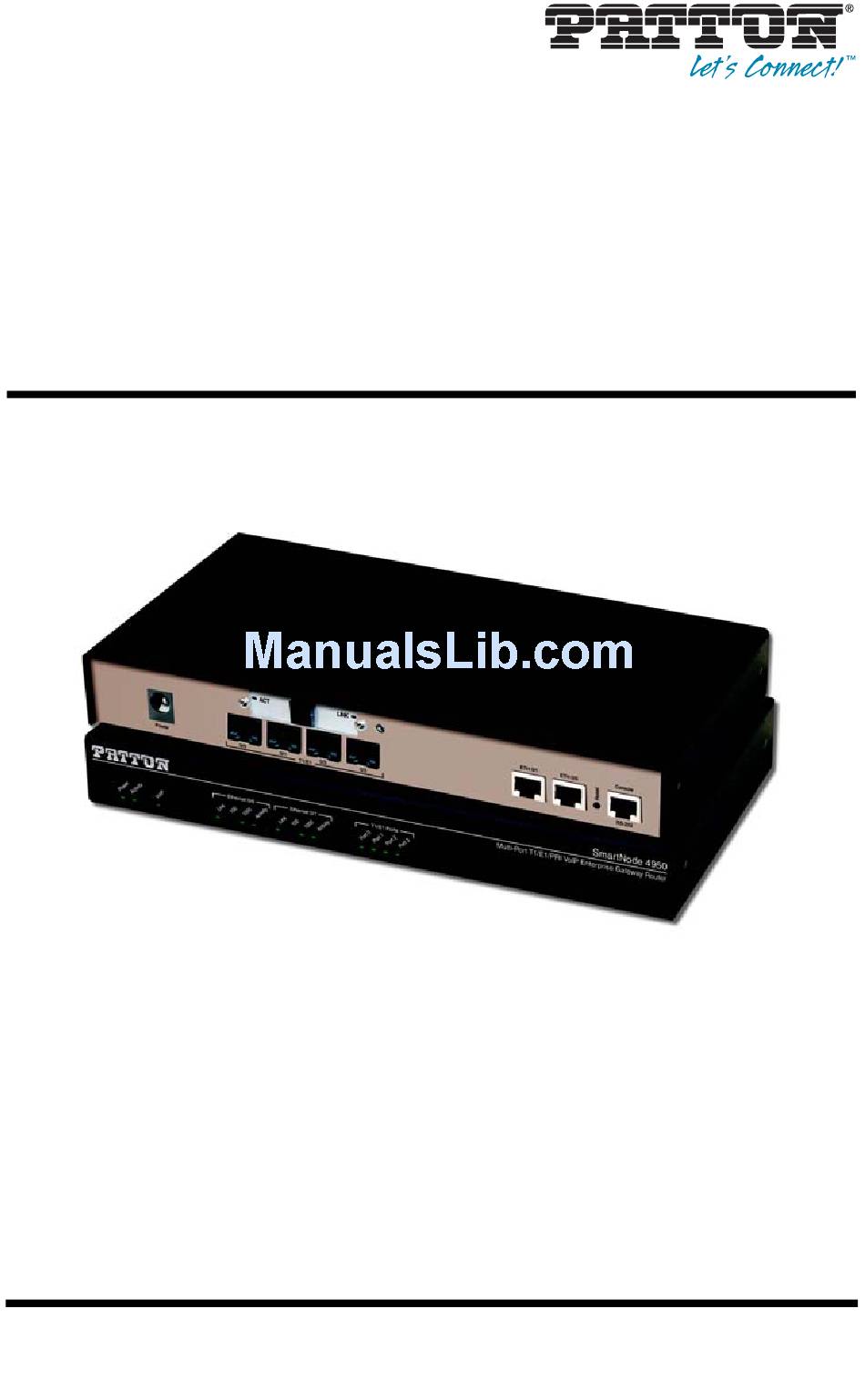

SmartNode 4950-NCE Series Multi-Port T1/E1/PRI VoIP Enterprise Gateway Router Quick Start Guide Part Number: 07MSN4950-NCE-QS, Rev. B Revised: February 7, 2012 Sales Office: +1 (301) 975-1000 Technical Support: +1 (301) 975-1007 E-mail: support@patton.com WWW: www.patton.com... - Page 2 WEEE collection system in your country for recycling. This device contains no user serviceable parts. This device can only be repaired by qualified service personnel. WARNING SmartNode 4950-NCE Series Quick Start Guide...
-
Page 3: Power Up The Smartnode
2.0 Connecting the SmartNode to your laptop PC The interconnecting cables shall be acceptable for external use and shall be rated for the proper application with respect to voltage, current, anticipated temperature, flam- mability, and mechanical serviceability. CAUTION SmartNode 4950-NCE Series Quick Start Guide... -
Page 4: Configuring The Desired Ip Address
Laptop PC Connect the PC’s Ethernet port to LAN (ETH 0/1) port of the SmartNode 4950-NCE. The SmartNode 4950- NCE Series is equipped with Auto-MDX Ethernet ports, so you can use straight-through or cross-over Ethernet cables for host or hub/switch connections. (See The SmartNode comes with a built-in DHCP server to simplify configuration. -
Page 5: Connecting The Smartnode To The Network
The interconnecting cables shall be acceptable for external use and shall be rated for the proper application with respect to voltage, current, anticipated temperature, flam- mability, and mechanical serviceability. CAUTION SmartNode 4950-NCE Series Quick Start Guide : Link down on interface WAN. : Link up on interface WAN. -
Page 6: Loading The Configuration (Optional)
In general, the SmartNode will connect to the network via the WAN (ETH 0/0) port. This enables the SmartNode to offer routing services to the PC hosts on LAN (ETH 0/1) port. The SmartNode 4950-NCE Series provides an auto-MDX feature for both Ethernet ports, so you can use a straight-through or cross-over cable to connect to a... -
Page 7: Additional Information
For detailed information about configuring and operating guidance, set up procedures, and troubleshooting, refer to the SN4950 NCE User Manual available online at and the SmartWare Software Configuration Guide available online at www.patton.com/smartnode. SmartNode 4950-NCE Series Quick Start Guide www.patton.com/manuals/SN4950-NCE.pdf... -
Page 8: Customer And Technical Support
Warranty, Trademark, & Compliance Information For warranty, trademark and compliance information, refer to the SmartNode 4950 NCE User Manual located online at www.patton.com/manuals. with a VoIP SIP client or +41 (0)31 985 25 26 (Switzerland) SmartNode 4950-NCE Series Quick Start Guide...
