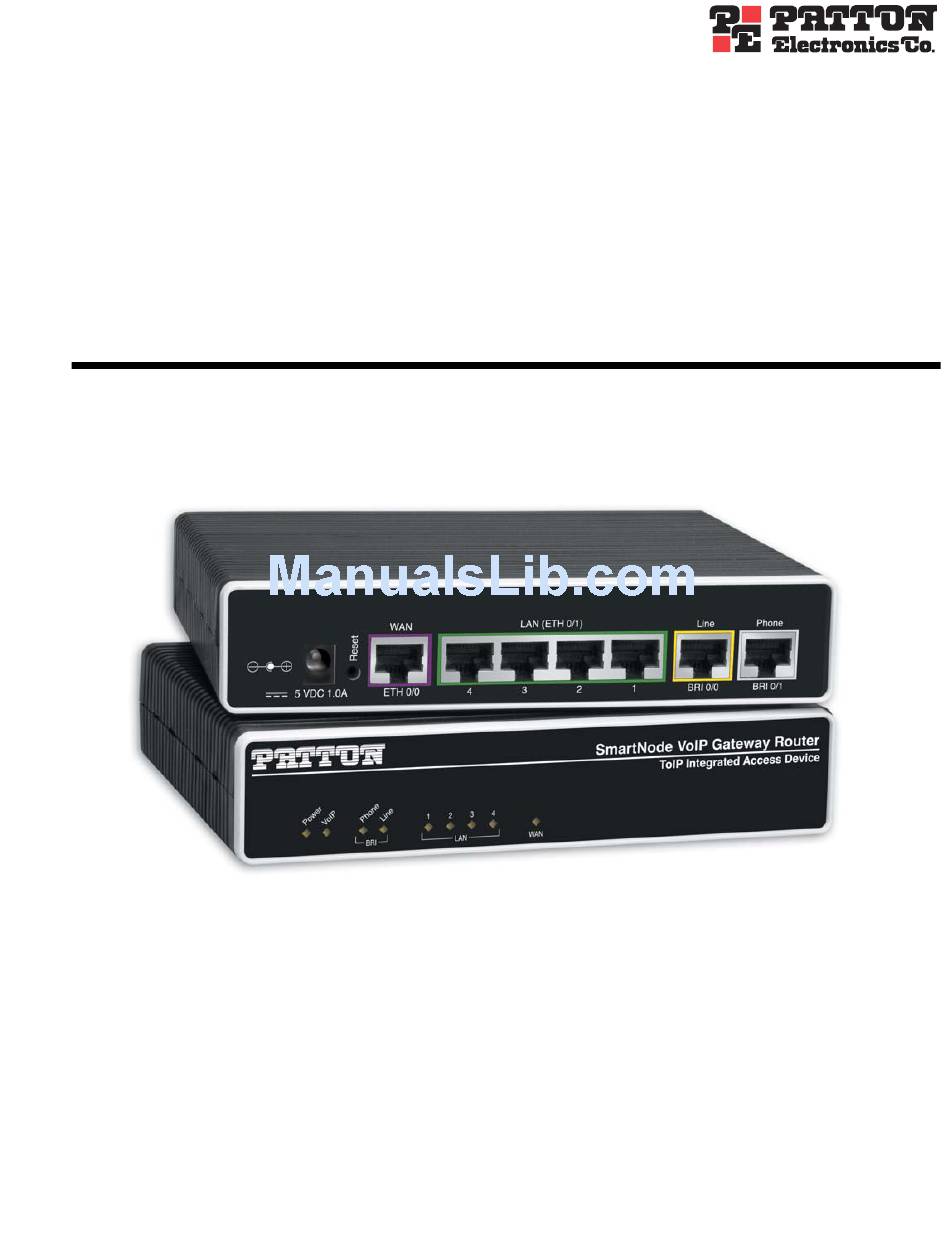

SmartNode 4552 & 4562
ISDN SoHo VoIP Gateway Router
Getting Started Guide
Sales Office:
+1 (301) 975-1000
Technical Support:
+1 (301) 975-1007
E-mail:
support@patton.com
WWW:
www.patton.com
Document Number: 13216U1-001 Rev. E
Part Number: 07MD4552-GS
Revised: October 22, 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartNode 4552 and is the answer not in the manual?

Questions and answers

Related Manuals for Patton electronics SmartNode 4552

Summary of Contents for Patton electronics SmartNode 4552

  • Page 1 For Quick For Quick SmartNode 4552 & 4562 ISDN SoHo VoIP Gateway Router Getting Started Guide Sales Office: +1 (301) 975-1000 Technical Support: +1 (301) 975-1007 E-mail: support@patton.com WWW: www.patton.com Document Number: 13216U1-001 Rev. E Part Number: 07MD4552-GS Revised: October 22, 2008...
  • Page 2 Important Information To use virtual private network (VPN) and/or AES/DES/3DES encryption capabilities with the SmartNode 4552 & 4562, you may need to purchase additional licenses, hardware, software, network connection, and/or service. Contact sales@patton.com or +1 (301) 975-1000 for assistance.

  • Page 3: Summary Table Of Contents

    22 Initial configuration ............................29 Contacting Patton for assistance ........................37 Compliance information ..........................40 Specifications ..............................42 Cabling ................................. 47 Port pin-outs ..............................50 SmartNode 4552 & 4562 factory configuration ................... 53 End user license agreement ........................... 63...

  • Page 4: Table Of Contents

    Typographical conventions used in this document....................12 General conventions ............................12 General information............................13 SmartNode 4552 & 4562 overview ........................14 SmartNode 4552 & 4562 rear panel .......................15 SmartNode 4552 & 4562 front panel ......................16 Applications overview............................ 19 Introduction ................................20 Application—Multi-service ISDN Internet telephony IAD ...................20...
  • Page 5 SmartNode 4552 & 4562 Getting Started Guide Table of Contents Set your PC to DHCP............................30 Connect the PC to the SmartNode LAN Port .......................32 Open the configuration interface ........................32 Get Started ................................33 Accessing the Internet .............................35 Connecting a PC and logging in ........................35...
  • Page 6 SmartNode 4552 & 4562 Getting Started Guide Table of Contents ISDN BRI ................................49 Port pin-outs ..............................50 Introduction ................................51 Ethernet ................................51 ISDN BRI 0/1 Phone (NT/Net) port........................51 ISDN BRI 0/0 Line (TE/Usr) port........................52 SmartNode 4552 & 4562 factory configuration ................... 53 Introduction ................................54...

  • Page 7: List Of Figures

    SmartNode 4552 & 4562 front panel ........

  • Page 8: List Of Tables

    SmartNode 4552 & 4562 LED definitions ........

  • Page 9: About This Guide

    About this guide This guide describes the SmartNode 4552 & 4562 hardware, installation and basic configuration. For detailed software configuration information refer to the SmartWare Software Configuration Guide and the available Con- figuration Notes. Audience This guide is intended for the following users: •...

  • Page 10: Precautions

    SmartNode 4552 & 4562 Getting Started Guide About this guide Precautions Notes, cautions, and warnings, which have the following meanings, are used throughout this guide to help you become aware of potential problems. Warnings are intended to prevent safety hazards that could result in per- sonal injury.

  • Page 11: General Observations

    SmartNode 4552 & 4562 Getting Started Guide About this guide Do not work on the system or connect or disconnect cables during periods of lightning activity. Before opening the chassis, disconnect the telephone network cables to avoid contact with telephone line voltages.

  • Page 12: Typographical Conventions Used In This Document

    SmartNode 4552 & 4562 Getting Started Guide About this guide Typographical conventions used in this document This section describes the typographical conventions and terms used in this guide. General conventions The procedures described in this manual use the following text conventions: Table 1.

  • Page 13: General Information

    Chapter 1 General information Chapter contents SmartNode 4552 & 4562 overview ........................14 SmartNode 4552 & 4562 rear panel .......................15 SmartNode 4552 & 4562 front panel ......................16...

  • Page 14: Smartnode 4552 & 4562 Overview

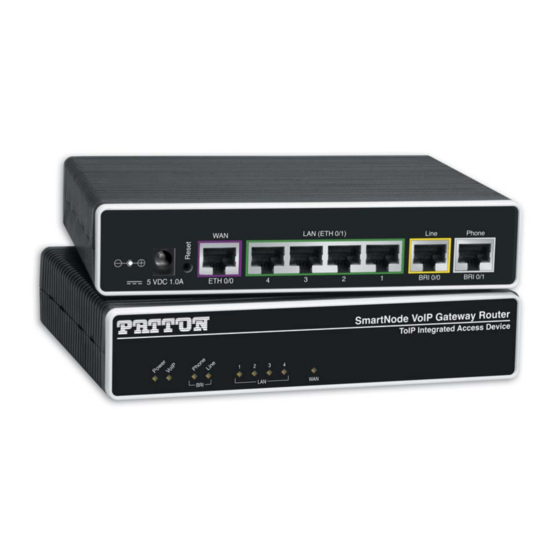

    Figure 1. SmartNode 4552 & 4562 The SmartNode 4552 & 4562 is equipped with a 10/100Base-T Ethernet WAN port and an integrated 4-port 10/100Base-T Ethernet switch. The SmartNode 4552 & 4562 Gateway-Router performs the following major functions: •...

  • Page 15: Smartnode 4552 & 4562 Rear Panel

    SmartNode 4552 & 4562 Getting Started Guide 1 • General information SmartNode 4552 & 4562 rear panel The SmartNode 4552 & 4562 is a compact VoIP Gateway Router that supports two VoIP calls on two ISDN BRI ports (see figure 2).

  • Page 16: Smartnode 4552 & 4562 Front Panel

    1 • General information Figure 3. SmartNode 4552 & 4562 front panel SmartNode 4552 & 4562 front panel Figure 3 shows SmartNode 4552 & 4562 LEDs, the LED definitions are listed in table Table 3. SmartNode 4552 & 4562 LED definitions Description Note If an error occurs, all LEDs will flash once per second.
  • Page 17 SmartNode 4552 & 4562 Getting Started Guide 1 • General information SmartNode 4552 & 4562 overview...
  • Page 18 SmartNode 4552 & 4562 Getting Started Guide 1 • General information SmartNode 4552 & 4562 overview...

  • Page 19: Applications Overview

    Chapter 2 Applications overview Chapter contents Introduction ................................20 Application—Multi-service ISDN Internet telephony IAD ...................20 Application—ISDN home or telecommuter connectivity ..................21...

  • Page 20: Introduction

    Application—Multi-service ISDN Internet telephony IAD The SmartNode 4552 & 4562 with two ISDN BRI ports can be used to make and receive calls to and from the public ISDN network and Internet Telephony services on any ISDN Terminal (Phone or PBX) (see figure...

  • Page 21: Application-Isdn Home Or Telecommuter Connectivity

    SmartNode 4552 & 4562 Getting Started Guide 2 • Applications overview Application—ISDN home or telecommuter connectivity For a SoHo/telecommuter, the SmartNode 4552 & 4562 can provide an off-premise extension to the corpo- rate network (see figure 5). Along with the access to the corporate ISDN PBX, the SmartNode provides Inter- net access and VPN connectivity to the main office.

  • Page 22: Smartnode Installation

    Chapter 3 SmartNode installation Chapter contents Planning the installation ............................23 Site log ................................23 Network information ............................23 Network Diagram ............................23 IP related information .............................24 Software tools ..............................24 Power source ..............................24 Location and mounting requirements ......................24 Installing the gateway router..........................24 Placing the SmartNode ...........................24 Installing cables ...............................25...

  • Page 23: Planning The Installation

    SmartNode 4552 & 4562 Getting Started Guide 3 • SmartNode installation Planning the installation The mains outlet that is utilized to power the equipment must be within 10 feet (3 meters) of the device and shall be easily accessible. Before installing the gateway router device, the following tasks should be completed: •...

  • Page 24: Ip Related Information

    SmartNode 4552 & 4562 Getting Started Guide 3 • SmartNode installation IP related information Before you can set up the basic IP connectivity for your SmartNode 4552 & 4562 you should have the follow- ing information: • IP addresses used for Ethernet LAN and WAN ports •...

  • Page 25: Installing Cables

    Connecting the 10/100Base-T Ethernet LAN and WAN cables The SmartNode 4552 & 4562 has automatic MDX (auto-crossover) detection and configuration on all Ether- net ports. Any of the ports can be connected to a host or hub/switch with a straight-through wired cable.

  • Page 26: Connecting The Power Supply

    SmartNode 4552 & 4562 Getting Started Guide 3 • SmartNode installation Connecting the power supply Do the following to connect the power supply to the Model 4552: Note Do not connect the power cord to the AC power outlet at this time.

  • Page 27: External S-Bus Power Supply

    SmartNode 4552 & 4562 Getting Started Guide 3 • SmartNode installation External S-Bus power supply Many ISDN telephone handsets require that 40-VDC power be supplied via the S-Bus connection. In other words, they have no separate or built-in power supply. In general, point-to-multipoint ISDN BRI network ter- minations supply line power to the S-Bus.

  • Page 28: Model 4552 External 40-Vdc Power Supply

    SmartNode 4552 & 4562 Getting Started Guide 3 • SmartNode installation Figure 7. Model 4552 external 40-VDC power supply Congratulations, you have finished installing the SmartNode Gateway Router! Now go to chapter 4, “Initial configuration” on page 29. Installing the gateway router...
  • Page 29 Chapter 4 Initial configuration Chapter contents Introduction ................................30 Power up the SmartNode ............................30 Set your PC to DHCP............................30 Connect the PC to the SmartNode LAN Port .......................32 Open the configuration interface ........................32 Get Started ................................33 Accessing the Internet .............................35 Connecting a PC and logging in ........................35...

  • Page 30: Initial Configuration

    SmartNode 4552 & 4562 Getting Started Guide 4 • Initial configuration Introduction This chapter leads you through the basic steps to set up a new SmartNode: • Powering up the SmartNode (section “Power up the SmartNode”) • Configuring your PC to use DHCP (section “Set your PC to...

  • Page 31: Displaying The Network Connections Window

    SmartNode 4552 & 4562 Getting Started Guide 4 • Initial configuration Figure 8. Displaying the Network Connections window Figure 9. Displaying the Internet Properties (TCP/IP) Properties window 2. Double-click on Local Area Connection and click on Properties to open the Internet Protocol (TCP/IP) Properties window (see figure...

  • Page 32: Connect The Pc To The Smartnode Lan Port

    SmartNode 4552 & 4562 Getting Started Guide 4 • Initial configuration Connect the PC to the SmartNode LAN Port Now use the included Ethernet cable to connect the configured PC to the SmartNode. The factory default configuration of the SmartNode defines Ethernet port 0/1 as the LAN port.

  • Page 33: Get Started

    SmartNode 4552 & 4562 Getting Started Guide 4 • Initial configuration Figure 12. Login window 3. Click OK. Get Started After successful login you get to the SmartNode home page, and you can configure your device. You will be presented the following home page, which contains buttons to store the current configuration state, reload the device and restore to factory defaults.

  • Page 34: Main Gui Elements

    SmartNode 4552 & 4562 Getting Started Guide 4 • Initial configuration The GUI consists of the following main elements (see figure 13): • The “Navigation Bar” on the left edge presents you with a menu listing giving access to the various configu- ration and status pages of the SmartNode.

  • Page 35: Accessing The Internet

    SmartNode 4552 & 4562 Getting Started Guide 4 • Initial configuration Accessing the Internet Connect an Ethernet cable from the WAN port on the SmartNode to the upstream WAN Internet connection. Begin the configuration for Internet access with the WAN page.
  • Page 36 SmartNode 4552 & 4562 Getting Started Guide 4 • Initial configuration configuration is required, only the LAN and WAN Ethernet connections should be made to access the Internet immediately. • PPPoE. The SmartNode establishes the connection with the Internet using PPPoE. This is most commonly used when the SmartNode is connected to a DSL bridge, or a DSL router that is configured in bridge mode...

  • Page 37: Contacting Patton For Assistance

    Chapter 5 Contacting Patton for assistance Chapter contents Introduction ................................38 Contact information..............................38 Patton support headquarters in the USA ......................38 Alternate Patton support for Europe, Middle East, and Africa (EMEA) ............38 Warranty Service and Returned Merchandise Authorizations (RMAs)..............38 Warranty coverage ............................38 Out-of-warranty service ..........................39 Returns for credit...

  • Page 38: Introduction

    SmartNode 4552 & 4562 Getting Started Guide 5 • Contacting Patton for assistance Introduction This chapter contains the following information: • “Contact information”—describes how to contact Patton technical support for assistance. • “Warranty Service and Returned Merchandise Authorizations (RMAs)”—contains information about the RAS warranty and obtaining a return merchandise authorization (RMA).

  • Page 39: Out-Of-Warranty Service

    SmartNode 4552 & 4562 Getting Started Guide 5 • Contacting Patton for assistance Out-of-warranty service Patton services what we sell, no matter how you acquired it, including malfunctioning products that are no longer under warranty. Our products have a flat fee for repairs. Units damaged by lightning or other catastro- phes may require replacement.

  • Page 40: Compliance Information

    Appendix A Compliance information Chapter contents Radio and TV interference ............................41 CE notice ................................41 ISDN compliance..............................41...

  • Page 41: Radio And Tv Interference

    SmartNode 4552 & 4562 Getting Started Guide A • Compliance information Radio and TV interference The SmartNode router generates and uses radio frequency energy, and if not installed and used properly-that is, in strict accordance with the manufacturer’s instructions-may cause interference to radio and television reception.
  • Page 42 Appendix B Specifications Chapter contents DSP..................................43 Voice connectivity ..............................43 Data connectivity ..............................43 Voice processing (signalling dependent).........................43 Fax and modem support............................44 Voice signalling ..............................44 Voice routing—session router..........................44 IP services ................................44 Management .................................45 Operating environment ............................45 Operating temperature ............................45 Operating humidity ............................45 System ...................................45 Compliance...

  • Page 43: B Specifications

    SmartNode 4552 & 4562 Getting Started Guide B • Specifications Note Refer to the software feature matrix for the most up-to-date specifications. One 2-channel DSP Voice connectivity 2 ISDN BRI So (S/T), 4-wire RJ45 One Usr (TE) port labeled Line, one Net (NT) port labeled Phone Point-to-point, point-to-multipoint configurable...

  • Page 44: Fax And Modem Support

    SmartNode 4552 & 4562 Getting Started Guide B • Specifications Fax and modem support Automatic fax and modem detection Codec fallback for modem-bypass T.38 Fax-Relay (Gr. 3 Fax, 9.6 k, 14.4 k) G.711 Fax-Bypass Voice signalling SIPv2 H.323v4 SIP call transfer, redirect...

  • Page 45: Management

    Manual Key; IKE optional AES/DES/3DES Encryption Note To use the IPSec VPN capabilities including AES/DES/3DES encryption with the SmartNode 4552 & 4562, you may need to purchase additional license keys. Note The SmartNode 4562 is loaded with the VPN license from the factory.

  • Page 46: Dimensions

    SmartNode 4552 & 4562 Getting Started Guide B • Specifications FCC Part 15 Class B TBR-3 (ETSI ISDN compliance) Dimensions 7.3W x 1.6H x 6.1D in. (18.5H x 4.1W x 15.5D cm) Weight and power dissipation table Table 6. SmartNode weight and maximum power specifications...

  • Page 47: Cabling

    Appendix C Cabling Chapter contents Introduction ................................48 Ethernet ................................48 ISDN BRI ................................49...

  • Page 48: Introduction

    SmartNode 4552 & 4562 Getting Started Guide C • Cabling Introduction This section provides information on the cables used to connect the SmartNode and the interface cards to the existing network infrastructure and to third party products. Ethernet Ethernet devices (10Base-T/100Base-T) are connected to the SmartNode over a cable with RJ-45 plugs. All Ethernet ports on the SN4552 &...

  • Page 49: Isdn Bri

    SmartNode 4552 & 4562 Getting Started Guide C • Cabling ISDN BRI The ISDN ports are connected to ISDN terminals (Phones, PBXs) or an ISDN NT using cables terminated with RJ-45 connectors. Use straight-though cables to connect to the S/T port of your NT or phones/PBX.
  • Page 50 Appendix D Port pin-outs Chapter contents Introduction ................................51 Ethernet ................................51 ISDN BRI 0/1 Phone (NT/Net) port........................51 ISDN BRI 0/0 Line (TE/Usr) port........................52...

  • Page 51: D Port Pin-Outs

    SmartNode 4552 & 4562 Getting Started Guide D • Port pin-outs Introduction This section provides pin-out information for the ports of the SmartNode. Ethernet Table 7. RJ-45 socket Signal Note Pins not listed are not used. ISDN BRI 0/1 Phone (NT/Net) port...

  • Page 52: Isdn Bri 0/0 Line (Te/Usr) Port

    SmartNode 4552 & 4562 Getting Started Guide D • Port pin-outs ISDN BRI 0/0 Line (TE/Usr) port The BRI Line port uses an 8-pin RJ-45 connector (the pinout is shown in table Table 9. RJ-45 socket Signal Note All pins between the Phone and Line ports are connected during power failure.

  • Page 53: Smartnode 4552 & 4562 Factory Configuration

    Appendix E SmartNode 4552 & 4562 factory configuration Chapter contents Introduction ................................54...

  • Page 54: Introduction

    SmartNode 4552 & 4562 Getting Started Guide E • SmartNode 4552 & 4562 factory configuration Introduction The factory configuration settings for SmartNode 4552 & 4562 are as follows: #----------------------------------------------------------------# # 4552 & 4562 # R3.xx BUILDxxxxx SIP # 2005-08-25T00:00:00 # Factory configuration file...
  • Page 55 SmartNode 4552 & 4562 Getting Started Guide E • SmartNode 4552 & 4562 factory configuration deny 1 tcp any any eq 23 deny 2 tcp any any eq 80 deny 3 udp any any eq 161 permit 4 ip any any...
  • Page 56 SmartNode 4552 & 4562 Getting Started Guide E • SmartNode 4552 & 4562 factory configuration profile call-progress-tone US_RB_TONE play 1 2000 440 -19 480 -19 pause 2 4000 profile call-progress-tone US_BUSY_TONE play 1 500 480 -24 620 -24 pause 2 500...
  • Page 57 SmartNode 4552 & 4562 Getting Started Guide E • SmartNode 4552 & 4562 factory configuration profile dhcp-server DHCPS_LAN network 192.168.1.0 255.255.255.0 include 1 192.168.1.10 192.168.1.19 lease 2 hours default-router 1 192.168.1.1 domain-name patton.com domain-name-server 1 192.168.1.1 context ip router interface IF_IP_WAN...
  • Page 58 SmartNode 4552 & 4562 Getting Started Guide E • SmartNode 4552 & 4562 factory configuration dial out authentication chap authentication pap bind interface IF_IP_WAN router context cs switch routing-table called-e164 RT_SPEED_DIAL route T dest-table RT_NR_BLOCKING MT_SPEED_DIAL routing-table called-e164 RT_NR_BLOCKING route default dest-table RT_CALL_ROUTING MT_SET_CNPN...
  • Page 59 SmartNode 4552 & 4562 Getting Started Guide E • SmartNode 4552 & 4562 factory configuration interface isdn IF_S0_01 route call dest-table RT_SPEED_DIAL use profile tone-set Europe isdn-date-time interface isdn IF_DEV0 interface sip IF_SIP_SERVICE bind gateway GW_SIP service default route call dest-table RT_INCOMING...
  • Page 60 SmartNode 4552 & 4562 Getting Started Guide E • SmartNode 4552 & 4562 factory configuration context cs switch no shutdown gateway sip GW_SIP bind interface IF_IP_WAN router service default gateway sip GW_SIP no shutdown port ethernet 0 0 bind interface IF_IP_WAN router...
  • Page 61 SmartNode 4552 & 4562 Getting Started Guide E • SmartNode 4552 & 4562 factory configuration port bri 0 0 clock auto encapsulation q921 q921 protocol pmp uni-side auto encapsulation q931 q931 protocol dss1 uni-side user encapsulation cc-isdn bind interface IF_S0_00 switch...
  • Page 62 SmartNode 4552 & 4562 Getting Started Guide E • SmartNode 4552 & 4562 factory configuration protocol dss1 uni-side net encapsulation cc-isdn bind interface IF_S0_01 switch port bri 0 1 no shutdown Introduction...

  • Page 63: F End User License Agreement

    Appendix F End user license agreement Chapter contents End User License Agreement ..........................64 1. Definitions ..............................64 2. Title ................................64 3. Term ................................64 4. Grant of License ............................64 5. Warranty ..............................64 6. Termination ..............................65 7. Other licenses .............................65...

  • Page 64: End User License Agreement

    SmartNode 4552 & 4562 Getting Started Guide F • End user license agreement End User License Agreement By opening this package, operating the Designated Equipment or downloading the Program(s) electronically, the End User agrees to the following conditions: 1. Definitions Effective Date shall mean the earliest date of purchase or download of a product containing the Patton Electronics Company Program(s) or the Program(s) themselves.

  • Page 65: Termination

    SmartNode 4552 & 4562 Getting Started Guide F • End user license agreement If the Program(s) are acquired by or on behalf of a unit or agency of the United States Government, the Gov- ernment agrees that such Program(s) are commercial computer software or computer software documentation and that, absent a written agreement to the contrary, the Government’s rights with respect to such Program(s) are...
