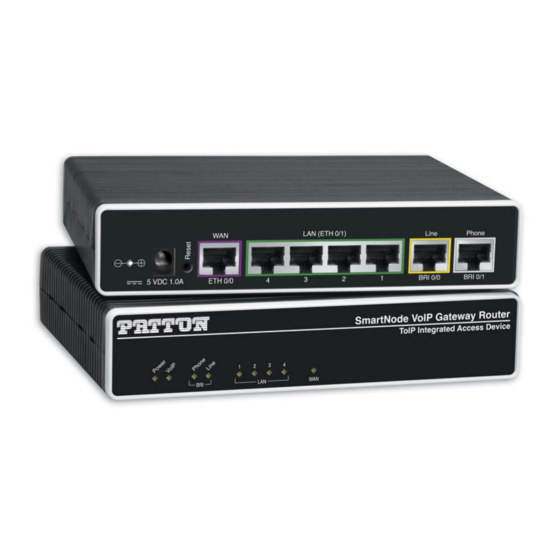

SmartNode 4552
ISDN SoHo VoIP Gateway Router
Quick Start Guide
Approval
This device is approved for connection to the public ISDN telecommunication network. over a BRI/So-ISDN interfaces.
Zulassung
Zugelassen fur die Anshaltung an da offentliche ISDN Telekommunikatinosnetz an BRI/So- ISDN Schnittstellen.
Approbation
Cet appareil est approuve pour la connexion au reseau ISDN public avec les interfaces BRI/So.
Approbacion
Este aparato esta aprobado para conexion a red publica ISDN sobre interfaz BRI/So.
Sales Office:
+1 (301) 975-1000
Technical Support:
+1 (301) 975-1007
E-mail:
support@patton.com
WWW:
www.patton.com
Document Number: 13216U7-001 Rev. B
Part Number: 07MSN4552-QS
Revised: February 25, 2005
Advertisement
Table of Contents
Related Manuals for Patton electronics SmartNode 4552
Summary of Contents for Patton electronics SmartNode 4552
- Page 1 SmartNode 4552 ISDN SoHo VoIP Gateway Router Quick Start Guide Approval This device is approved for connection to the public ISDN telecommunication network. over a BRI/So-ISDN interfaces. Zulassung Zugelassen fur die Anshaltung an da offentliche ISDN Telekommunikatinosnetz an BRI/So- ISDN Schnittstellen.
- Page 2 Electronics assumes no liability for errors that may appear in this document. Important Information To use virtual private network (VPN) and/or AES/DES/3DES encryption capabilities with the SmartNode 4552, you may need to purchase additional licenses, hardware, software, network connection, and/or service. Contact sales@patton.com or +1 (301) 975-1000 for assistance.
- Page 3 SmartNode™ SN4552 QUICK START GUIDE This Quick Start Guide leads you through the basic steps to set up a new SmartNode and to download a configuration. Please note that this guide does not replace the detailed Software Configuration Guide and the Getting Started Guide available on the CD-ROM and online at www.patton.com/voip.
- Page 4 SmartNode™ Connect a PC, login and configure the IP address Power Connection and Default IP Configuration First the SmartNode must be connected to the mains power supply using the included power supply. Wait until the ‘PWR' LED stops blinking and lights constantly. Now the SmartNode is ready. The factory default IP settings are as follows: LAN ports (green, ETH 0/1): IP Address: 192.168.1.1...
- Page 5 SmartNode™ After you have successfully logged in you are in the operator execution mode, indicated by '>' as command line prompt. With the commands enable and configure you enter the configuration mode. 172.16.40.1>enable 172.16.40.1#configure 172.16.40.1(cfg)# Changing the IP Address Select the context IP mode to configure an IP interface. 172.16.40.1(cfg)#context ip router 172.16.40.1(ctx-ip)[router]# Now you can set your IP address and network mask for the WAN IP interface eth0.
- Page 6 SmartNode™ You can check the connection with the ping command. For the example above ping 172.16.1.100 from a PC on the IP network. You may now start to configure the SmartNode from scratch using the CLI commands. For a detailed description of the CLI refer to the SmartWare software configuration guide (SCG) available on the CD-ROM and online at: www.patton.com/voip.
- Page 7 SmartNode™ EC Declaration of Conformity (German version see below) Product Description: SmartNode 1200 *) SmartNode 1400 *) SmartNode 2300 incl. Interface Cards IC-4BRV and IC-E1V SmartNode 2400 incl. Interface Cards IC-4BRV and IC-E1V The products described above in the form as delivered are in conformity with the provisions of the following European Directive: R&TTE 1999/5/EC Guideline of the European Parliament and the Committee for the Harmonisation of the Legal...
- Page 8 Patton -Inalp AG has been advised of, known, or should have known, the possibility of such damages. Patton, the Patton logo, and Inalp SmartNode are trademarks of Patton Electronics Company and Inalp Networks AG. SmartWare and SmartView Management Center are trademarks of Inalp Networks AG. All other trademarks mentioned in this document are property of their respective owners.
