Web Remote Control

Remote Control

The Remote Control page displays a bitmap image of the instrument screen. The buttons on
the right of the display reflect the layout of the buttons on the instrument and are used to
access the same monitoring and control functions. See

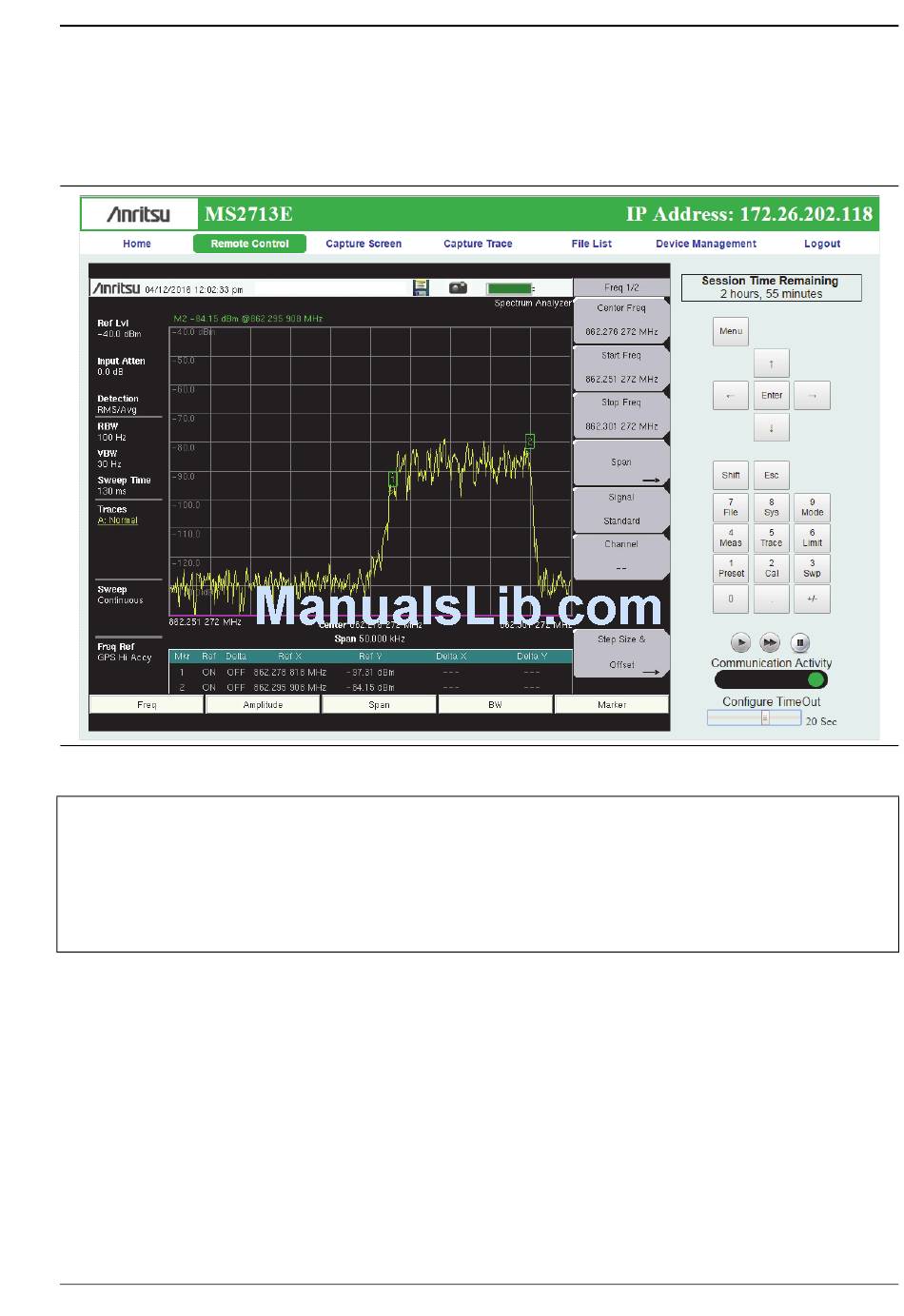

Figure 9-3. Remote Control Page
•
Notes
•
Session Time Remaining
This is the amount of time remaining before your remote session automatically terminates.
The session time is reserved at login. It can be changed on the Device Management page.
Normal Mode
Normal Mode is the default mode, where the bitmap image of the instrument screen is
continually refreshed in the browser window. Click the single arrow button near the bottom
right of the page to return to Normal Mode from either Fast or Pause Mode. Clicking any tab
on the menu bar also returns to Normal Mode.
MS2712E/13E User Guide
When clicking a key or measurement icon on the Remote Control page, a
small green dot appears at the point of the cursor to indicate that the key,
button, or icon was pressed.
A single Web-enabled device can monitor and control multiple instruments.
However, multiple Web-enabled devices with different IP addresses cannot
connect to the same instrument simultaneously.
PN: 10580-00251 Rev. T
9-3 Web Remote Control Interface
Figure 9-3.
9-5
